Product description Get full spot/flood control minus the hassle of changing lenses with the Joker2 800 Zoom Kit from K 5600 Lighting. Built around a Joker2 800W Head with an HMI lamp, this kit stars the Zoom Beamer, an optical accessory that focuses the Joker2's open face to project an even beam from 15 to 55° without any lenses. The head is powered by the included dimmable ballast. The high-speed ballast has 300 and 1000 Hz frequencies, and offers built-in wireless DMX control via LumenRadio, allowing you control by using a smartphone or tablet.
Further accessories included in the kit are a 25' head feeder extension cable, which will come in handy whenever you want to boom your Joker2 or put it in a hard-to-reach place, and a frosted glass beaker, which can be used instead of the clear glass beaker to get a nice diffused soft effect right at the source. Also provided are full double and single scrims, a four-leaf barndoor, a beaker safety wire, a scrim bag, and a carrying case. - Joker2 800W Head with Cable The Joker2 800 with Cable from K 5600 Lighting is an 800W controllable light source designed for use on film, television, and still sets. Featuring a threaded screw-on ring, the Joker2 800 allows for quick and tool-less relamping between separately available 3200K and 5600K HMI lamps. The threaded ring also allows you to mount a clear or frosted borosilicate beaker around the lens (beakers and lenses available separately). Additionally, the head incorporates a plug-in igniter designed to convert from HMI to 2K tungsten in less than a minute.
The Joker2 has an integrated three-axis yoke for flexible placement, and a braking system that ensures the system can support larger light shapers such as light banks, ellipsoid spots, and Softubes. For power, the head uses a separately available fully dimmable ballast. The ballast is high-speed with 300 and 1000 Hz frequencies, and offers built-in wireless DMX control via LumenRadio, allowing for control using a smartphone or tablet. - 800 Watt Hot Restrike HMI Lamp for Joker Bug 800 This is a K5600 800 Watt HMI Bulb. It is single ended, bi-post and hot-restrike capable. UPC: 664608239912
- 800W High-Speed Dimmable Ballast Run your Joker2 800W on this dedicated 800W High-Speed Dimmable Ballast from K 5600 Lighting. Able to work at frequencies of 300 or 1000 Hz, this ballast is designed to enable high-speed shots. It offers built-in wireless DMX via LumenRadio for control via a smartphone or tablet.
- Joker 800W Zoom Beamer The Joker 800W Zoom Beamer from K5600 Lighting is a lensless focusable reflector that can output a beam angle from 15 to 55°. It has physical similarities to a faceted umbrella with a soft finish that evenly distributes light. This model is designed for use with an 800W lamp for the most efficient performance.
- Extension Cable for Joker 200, 400, 800, Blackjack 400 - 25' The K5600 C0900U 25' Extension Cable connects the Joker 200, 400, 800 integral light head cable to a ballast. It is a VEAM type, with quarter-turn lock. The C0900U cable is also compatible with the Blackjack 400 head.
- 9" Full Double Scrim for Joker-Bug 1600W The K5600 Lighting 9" Full Double Scrim is specifically designed for use with the Joker-Bug 1600W.
- 9" Full Single Scrim for Joker-Bug 1600W The K5600 Lighting 9" Full Single Scrim is specifically designed for use with the Joker-Bug 1600W.
- 4-Leaf Barndoor For Joker 1600 Daylight Fixture The 4-Leaf Barndoor from K 5600 Lighting is designed for use with the Joker 1600 Daylight Fixture. It features a metal construction.
- Beaker - Frosted Glass for Joker-Bug 800W The Frosted Beaker is used on the Joker-Bug 800 with accessories such as lanterns where the point source is not desirable. It also helps clean up Par lens aberrations, as well as soften the harsh spot achieved without a lens.
- Beaker - Clear Glass for Joker-Bug 800W This glass filter comes standard with all Joker-Bug 800 Fixtures. Its purpose is to protect the HMI bulb.
- A1600LBZ Carrying Case The K 5600 Lighting A1600LBZ Carrying Case is an Annville type case designed for use with Alpha / Joker Zoom 1600W.
- Carrying Case for Joker 800W This is a K5600 Carry Case for Joker 800. It is an impact-resistant hard case, with interior padding and partitions for a K5600 Joker Bug 800 watt head, ballast, cables, beaker, barndoors, and bulb. The case has two wheels that come in handy when two of the same are stacked together.

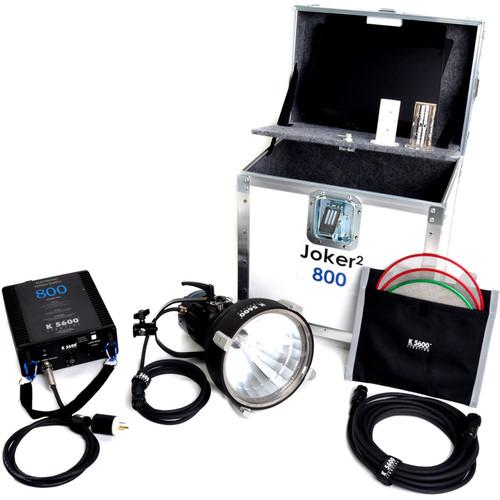

In the Box Bundle Items Joker2 800W Head with Cable fbdszyqtbzsvwzfzdqzfbc 800 Watt Hot Restrike HMI Lamp for Joker Bug 800 800W High-Speed Dimmable Ballast Joker 800W Zoom Beamer Extension Cable for Joker 200, 400, 800, Blackjack 400 - 25' - 1 Year Manufacturer's Warranty
2 x 9" Full Double Scrim for Joker-Bug 1600W 9" Full Single Scrim for Joker-Bug 1600W 4-Leaf Barndoor For Joker 1600 Daylight Fixture Beaker - Frosted Glass for Joker-Bug 800W Beaker - Clear Glass for Joker-Bug 800W A1600LBZ Carrying Case Carrying Case for Joker 800W
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the K 5600 Lighting Joker2 800 Zoom Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Joker2 800W Head with Cable
| Wattage | 800 W | | Photometrics | At 9.8' / 3 m
Without Lens: 260,000 lux
With Medium Lens: 37,600 lux
With Wide Lens: 20,500 lux
With Super-Wide Lens: 5560 lux
With Frosted Fresnel Lens: 3100 lux
At 16.4' / 5 m
Without Lens: 93,600 lux
With Medium Lens: 13,536 lux
With Wide Lens: 7380 lux
With Super-Wide Lens: 2002 lux
With Frosted Fresnel Lens: 1116 lux
At 32.8' / 10 m
Without Lens: 23,400 lux
With Medium Lens: 3384 lux
With Wide Lens: 500 lux
With Super-Wide Lens: 2002 lux
With Frosted Fresnel Lens: 279 lux
With Zoom Beamer
At 9.8' / 3 m: 25,100 lux spot, 7000 lux flood
At 16.4' / 5 m: 9036 lux spot, 250 lux flood
At 32.8' / 10 m: 2259 lux spot, 630 lux flood Lenses and beamers not included | | Connector | Veam quarter-turn quick-locking | | Cable | 9' / 2.7 m, attached to head | | Power Consumption | 3.7 A at 230 V | | Dimensions | 13.0 x 8.5" / 33.0 x 21.6 cm | | Weight | 9 lb / 4.1 kg | - 800 Watt Hot Restrike HMI Lamp for Joker Bug 800
| Code | L0800SE | | Application | Stage and studio fixtures | | Watts | 800 | | Volts | 100 | | Color Temperature | 5600°K | | Average Life Hours | ~1000 | | Approx. Lumens | 56,000 | | Base Type | G22 Medium bi-post | | Filament Type | Hot restrike | | Length | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 8.15 x 3.55 x 3.5" | - 800W High-Speed Dimmable Ballast
| Compatibility | Joker2 800W
Backward Compatible with Older 800 W Joker Fixture | | Dimming | Yes | | Wireless DMX Protocol | LumenRadio | | Operating Frequencies | 300 and 1000 Hz | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | - Joker 800W Zoom Beamer
| Interior | Silver | | Beam Angle | 15 to 60° | | | | Box Dimensions (LxWxH) | 15.1 x 14.7 x 12.9" | - Extension Cable for Joker 200, 400, 800, Blackjack 400 - 25'
| | | Connector 1 | Proprietary | | Connector 2 | Proprietary | | Cable Length | 25' / 7.6 m | | | | Box Dimensions (LxWxH) | 11.25 x 10.45 x 2.8" | - 9" Full Double Scrim for Joker-Bug 1600W
| | | Box Dimensions (LxWxH) | 9.0 x 9.0 x 0.3" | - 9" Full Single Scrim for Joker-Bug 1600W
| | | Box Dimensions (LxWxH) | 9.0 x 9.0 x 0.3" | - 4-Leaf Barndoor For Joker 1600 Daylight Fixture
| Compatible With | Joker 1600 Daylight Fixture | | Construction | Metal | | | | Box Dimensions (LxWxH) | 20.1 x 11.2 x 0.8" | - Beaker - Frosted Glass for Joker-Bug 800W
| | | Box Dimensions (LxWxH) | 5.65 x 3.1 x 2.8" | - Beaker - Clear Glass for Joker-Bug 800W
| | | Box Dimensions (LxWxH) | 6.1 x 4.15 x 3.05" | - A1600LBZ Carrying Case
| | | Exterior Dimensions (W x H x D) | 14.5 x 13.5 x 0.2" / 368.3 x 342.9 x 6.3 mm | - Carrying Case for Joker 800W
| | | Closure Type | Latch | | Material of Construction | Aluminum | | Exterior Dimensions (W x H x D) | 16.5 x 11.8 x 16.5" / 45 x 30 x 42 cm | | Weight | 19.5 lb / 8.8 kg | | | | Box Dimensions (LxWxH) | 18.3 x 17.9 x 13.1" |
