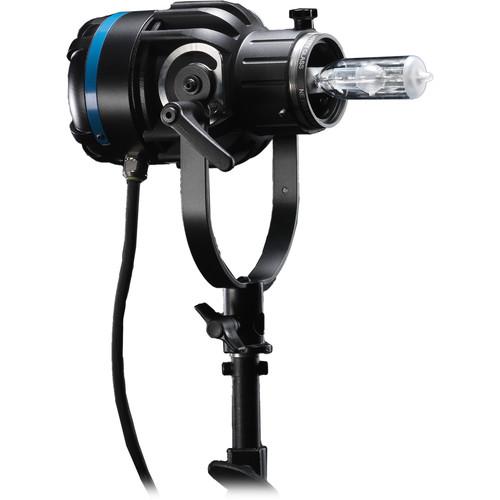

Product description The Joker2 800 with Cable from K 5600 Lighting is an 800W controllable light source designed for use on film, television, and still sets. Featuring a threaded screw-on ring, the Joker2 800 allows for quick and tool-less relamping between separately available 3200K and 5600K HMI lamps. The threaded ring also allows you to mount a clear or frosted borosilicate beaker around the lens (beakers and lenses available separately). Additionally, the head incorporates a plug-in igniter designed to convert from HMI to 2K tungsten in less than a minute.
The Joker2 has an integrated three-axis yoke for flexible placement, and a braking system that ensures the system can support larger light shapers such as light banks, ellipsoid spots, and Softubes. For power, the head uses a separately available fully dimmable ballast. The ballast is high-speed with 300 and 1000 Hz frequencies, and offers built-in wireless DMX control via LumenRadio, allowing for control using a smartphone or tablet. In the Box K 5600 Lighting Joker2 800W Head with Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K 5600 Lighting Joker2 800W Head with Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK 5600 Lighting Joker2 800 Specs | Wattage | 800 W | | Photometrics | At 9.8' / 3 m
Without Lens: 260,000 lux
With Medium Lens: 37,600 lux
With Wide Lens: 20,500 lux
With Super-Wide Lens: 5560 lux
With Frosted Fresnel Lens: 3100 lux
At 16.4' / 5 m
Without Lens: 93,600 lux
With Medium Lens: 13,536 lux
With Wide Lens: 7380 lux
With Super-Wide Lens: 2002 lux
With Frosted Fresnel Lens: 1116 lux
At 32.8' / 10 m
Without Lens: 23,400 lux
With Medium Lens: 3384 lux
With Wide Lens: 500 lux
With Super-Wide Lens: 2002 lux
With Frosted Fresnel Lens: 279 lux
With Zoom Beamer
At 9.8' / 3 m: 25,100 lux spot, 7000 lux flood
At 16.4' / 5 m: 9036 lux spot, 250 lux flood
At 32.8' / 10 m: 2259 lux spot, 630 lux flood Lenses and beamers not included | | Connector | Veam quarter-turn quick-locking | | Cable | 9' / 2.7 m, attached to head | | Power Consumption | 3.7 A at 230 V | | Dimensions | 13.0 x 8.5" / 33.0 x 21.6 cm | | Weight | 9 lb / 4.1 kg |
