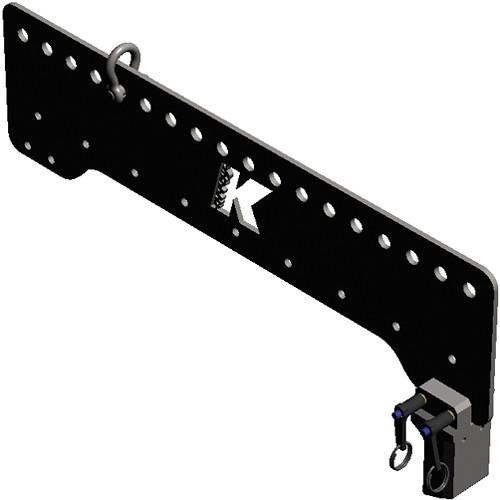

User Manual for K-Array K-FLY2 Flying Bar for Python & Kobra Series Loudspeakers Click to enlarge the picture
Contents of the user manual for the K-Array K-FLY2 Flying Bar for Python
- Product category: Speaker Stands & Mounts K-Array
- Brand: K-Array
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for K-Array Speaker Stands & Mounts
|
User manual for the K-Array K-FLY2 Flying Bar for Python contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any K-Array product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official K-Array user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a K-Array product will considerably shorten its lifespan!
|
Product description The K-Array K-FLY2 Flying Bar is specifically designed for use with the 19.6' (6.0m) Python Series and 26.2' (8.0m) Kobra Series Loudspeaker Systems. The K-FLY2 Bar is a lifting accessory that is operated for the flying of a group of loudspeakers used in events and shows. The system is made up of a lifting beam, which is hooked to a hoisting system with adequate eyebolts, in addition to a series of joints that link one speaker to the other in a line configuration while ensuring the right enclosure opening angle.
The lifting beam is made with a perforated bar to which all lifting devices are fastened and lifted from the tilt joint, which permits the fastening of the joint plates. The joint plate is a device that allows the joining of several loudspeakers together, while leaving the right enclosure opening angle and joining the entire speaker load to the lifting beam. The group is made up of 2 identical aluminum joints linked by a stainless steel piston pin with a fastening security lock of 5/16”. Additionally, 2 stainless steel piston pins with a fastening security lock of 3/16” join the central bracket to the aluminum joints. The cylindrical Allen head screws M5 x 14 fasten all the loudspeakers to the lifting beam. Note: The lifting beam includes screws, nuts, and plain washers & the joint plate includes stainless steel screws. In case of replacement only use stainless steel screws. - Complete system (beam + joint + loudspeaker) can be used both outdoors and indoors and can resist saline environments
In the Box K-Array K-FLY2 Flying Bar for Python & Kobra Series Loudspeakers Lifting Beam Joint Plate Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K-Array K-FLY2 Flying Bar for Python & Kobra Series Loudspeakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK-Array K-FLY2 Specs | Compatible With | Line-Array Element Variable Beam Speakers: KK102, KP102, KK52, KP52
High tech Ultra-Light Powered Stereo Systems: KR102, KR202, KR202US, KR402 | | Maximum Load Capacity | 176.3 lb (80.0 kg) | | Safety | System: 5 on the breaking load | | | | Package Weight | 10.582 lb | | Box Dimensions (LxWxH) | 2.638 x 1.24 x 0.551" |
