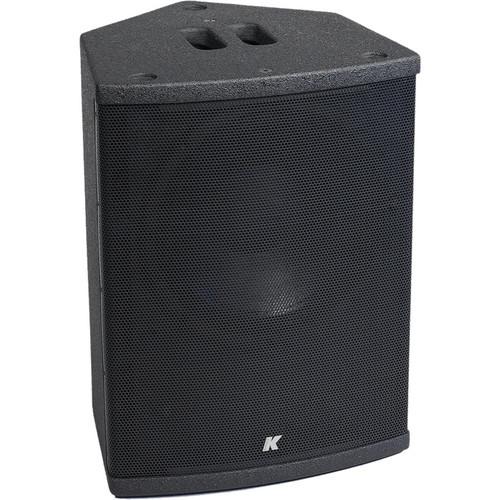

User Manual for K-Array KF12MT Full-Range Multi-Purpose Powered Speaker Click to enlarge the picture
Contents of the user manual for the K-Array KF12MT Full-Range Multi-Purpose Powered Speaker
- Product category: PA Speakers K-Array
- Brand: K-Array
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for K-Array PA Speakers
 |
User manual for the K-Array KF12MT Full-Range Multi-Purpose Powered Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any K-Array product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official K-Array user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a K-Array product will considerably shorten its lifespan!
|

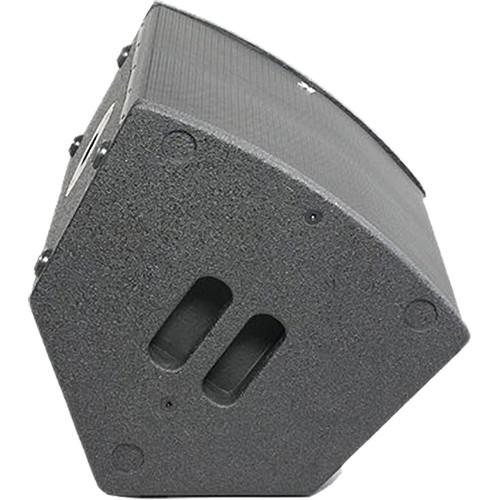

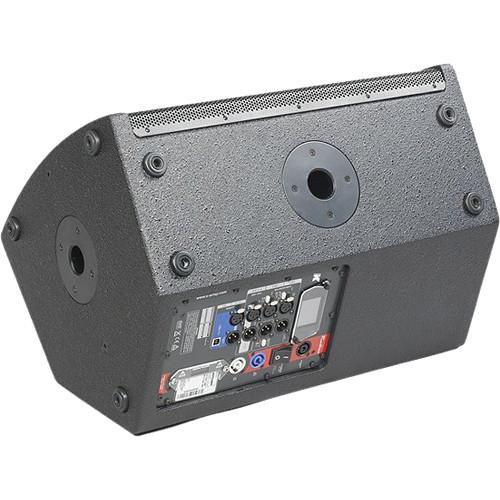

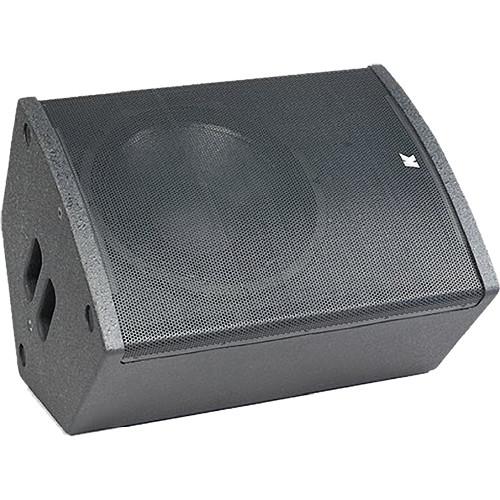

Product description The KF12MT Full-Range Multi-Purpose Powered Speaker from K-Array is a 12" coaxial full range multi-purpose powered speaker. The KF12MT's integrated on-board touch screen with matrix control provides intuitive managing and editing of powerful DSP control. Additional functionalities include: a delay up to 400ms, parametric filters for room eq, 2 analog + 2 digital inputs in AES/EBU, routing options, USB and Serial connections for remote control and a full range powered output of 1000W on 8Ω. Using one powered and one passive KF12 speaker a stereo system can be configured with 2 analog or digital fully independent inputs. It is ideally used as a stage monitor due to its wedge shape, and as a stereo system. This portable speaker is housed in a black wood chassis and black steel grill. - Unique performance-to-size ratio
- Symmetrical horizontal and vertical coverage
- Angled cabinet for floor monitor use
- Integrated 1.4" pole adapters
- Integrated DSP with multiple analog and digital inputs
- On-board touch screen with matrix control
- Configurable full range powered output
- RS485 and USB connectivity for remote control
In the Box K-Array KF12MT Full-Range Multi-Purpose Powered Speaker Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K-Array KF12MT Full-Range Multi-Purpose Powered Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK-Array KF12MT Specs | | | Speaker Power | 800 + 200 W (AES) | | Frequency Response | 55 Hz - 19 kHz | | SPL | 99 dB | | Maximum Sound Pressure Level (SPL) | 127 dB Continuous
133 dB Peak | | Transducer Type | Coaxial Transducer: 12" Neodymium magnet woofer with 3" voice coil | | Analog Audio Input | Channel 1: XLR 3-pin female balanced
Channel 2: XLR 3-pin female balanced | | Digital Audio Connectors | Channel 3-4: XLR 3-pin female balanced AES/EBU input Channel 3-4: XLR 3-pin male balanced AES/EBU output DSP output: XLR 3-pin male | | Parallel Output | XLR 3-pin male | | Coverage | Horizontal: 70°
Vertical: 70° | | | | Remote Control Input | 1 x 3-pin XLR male RS485
1 x 3-pin XLR female RS485 parallel (link to XLR male)
1 x USB B Jack serial converter | | Power Input | 2 x PowerCon IN/OUT connector | | Power Output | 1 x Female 4-pin Speakon connector
2 X 1050 W @ 8Ω Ω 1% THD + NOISE | | | | Type | 1 module class D - DSP controlled | | Protection | Dynamic Limiter, Over Current, Over Temp. Short Circuit | | Frequency Response | 10 Hz - 25 KHz (+/- 3 dB) for 1 W @ 8 Ω | | Damping Factor | 8 Ω 100 Hz is > 500 | | THD + N | 1 kHz, 1 W: 0.010% | | Thermal Dissipation | 1/8 of max output power @ 8 Ω = 282 BTU/h (71KCal/h)
1/4 of max output power @ 8 Ω = 464 BTU/h (117KCal/h) | | | | Voltage | 115 / 230 VAC auto switching | | Operating Range | 85 to 130 VAC 60 Hz / 190 - 240 VAC 50 Hz (Auto Switch) | | Nominal Input | 5.5 A / 115 VAC - 2.9 A / 230 VAC | | | | Efficiency | >80% (typical) | | Pink Noise Type | 1/8 rated power @ 4 Ω : 410 W | | | | Dimensions (H x W x D) | 15.4 x 20.6 x 14.4" (39.0 x 52.2 x 36.5 cm) | | Weight | 41.5 lb (18.8 kg) | | | | Package Weight | 22.4 lb | | Box Dimensions (LxWxH) | 1.634 x 1.575 x 1.535" |
