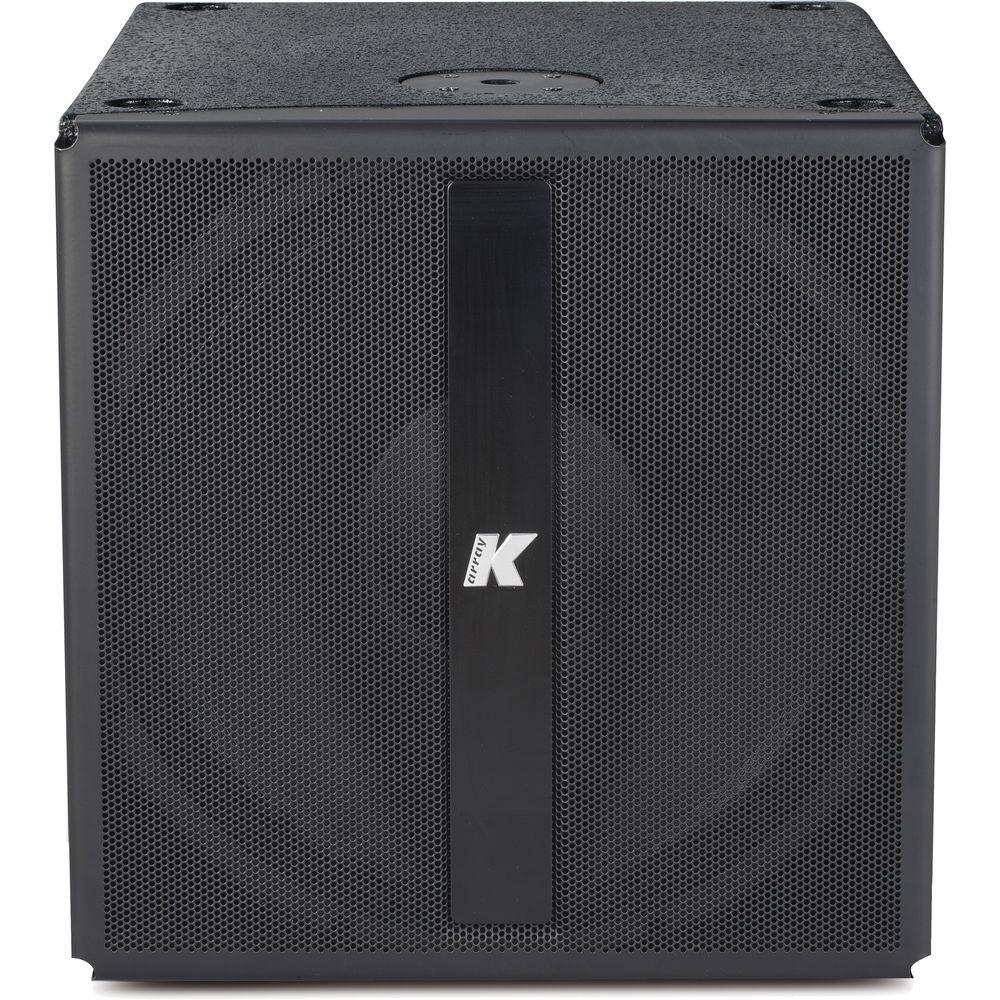

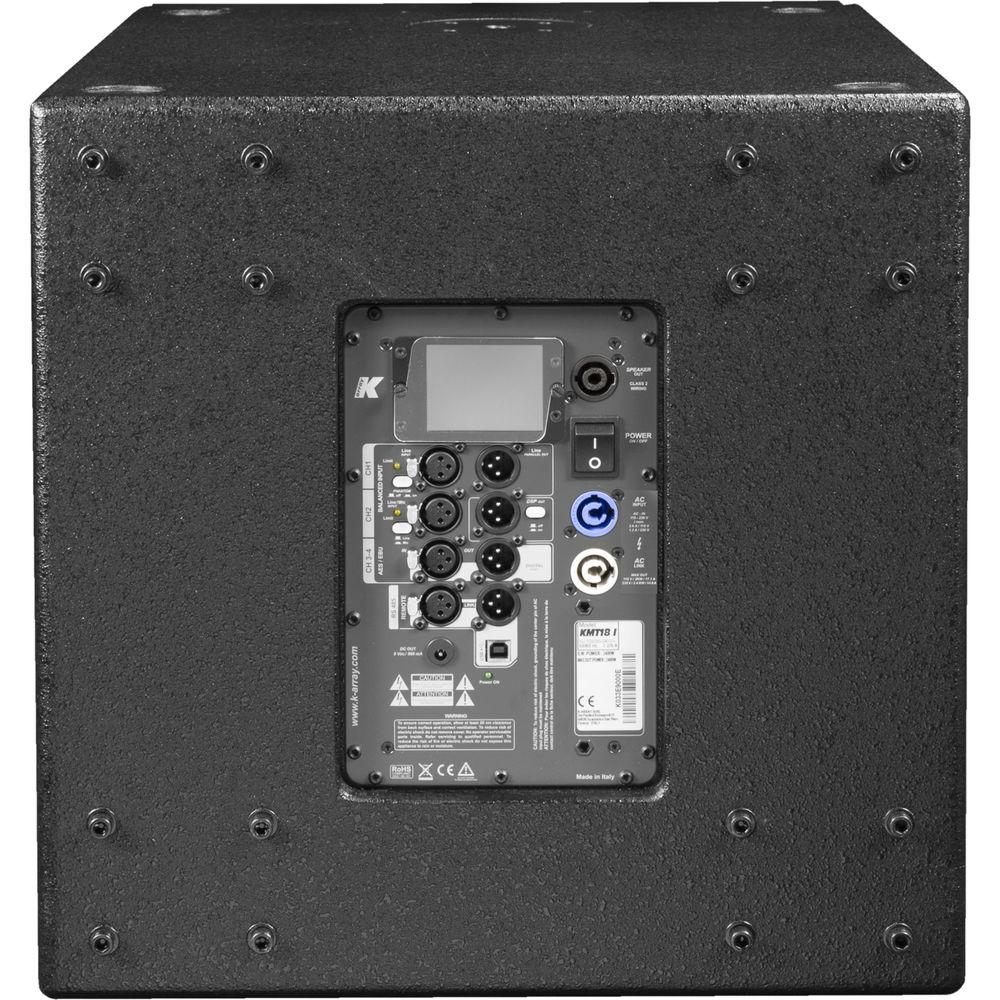

Product description The KMT18 Mark I 1400W Powered Subwoofer with DSP from K-array is a complete audio system, featuring an 18” powered subwoofer, programmable on-board DSP, and multiple analog and digital inputs & outputs for creating a broad range of speaker configurations. Equipped with a codec that lowers the signal/noise ratio, the KMT18 Mark I Subwoofer comes with a 5 VDC power connector on the rear panel, and enhanced functionality for creating presets. The output AES/EBU is latency-free (thru).The KMT18 Mark I Subwoofer features an integrated touchscreen that provides intuitive control over the main DSP functions including input/output levels, signal routing, offset delays for subwoofer and speaker output (up to 10 ms, each) and overall system delay (up to 330 ms). All DSP functions, including EQ, can also be remote controlled via software over USB or RS485 (3-pin XLR).The subwoofer further provides two balanced analog line-level inputs and a two-channel AES/EBU digital input. An integrated Class-D amplifier delivers 2 x 1000W at 8 ohms, with a max THD of 1% (EIAJ test @ 1 kHz). The rear panel features multiple analog and digital outputs, including a Speakon output to connect a wide array of passive speakers including Kobra & Pyton mid-high modules or KMT18P additional passive subwoofers (sold separately). To optimize performance, the on-board DSP includes presets to drive K-array speakers.The KMT18 Mark I Subwoofer’s four-corner port configuration provides symmetrical back-loading to the speakers, for extended bass response with low distortion. The port configuration also provides incredible structural strength to the cabinet, despite its light weight. Pocket handles and an M20 thread-mount position for attaching mid-high speakers makes it convenient to use and ideal for medium-throw applications in theaters, concert halls, and audio/video installations. - General
-
- Compact size, yet strong performance
- Direct-radiating, long-excursion driver
- Fast setup and dismantling system
- Fitted with integrated handles and casters
- Analog and digital AES/EBU inputs
- Remote software control over USB and RS485
- Designed for use with the KP52/KP102 and KMT18P Subwoofer
- Applications
-
- Theatrical sound reinforcement
- Concert halls, clubs, houses of worship
- Portable and installed audio-visual systems
- Cinema and special effects
In the Box K-Array KMT18 Mark I 18" 1400W Powered Subwoofer with DSP Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K-Array KMT18 Mark I 18" 1400W Powered Subwoofer with DSP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK-Array KMT18 I Specs | | | Power Handling | 800 W | | Maximum Power | 1400 W | | Impedance | 8 ohms | | Frequency Range | 35 Hz to 150 Hz | | SPL | 1 W : 98 dB
Maximum: 127 dB (cont.) to 133 dB (peak) | | | | Type | 1 module class D - DSP controlled | | Subwoofer Power Output | 1000 W @ 8 ohms, 1% THD + NOISE | | Speaker Power | Output: 1000 W @ 8 ohms, 1% THD + NOISE | | Protections | Over Temperature (Power Limiting - Thermal Shutdown), Short Circuit/Overload Output Protection, Power Limiting, Clip Limiter/Permanent Signal Limiter, High-Frequency Protection | | Frequency Response | 20 Hz to 20 kHz (+0 -1 dB) for 1 W @ 8 ohms | | | | Horizontal/Vertical | Omnidirectional | | | | Type | Internal DSP controlled | | Frequency | Low pass @ 150 Hz (maximum - preset dependent) | | | | Type | 1 X 18" (46 cm) Neodymium magnet woofer with 3" (7.6 cm) voice coil | | | | Connectors | Analog: 2 male + 2 female 3-pin balanced XLR
Digital: 1 male + 1 female 3-pin balanced XLR | | | | Connectors | 1 male + 1 female XLR parallel 1 USB B Jack serial converter | | | | Power Input | 100 to 240 VAC at 50 to 60 Hz | | Operating Range | 85 to 265 VAC (auto-range) | | Power Factor | >0.90 @ 4 ohms full power | | Consumption | 1/8 rated power @ 4 ohms: 300 W | | | | IP | 20 (53 with K-AMPCOVER accessory) | | | | Dimensions | 18.3 x 18.3 x 23.3" (46.5 x 46.5 x 59.2 cm) | | Weight | 60.8 lb (27.6 kg) |
