User Manual for K-Array KMT21 Mark I 21" 1600W Powered Subwoofer with DSP Click to enlarge the picture
Contents of the user manual for the K-Array KMT21 Mark I 21" 1600W
- Product category: PA Speakers K-Array
- Brand: K-Array
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for K-Array PA Speakers
 |
User manual for the K-Array KMT21 Mark I 21" 1600W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any K-Array product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official K-Array user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a K-Array product will considerably shorten its lifespan!
|

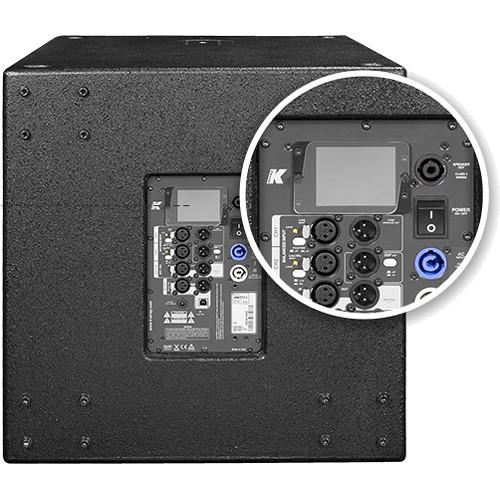

Product description The KMT21 Mark I 1600W Powered Subwoofer with DSP from K-array is a complete audio system, featuring a 21” powered subwoofer, programmable on-board DSP, and multiple analog and digital inputs & outputs for creating a broad range of speaker configurations. Equipped with a codec that lowers the signal/noise ratio, the KMT21 Mark I Subwoofer comes with a 5 VDC power connector on the rear panel, and enhanced functionality for creating presets. The AES/EBU output is latency-free (thru).The KMT21 Mark I Subwoofer features an integrated touchscreen that provides intuitive control over the main DSP functions including input/output levels, signal routing, offset delays for subwoofer and speaker output (up to 10 ms, each) and overall system delay (up to 330 ms). All DSP functions, including EQ, can also be remote controlled via software over USB or RS485 (3-pin XLR).The subwoofer further provides two balanced analog line-level inputs and a two-channel AES/EBU digital input. An integrated Class-D amplifier delivers 2 x 2400W at 4 ohms, with a max THD of 1% (EIAJ test @ 1 kHz). The rear panel features multiple analog and digital outputs, including a Speakon output to connect a wide array of passive speakers including Kobra & Python mid-high modules or KMT21P additional passive subwoofers (sold separately). To optimize performance, the on-board DSP includes presets to drive K-array speakers.The KMT21 Mark I Subwoofer’s four-corner port configuration provides symmetrical back-loading to the speakers for extended bass response with low distortion. The port configuration also provides incredible structural strength to the cabinet, despite its light weight. Pocket handles and an M20 thread-mount position for attaching mid-high speakers makes it convenient to use and ideal for medium-throw applications in theaters, concert halls, and audio/video installations. - General
-
- Compact size, yet strong performance
- Direct-radiating, long-excursion driver
- Fast setup and dismantling system

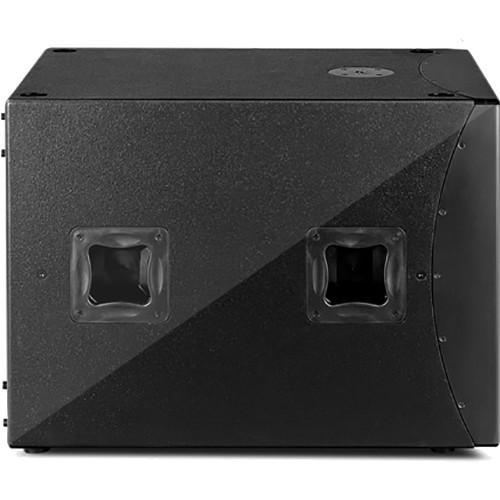

- Fitted with integrated handles and casters
- Analog and digital AES/EBU inputs
- Remote software control over USB and RS485
- Designed for use with the KP52/KP102 and KMT21P Subwoofer
- Applications
-
- Theatrical sound reinforcement
- Concert halls, clubs, houses of worship
- Portable and installed audio-visual systems
- Cinema and special effects
In the Box K-Array KMT21 Mark I 21" 1600W Powered Subwoofer with DSP Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K-Array KMT21 Mark I 21" 1600W Powered Subwoofer with DSP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK-Array KMT21 I Specs | | | Power Handling | 1600 W | | Maximum Power | 2800 W | | Impedance | 4 ohms | | Frequency Range | 30 Hz to 150 Hz | | SPL | 1 W : 102 dB
Maximum: 130 dB (continuous) to 136 dB (peak) | | | | Type | 1 module class D - DSP controlled | | Subwoofer Power Output | 2400 W @ 8 ohms 1% THD + NOISE | | Speaker Power | Output: 2400 W @ 8 ohms 1% THD + NOISE | | Protections | Over Temperature (Power Limiting - Thermal Shutdown), Short Circuit/Overload Output Protection, Power Limiting, Clip Limiter/Permanent Signal Limiter, High Frequency Protection | | Frequency Response | 20 Hz to 20 kHz (+0 -1 dB) for 1 W @ 8 ohms | | | | Horizontal/Vertical | Omnidirectional | | | | Type | Internal DSP controlled | | Frequency | Low pass @ 150 Hz (maximum - preset dependent) | | | | Type | 1 X 21" (53 cm) Neodymium magnet woofer with 4" (10 cm) voice coil | | | | Connectors | Analog: 2 male + 2 female 3-pin balanced XLR
Digital: 1 male + 1 female 3-pin balanced XLR | | | | Connectors | 1 male + 1 female XLR parallel 1 USB B Jack serial converter | | | | Power Input | 100 to 240 VAC at 50 to 60 Hz | | Operating Range | 85 to 265 VAC (auto-range) | | Power Factor | >0.90 @ 4 ohms full power | | Consumption | 1/8 rated power @ 4 ohms: 600 W | | | | IP | 20 (53 with K-AMPCOVER accessory) | | | | Dimensions | 22 x 22 x 30" (56 x 56 x 76 cm) | | Weight | 108 lb (49 kg) |
