User Manual for K-Array KR802 High-Performance, Self-Powered Stereo System Click to enlarge the picture
Contents of the user manual for the K-Array KR802 High-Performance, Self-Powered Stereo System
- Product category: PA Speakers K-Array
- Brand: K-Array
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for K-Array PA Speakers
 |
User manual for the K-Array KR802 High-Performance, Self-Powered Stereo System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any K-Array product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official K-Array user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a K-Array product will considerably shorten its lifespan!
|

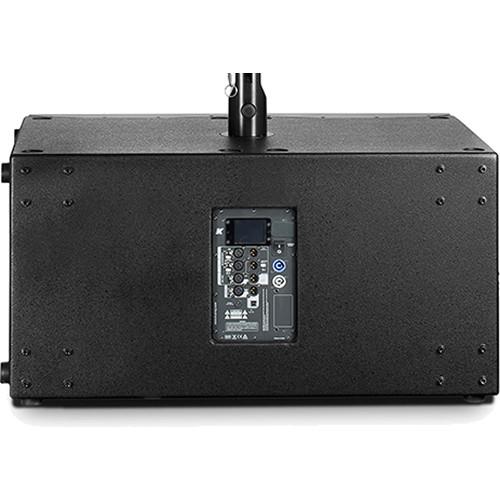

Product description The KR802 High-Performance, Self-Powered Stereo System from K-array features a pair of KMT218 dual-18” subwoofers, each with 2 channels of 2500W matched to two KY102 Beam Speakers with 4" neodymium speaker elements. It also feature two channels of Class-D amplification housed in the subwoofer. The rear panel provides input for a balanced line signal, a balanced microphone signal with phantom power and digital signals in AES/EBU protocol, also on an XLR for ease of cabling. All DSP functions, including EQ, can be controlled with remote-managing software via USB or RS485, again conveniently on a standard XLR. - High power 135 dB continuous, 142 dB peak
- Two channels of Class-D amplification, input for 2 balanced line signals and digital signals in AES/EBU protocol
- In/Out routing subwoofer delay of up to 12 ms, speakon output to the Mid-Hi elements with delay up to 12 ms, and overall system delay of up 330 ms
- All DSP including EQ can be controlled with remote-managing software via USB or RS485 conveniently on a standard XLR
- Integrated touchscreen provides intuitive managing and editing of powerful DSP controlling
- Fitted with integral handles
- Line-array emission wavefront
- DSP onboard with dedicated presets
- Ultra-fast setup and dismantling system
In the Box K-Array KR802 High-Performance, Self-Powered Stereo System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K-Array KR802 High-Performance, Self-Powered Stereo System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK-Array KR802 Specs | | | Power Handling | 1200 W | | Impedance | 8 to 32 ohms (selectable) | | Frequency Range | 90 Hz to 20 KHz (-3 dB) | | Maximum SPL | 132 dB continuous, 138 dB peak | | Coverage | Horizontal: 90°
Vertical: 7 to 30° (Selectable) | | Crossover Type | External Crossover required | | Crossover Frequency | High pass @ 90 Hz, 24 dB/oct suggested minimum | | Transducer | 8 x 4" (10 cm) Neodymium magnet with 1.5" (3.8 cm) voice coil (full range) | | Audio Connectors | 2 x 4-pin Speakon | | Wiring | 1+1- (signal IN & LINK); 2+2- (through) | | Switch | Verical: Spot - Flood
Impedance: 8 to 32 ohms (selectable) | | Dimensions | 4.5 x 39 x 5.2" (11.3 x 100 x 13.2 cm) | | Weight | 14.5 Kg (28.45 lbs) | | | | Power Handling | 1600 W | | Frequency Range | 30 to 150 Hz +/- 3 dB (preset dependent) | | Maximum SPL | 134 dB continuous, 140 dB peak | | Coverage | Omnidirectional | | Crossover Type | DSP controlled | | Crossover Frequency | 150 Hz minimum (preset dependent) | | Transducer | 2 x 18" (16 cm) Neodymium speakers with 3" (8 cm) voice coil (full range) | | Amplifier Type | 1 module class D - DSP controlled | | Amplifier Power | 2 x 2500 W @ 4 ohms | | Protection | Dynamic limiter, over current, over temp and short circuits | | Dimensions | 38 x 20 x 24" (95.3 x 48 x 60 cm) | | Weight | 101 lb (46 kg) |
