User Manual for K-Array KRX202 Small-Format, Multi-Use Powered System w 12" Coaxial Speakers Click to enlarge the picture
Contents of the user manual for the K-Array KRX202 Small-Format, Multi-Use Powered System
- Product category: PA Speakers K-Array
- Brand: K-Array
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for K-Array PA Speakers
 |
User manual for the K-Array KRX202 Small-Format, Multi-Use Powered System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any K-Array product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official K-Array user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a K-Array product will considerably shorten its lifespan!
|

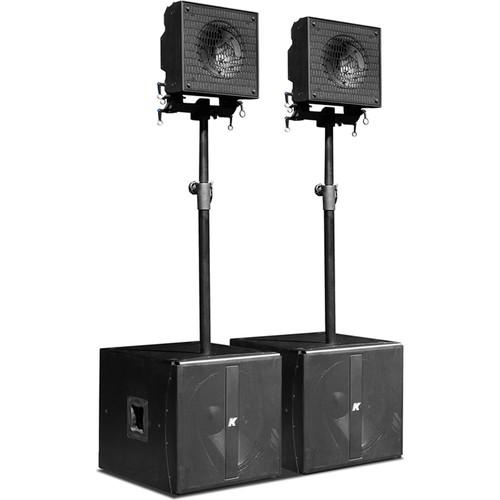

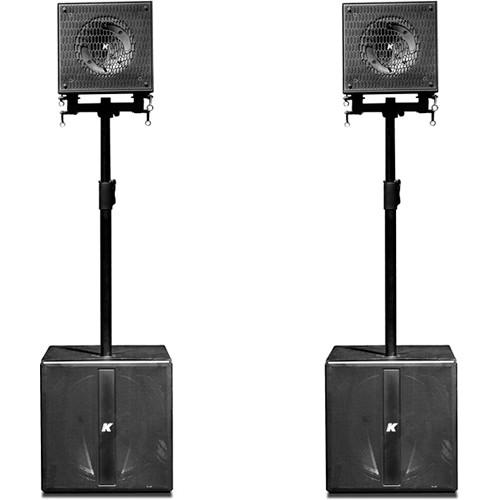

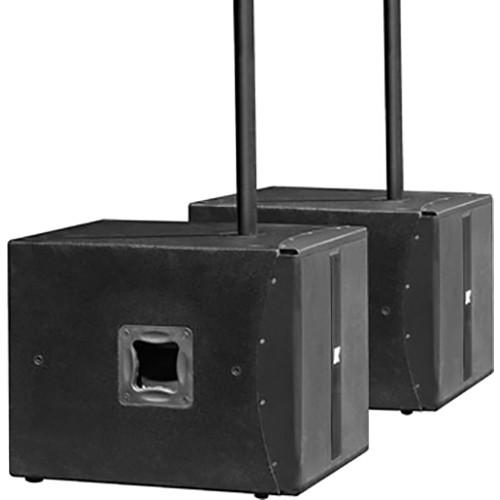

Product description The KRX202 Small-Format, Multi-Use Powered System with 12” Coaxial Speakers from K-array is composed of two KX12 speakers coupled with a pair of KMT18 18” subwoofers, and includes an extendable pole and proper joining and stacking hardware. It delivers a maximum SPL of 133 dB, low frequency and remarkable bass response. Easily adjustable fixed angles and modular capabilities allow for various arrangements of system setup. Using the included hardware, you can stack or fly the speaker array. - General
-
- High-performance with compact size
- Asymmetrical horizontal and vertical coverage
- 3.2” LCD touchscreen
- Variable-angle array design
- USB connector for remote control
- Analog & digital signal AES/EBU protocol
- Stainless-steel chassis
- Electronically protected
- Applications
-
- Clubs, DJ sets, and lounges
- Portable and installed AV systems
- Portable live sound
In the Box K-Array KRX202 Small-Format, Multi-Use Powered System w/ 12" Coaxial Speakers 2 x KX12 Compact Coaxial 12" Line-Array Speaker Element (Black) 2 x KMT18 18" Subwoofer Extendable Pole Stacking Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K-Array KRX202 Small-Format, Multi-Use Powered System w 12" Coaxial Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK-Array KRX202 Specs | | | Power Handling | 800 + 200 W | | Maximum Power | 1200 W | | Frequency Range | 120 Hz to 19 kHz | | Impedance | 8 ohms | | SPL | 102 dB (1 W/1 m)
127 dB (cont.) to 133 dB (peak) maximum | | | | Horizontal | 100/30° (depending on horn orientation) | | Vertical | 30/100° (depending on horn orientation) | | | | Type | External Crossover required | | Frequency | High pass @ 120 Hz, 24 dB/oct suggested minimum | | | | Coaxial | 12" Neodynium magnet woofer with 3" voice coil
Neodymium magnet compression driver with 2" voice coil | | | | Connector | 2 x 4-pin Speakon | | Wiring | 1+ 1- (Signal IN & LINK) 2+ 2- (Through) | | Compatible | KMT18, KMT21, KMT218, KA84 Amplifiers | | | | Dimensions | 13.4 x 12.6 x 7.9" (34.0 cm x 32.0 cm x 20.0 cm) | | Weight | 26.9 lb (12.2 kg) | | | | Power Handling | 800 W | | Frequency Range | 35 - 150 Hz. +/- 3 dB (preset-dependent) | | Maximum SPL | 127 dB continuous, 133 dB peak | | Coverage | Omnidirectional | | Crossover | Type: DSP-controlled
Frequency: 150 Hz minimum (preset dependent) | | Transducer | 1 x 18" (46 cm) Neodymium magnet woofer with 3" (8 cm) voice coil | | Amplifier | Type: 1 x module class D - DSP controlled
Power: 2 x 1000 W @ 8 ohms
Protection: Dynamic limiter, over current, over temp and short circuits | | | | Dimensions | 18.3 x 18.3 x 23.3" (46.5 x 46.5 x 59.2 cm) | | Weight | 60.8 lb (27.6 kg) |
