User Manual for K&M 24486 Speaker Ceiling Mount with Adapter Panel for Genelec 8000 Series Click to enlarge the picture
Contents of the user manual for the K&M 24486 Speaker Ceiling Mount with
- Product category: Speaker Stands & Mounts K&M
- Brand: K&M
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for K&M Speaker Stands & Mounts
 |
User manual for the K&M 24486 Speaker Ceiling Mount with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any K&M product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official K&M user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a K&M product will considerably shorten its lifespan!
|

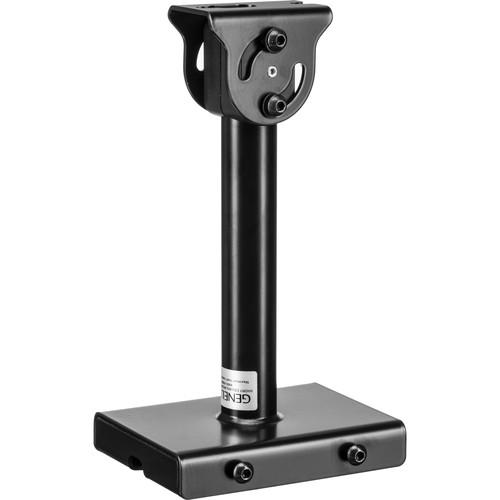

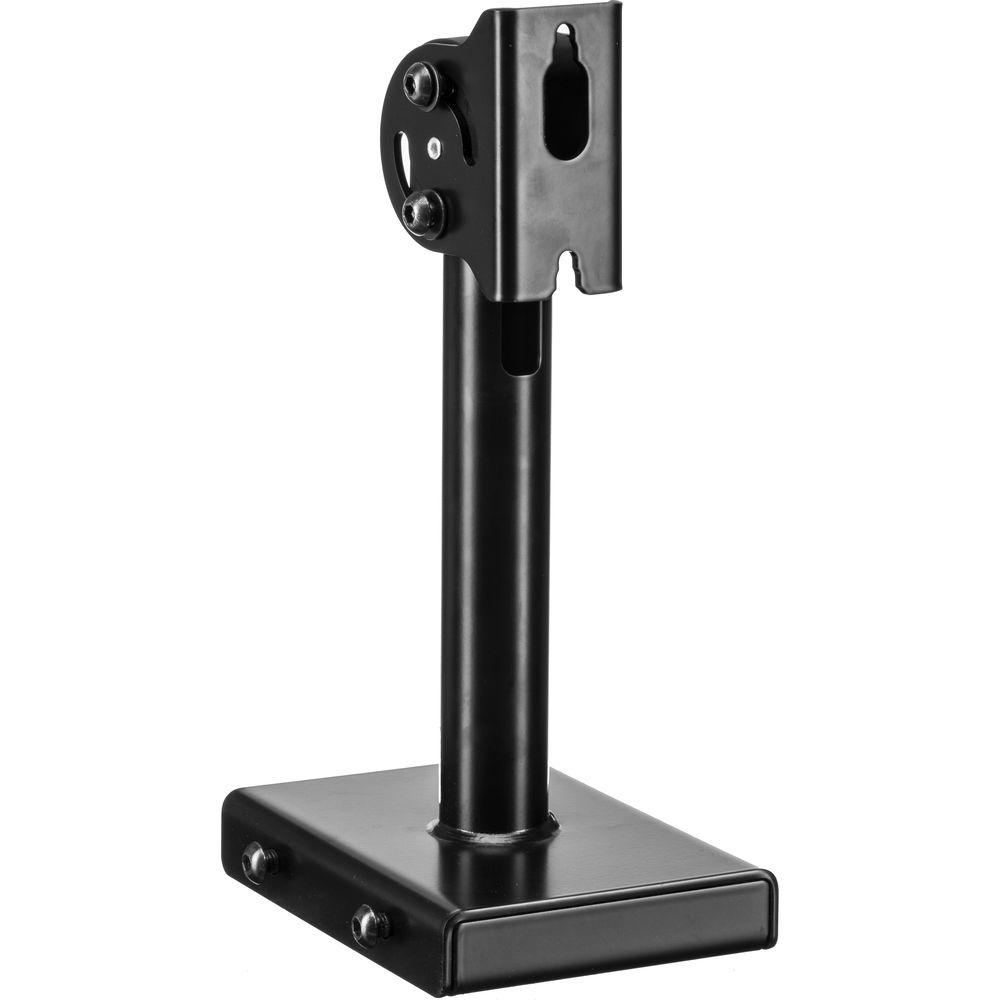

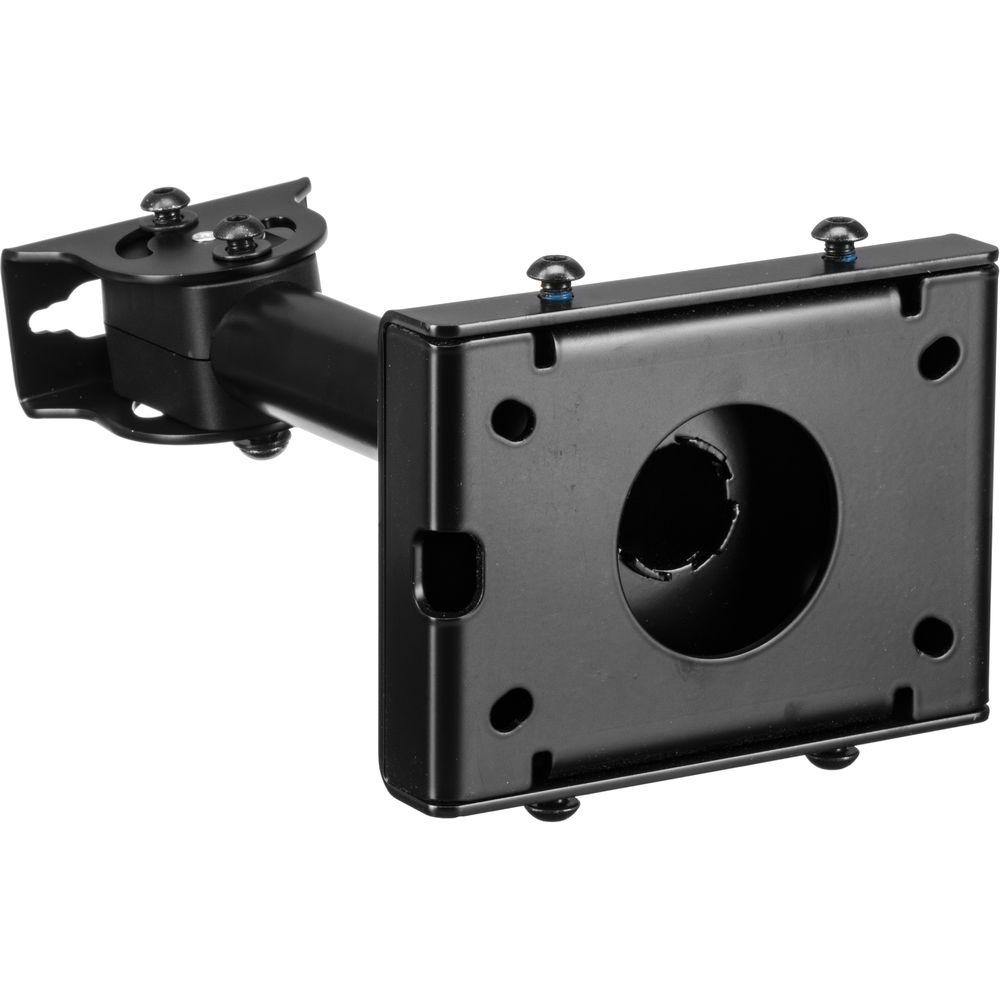

Product description The black 24486 Speaker Ceiling Mount with Adapter Panel from K&M offers a secure and versatile solution for mounting Genelec 8000 series speakers on a ceiling. It comes with a robust ceiling plate, a clamping bracket for speakers with a vertical mounting template, and an adapter panel that safely holds the speaker in place.The 24486 ceiling mount positions the speaker at 9.84" from the ceiling. It provides a 90° swivel area and a tilt angle from 0 to 45°. An internal cable management system allows you to choose between surface- or flush-mounted cable installation. -
- Ceiling mounting system, with adapter panel for Genelec 8000 series speakers
- Robust ceiling plate
- Secure mounting
- Speaker distance from ceiling: 9.84"
- Internal cable management allows for surface- or flush-mounted cable installation
- Swivels area: 90° (± 45°)
- Tilt angle: 0 to 45 °
- 55 lb maximum load
- Made in Germany
In the Box K&M 24486 Speaker Ceiling Mount with Adapter Panel for Genelec 8000 Series (Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the K&M 24486 Speaker Ceiling Mount with Adapter Panel for Genelec 8000 Series in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersK&M 24486-000-55 Specs | | | Adjustment | Stepless | | Tilt Angle | 0 to 45° | | Swivel Angle | 90° (± 45°) | | Bearing Plate Dimensions | 3.54 x 1.85" / 89.91 x 46.99 mm | | Ceiling Clearance | 9.84" / 249.93 mm | | Ceiling Mounting Plate | 6.29 x 4.64" / 159.76 x 117.85 mm | | Spacing of Holes | From 2.75" / 69.85 mm to 3.0" / 76.2 mm | | Load Capacity | 55 lb / 25 kg (maximum) | | Material | Steel | | Weight | 3.94 lb / 1.78 kg | | | | Bearing Plate Dimensions | 3.54 x 3.93" / 89.91 x 99.82 mm | | Mounting Template | 2.75 to 3.0" / 69.85 to 76.20 mm (M6) | | Material | Steel | | Weight | 0.33 lb / 0.14 kg | | | | Package Weight | 5.95 lb | | Box Dimensions (LxWxH) | 14.0 x 9.0 x 7.0" |
