User Manual for K-Tek Airo Booming Intro Kit 1 Click to enlarge the picture
Contents of the user manual for the K-Tek Airo Booming Intro Kit 1
- Product category: Boompoles & Fishpoles K-Tek
- Brand: K-Tek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for K-Tek Boompoles & Fishpoles
 |
User manual for the K-Tek Airo Booming Intro Kit 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any K-Tek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official K-Tek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a K-Tek product will considerably shorten its lifespan!
|
Product description The K-Tek Airo Booming Intro Kit 1 combines a boompole, shockmount, XLR cable, fuzzy windscreen, and a padded kit bag to create the primary components of a professional audio recording setup for location or studio applications. Simply add a shotgun microphone and you'll be capturing content in no time. - ABP1 Aluminum Boompole 1 (Uncabled) The uncabled ABP1 Aluminum Boompole 1 from Airo by K-Tek is a lightweight, four-section telescopic boompole that can be used for ENG, EFT, and other field recording applications. It features a collapsed length of 3.2' and an extended length of 10.8'.Other features include: a non-rotational tube set, rubber collar grips, a removable 3/8"-16 thread top attachment, and a removable anodized aluminum base. The uncabled ABP1 boompole weighs only 1.6 pounds, and easily collapses to store in any standard equipment case.
- Four-section telescopic boompole
- Anodized aluminum construction
- Top attachment: 3/8"-16 male thread (removable)
- Bottom attachment: Anodized, aluminum base (removable)

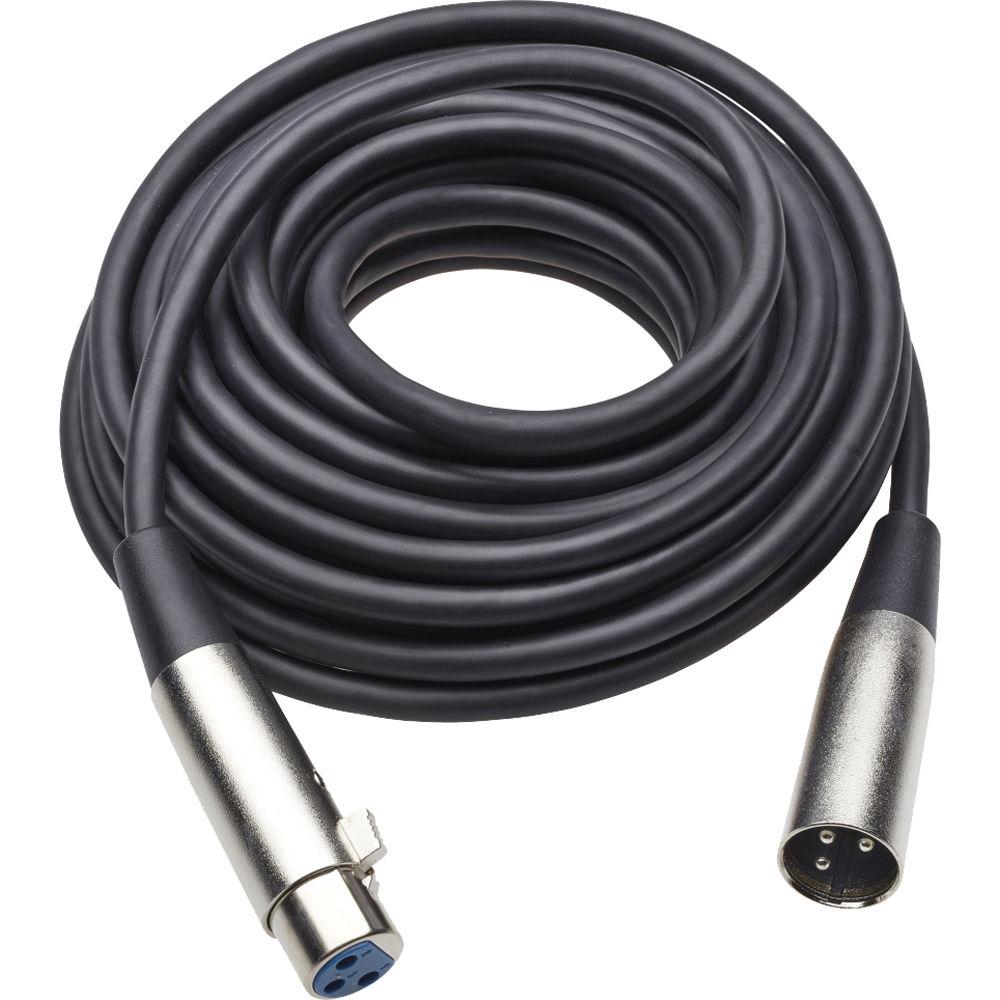

UPC: 649906207757 - AXC25 XLR Microphone Cable (25') The 25' AXC25 XLR Microphone Cable from Airo by K-Tek is designed for use with boompoles and microphone products. It has a 3-pin straight male XLR on one end and a 3-pin straight female XLR on the other end. UPC: 649906207726

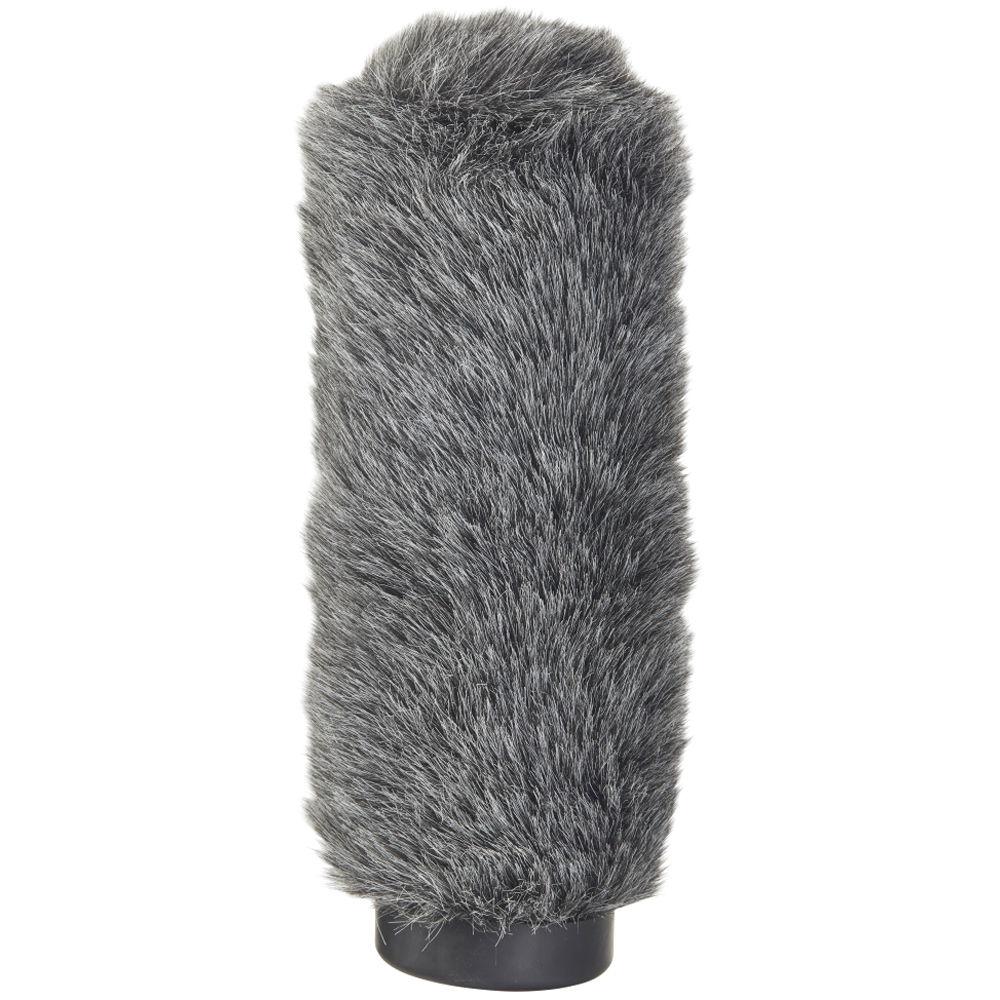

- Airo Fuzzy Windscreen 1 The K-Tek Airo Fuzzy Windscreen 1 is designed to mitigate wind noise while recording on location. The windscreen uses open-cell foam and is covered by faux fur, which is made from natural-looking black and gray medium length fibers. The seamless front panel ensures optimal recording performance. The Airo Fuzzy Windscreen 1 fits most common shotgun microphones, such as the Rode NTG Series or Aputure Deity range. This windscreen can also accommodate microphones up to 0.89″ in diameter and has an internal length of 8.7″. Additionally, the internal length allows for most common microphones to be covered in a way that leaves an open "bubble" between the tip of the microphone and the fuzzy windscreen for clearer sound capture.
- Compatible With
-
- Aputure Deity
- DPA 4017
- Neumann KMR81
- Rode NTG1
- Rode NTG2
- Rode NTG3
- Rode NTG4+
- Sanken CS1e
- Sanken CS3e
- Schoeps CMC641
- Schoeps CMIT5u
- Schoeps SuperCMIT 5u
- Sennheiser ME66/K6
- Sennheiser MKH416
- Sennheiser MKH8060

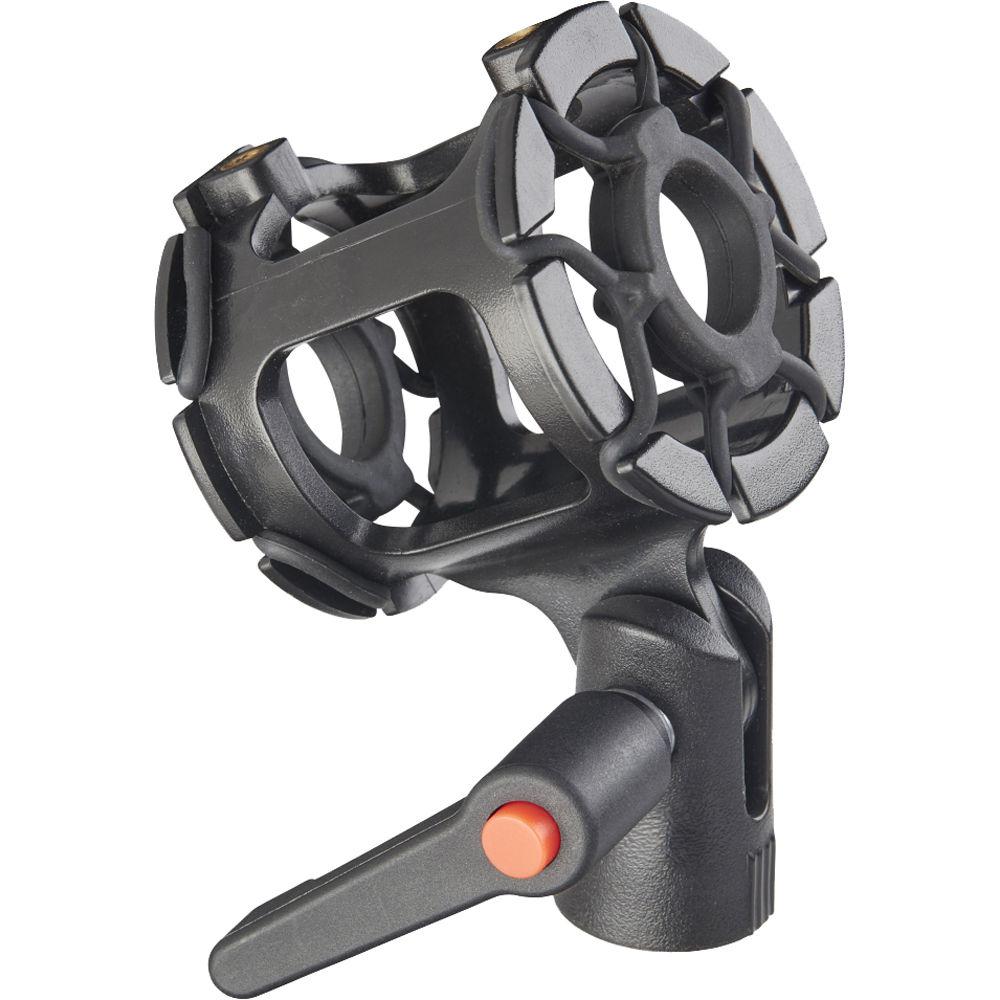

UPC: 649906207696 - ASM1 Shockmount 1 The ASM1 Shockmount 1 from Airo by K-Tek is a rugged shockmount designed for boompoles and mic stands. It can be used to securely isolate a shotgun microphone from swinging and eliminate handling noise in ENG, EFP, and other field recording applications. The shockmount features two molded rubber suspenders. In addition, a threaded adapter is included to accommodate 5/8" mic stands. UPC: 649906207740

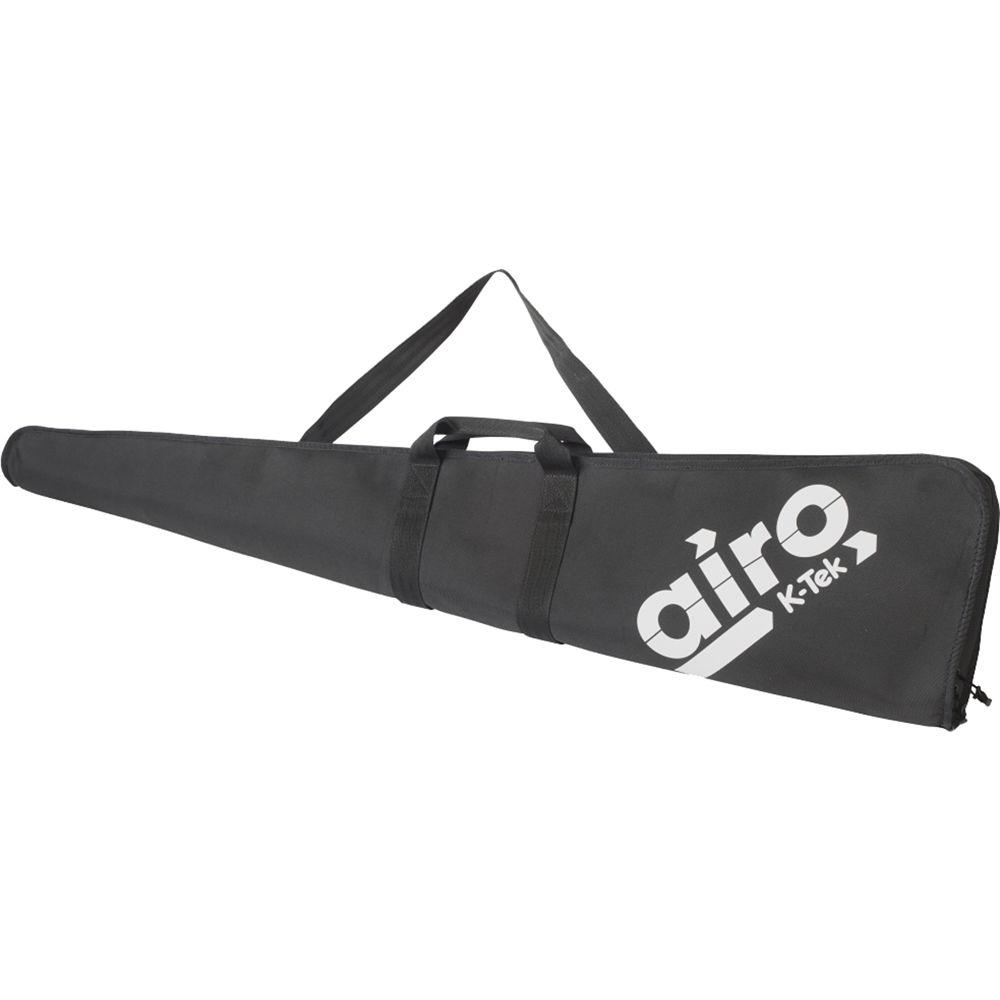

- AKB1 Kit Bag 1 (Black) The black AKB1 Kit Bag 1 from Airo by K-Tek is a triangular-shaped boompole bag with room to transport a shockmount, windscreen, cables, and other audio accessories. It features a shoulder strap and a large zippered opening at the top, and is built with 600D polyester material, which is padded with an easy-view, gray interior. Measuring 46.5 x 9.9 x 3.2", the AKB1 Kit Bag's dimensions are large enough to transport your ENG, EFP and other field recording or application accessories. UPC: 649906207672
In the Box Bundle Items ABP1 Aluminum Boompole 1 (Uncabled) ebausquryasqtruysxcubzbswsraewutcrrx AXC25 XLR Microphone Cable (25') Airo Fuzzy Windscreen 1 ASM1 Shockmount 1 AKB1 Kit Bag 1 (Black) Table of Contents
|
Upload User Manual
Have you got an user manual for the K-Tek Airo Booming Intro Kit 1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - ABP1 Aluminum Boompole 1 (Uncabled)
| Material of Construction | Aluminum | | Sections | 4, telescopic | | Length | 3.2 to 10.8' (98 to 330 cm) | | Weight | 1.62 lb (735 g) | | | | Box Dimensions (LxWxH) | 41.6 x 3.3 x 3.3" | - AXC25 XLR Microphone Cable (25')
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 25' / 7.62 m | | | | Box Dimensions (LxWxH) | 5.0 x 4.4 x 2.0" | - Airo Fuzzy Windscreen 1
| Compatible Mic Diameter | 0.7 to 0.89" / 18 to 22.5 mm | | Inner Depth | 8.7" / 22.1 cm | | Material | Faux Fur | | Length | 9.8" / 24.9 cm | | Weight | 1.9 oz / 53.9 g | | | | Box Dimensions (LxWxH) | 10.0 x 3.2 x 2.4" | - ASM1 Shockmount 1
| External Dimensions | 2.5" (6.3 cm) | | Compatibility Models | Rode NTG mics | | Weight | 2.6 oz (73 g) | | | | Box Dimensions (LxWxH) | 4.8 x 3.9 x 1.7" | - AKB1 Kit Bag 1 (Black)
| Material of Construction | 600D polyester | | Carrying Options | Dual handles
Shoulder strap | | External Dimensions (L x W x D) | 47.3 x 10.6 x 4.3" (120 x 27 x 11 cm) | | Internal Dimensions (L x W x D) | 46.5 x 9.9 x 3.2" (118 x 25 x 8 cm) | | Weight | 1.17 lb (533 g) | | | | Box Dimensions (LxWxH) | 17.0 x 6.4 x 3.9" |
