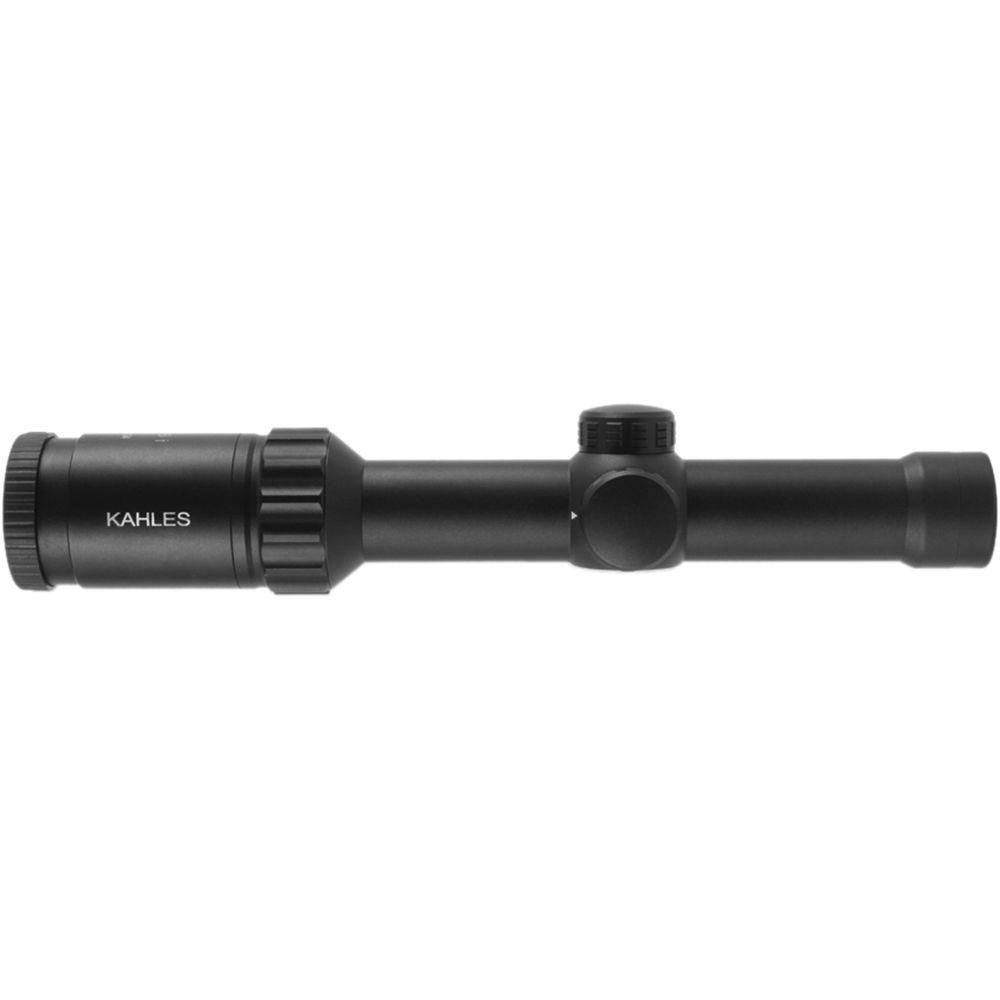

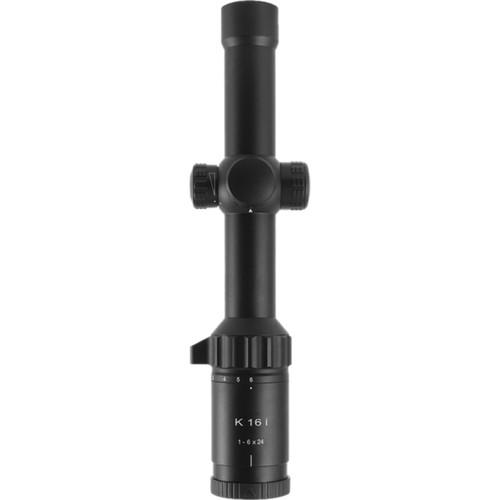

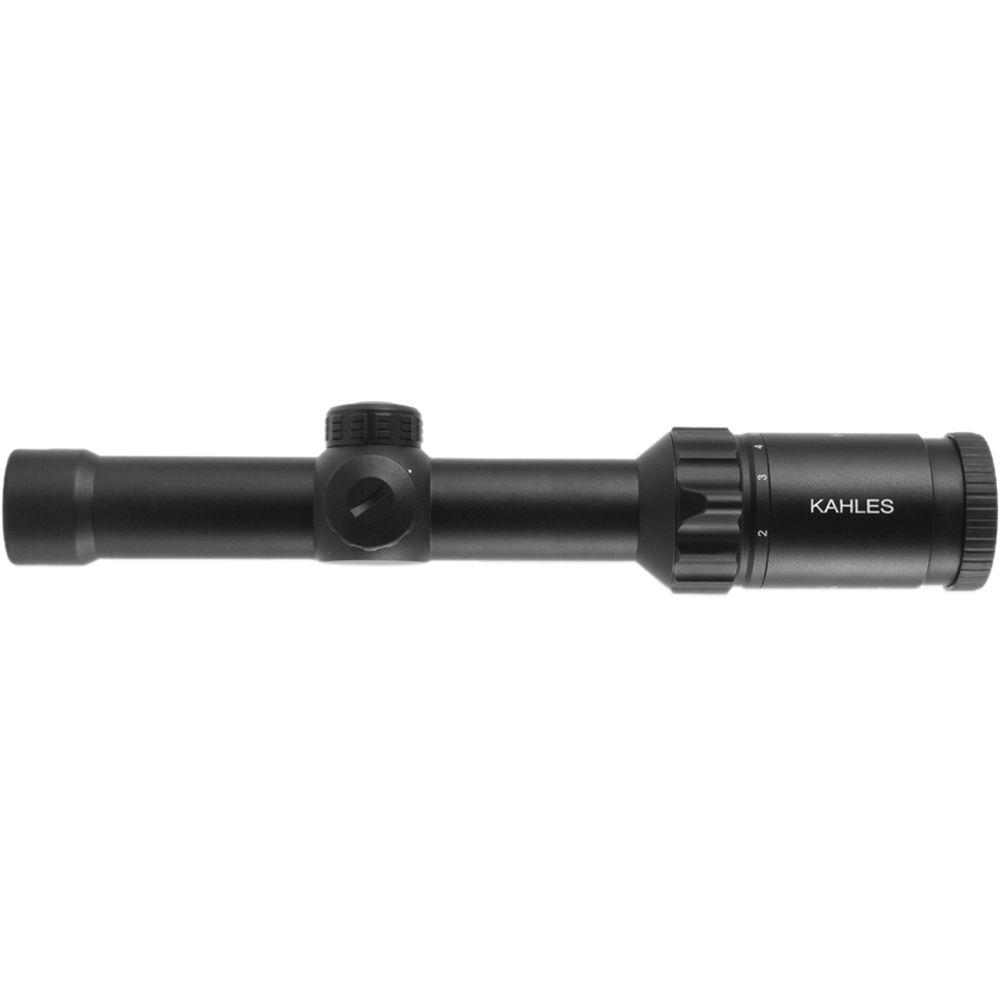

Product description Designed with the needs of three-gun competition shooters in mind, the KAHLES 1-6x24 K16i BDC Riflescope delivers the performance required to bring home the gold. Its relatively low-power/large field of view optical system, coupled with fully multi-coated lens surfaces, is crafted to deliver images with outstanding clarity, excellent edge sharpness, high contrast, and high total transmission of light. While the proprietary AMV coatings enhance image sharpness, brilliance, true color, and detail, an additional OILPHOBIC lens treatment applied to the outer surfaces ensures spotless visibility by repelling oil and grease and preventing fingerprint stains.The housing and opto-mechanical gear design is optimized for the toughest of conditions and to provide fail-proof reliability in the field. Its ultra-high-precision adjustments are constructed of hardened steel and machined to deliver a wear-resistant performance, high accuracy, and impeccable repeatability. Also noteworthy is the fast-focus eyepiece with a purposefully oversized and knurled focusing ring with an equally over-pronounced built-in throw lever for making very fast zooming adjustments in any weather conditions. The scope's waterproof (submersible), dustproof, and fogproof housing is crafted around its 30mm high-quality aluminum maintube and has a scratch-resistant anodized finish. - Optical Performance
-
- 1-6x magnification
- 24mm objective diameter
- AMV optical coatings provide sharp, brilliant, and high-detail images
- Optical system offers high transmission and high edge-to-edge image clarity
- Oleophobic coating repels oil and prevents fingerprint stains
- 126.9-20.1' at 100 yards linear field of view
- 24-4mm exit pupil
- Long 3.74" eye relief
- +2 to -3 diopter range

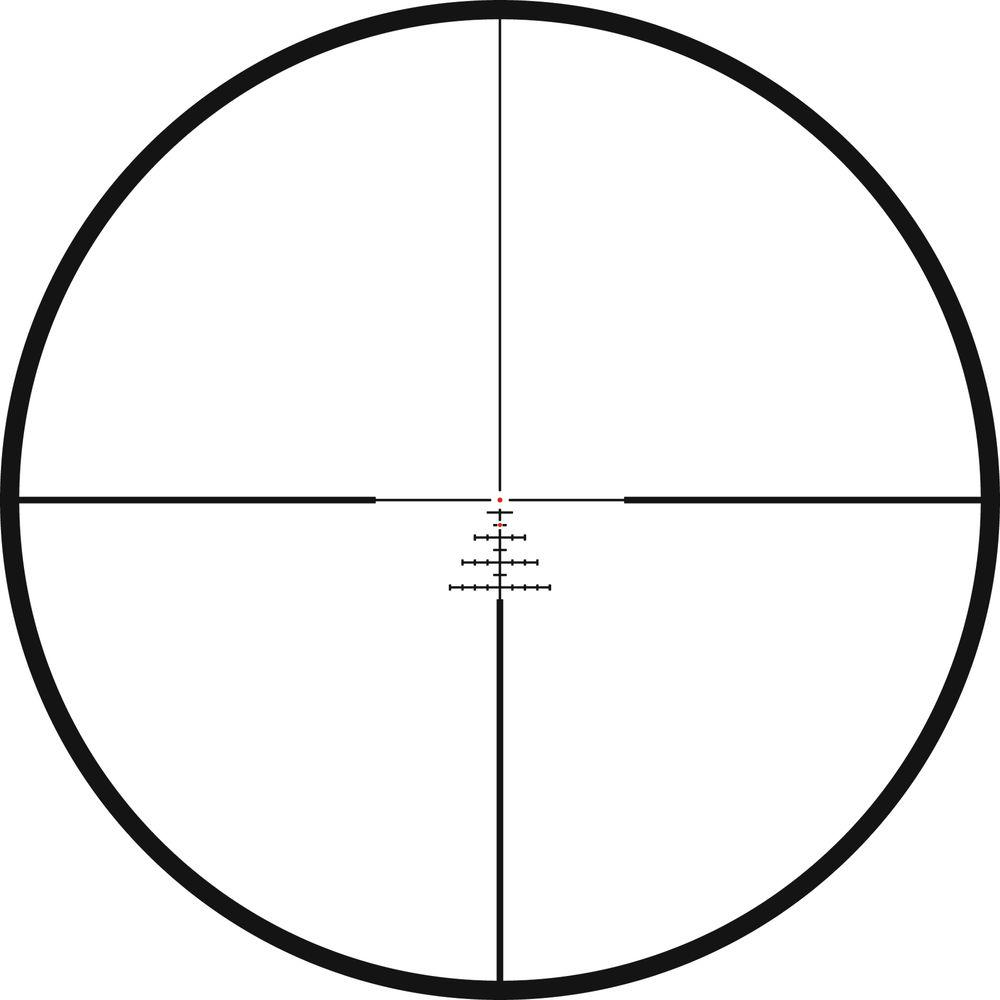

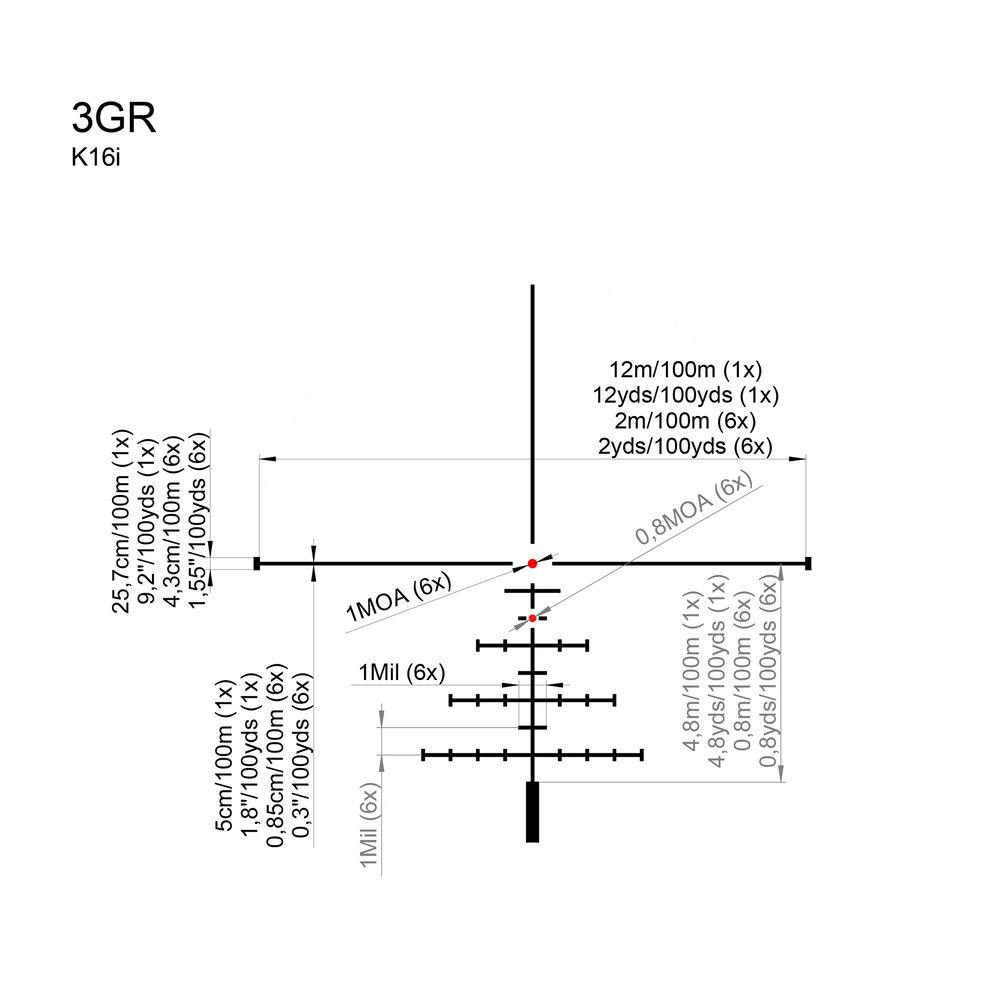

- 3 Gun Reticle
-
- Modified duplex crosshair configuration
- Thin outer posts on horizontal and lower vertical axes
- Fine inner hairs that extend through the upper vertical axis provide aiming points without obstructing
- Two illuminated red aiming dots
- Holdover lines under the center for ballistic drop and wind compensation

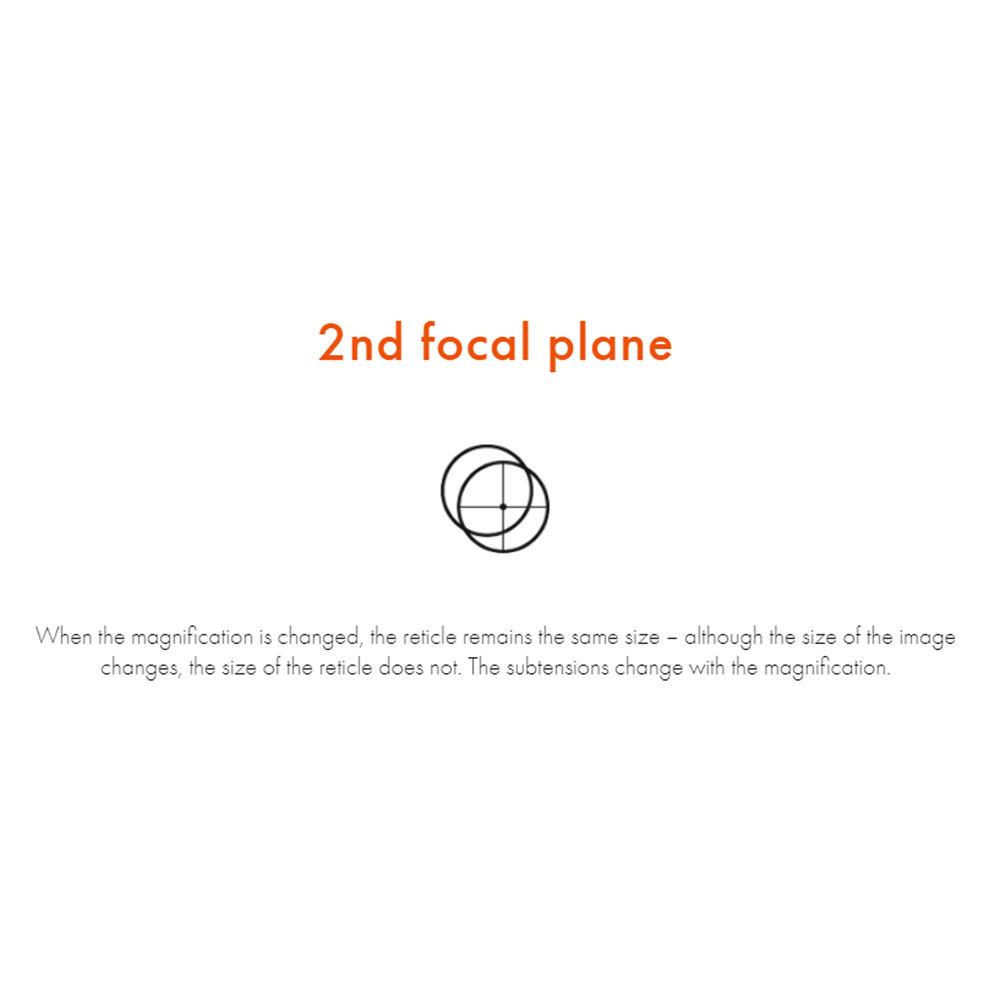

- 2nd focal plane
- Optimized for three-gun competitions
- Day and night illumination settings
- Use and Handling
-

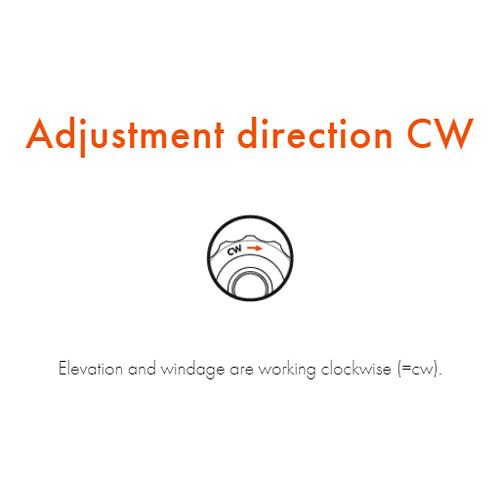

- Exposed tactical turrets are easy to adjust in the field by hand
- Specially designed Ballistic Drop Compensation (BDC) elevation turret enables fast adjustments to get users on target faster with greater precision
- Rear-facing elevation turret indicator window clearly shows adjustments that are made
- 1/10 MRAD impact point correction
- 22 MIL windage adjustment range
- 6 MIL elevation adjustment range
- Construction Details
-

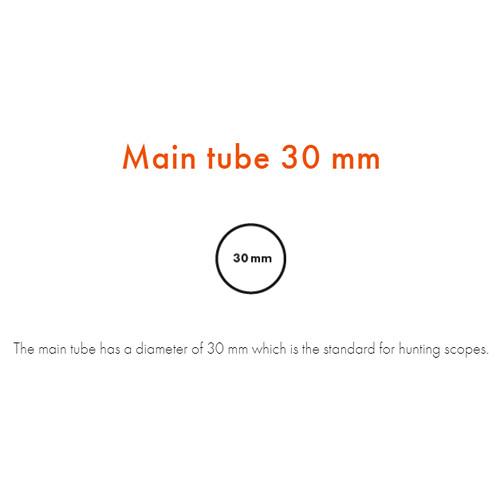

- 30mm single-piece maintube
- High-quality aluminum housing
- Scratch-resistant anodized finish
- Proprietary design ensures ultimate reliability and repeatability
- Hardened steel turret mechanisms ensure ultimate precision, reliability, and repeatability
- Fast focus eyepiece with an oversized zoom ring and a built-in throw lever
- Dedicated illumination brightness control dial on the opposite side from the windage knob
- Water, dust, and fogproof
- Impact resistant
In the Box Kahles 1-6x24 K16i BDC Riflescope (3GR Illuminated Reticle, Matte Black) CR-2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kahles 1-6x24 K16i BDC Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKahles K16i Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 126.9' @ 100 yd / 42.3 m @ 100 m
6x: 20.1' @ 100 yd / 6.7 m @ 100 m | | Exit Pupil Diameter | 1x: 24 mm

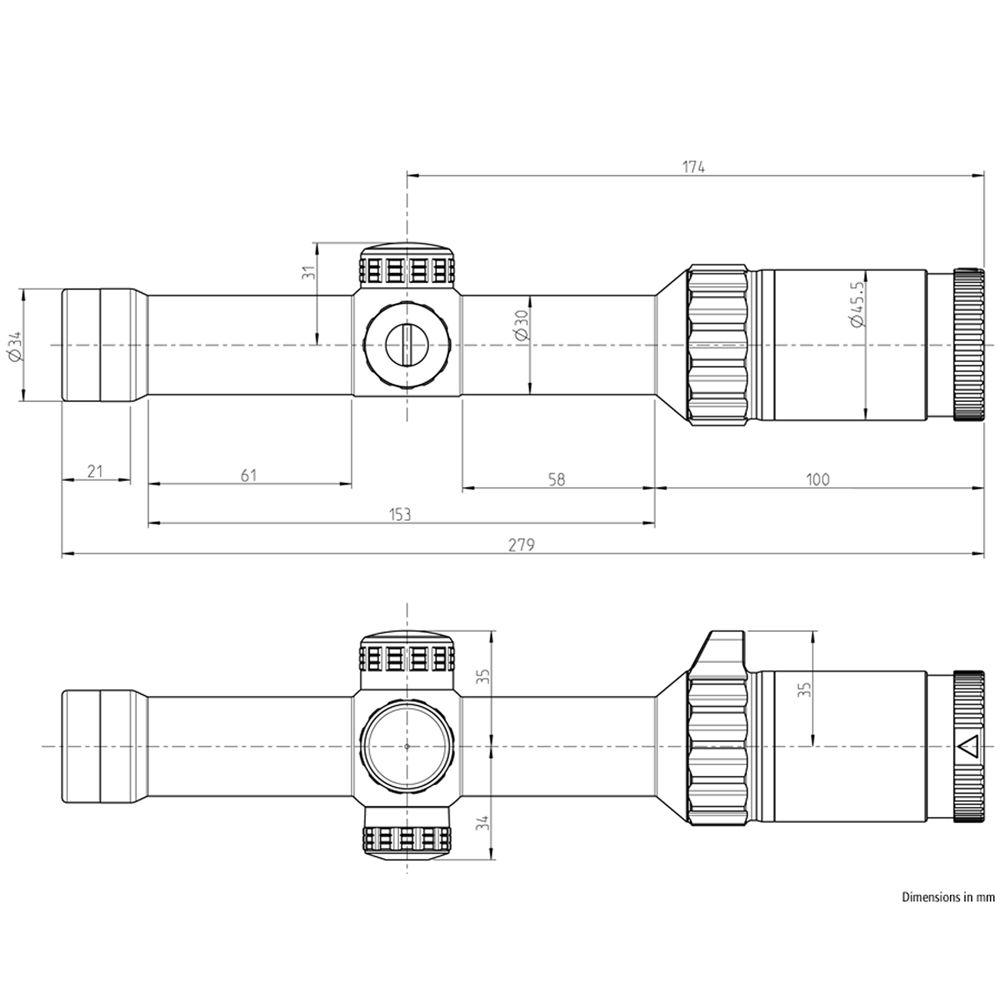

6x: 4 mm | | Eye Relief | 3.7" / 95 mm | | Diopter Correction | -3.5 to +2.0 | | | | Reticle Type | 3GR Reticle (Second Focal Plane) | | Illumination | Partially Illuminated | | Illuminated Color | Red | | | | Impact Point Correction | 1/10 MIL per Click | | Windage Adjustment | 22 MIL | | Elevation Adjustment | 6 MIL | | Parallax Correction | Yes, 100 yd / 91.4 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.9" / 27.7 cm | | Weight | 16.9 oz / 479.1 g |
