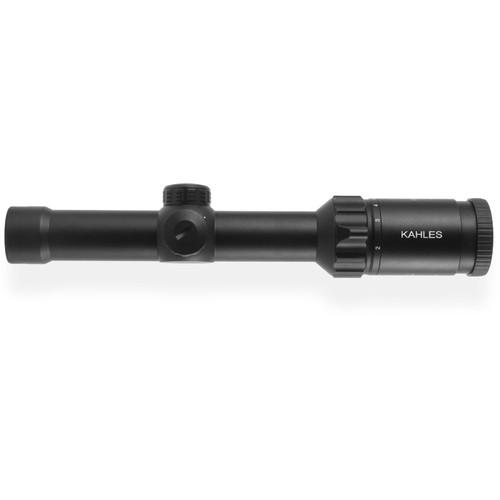

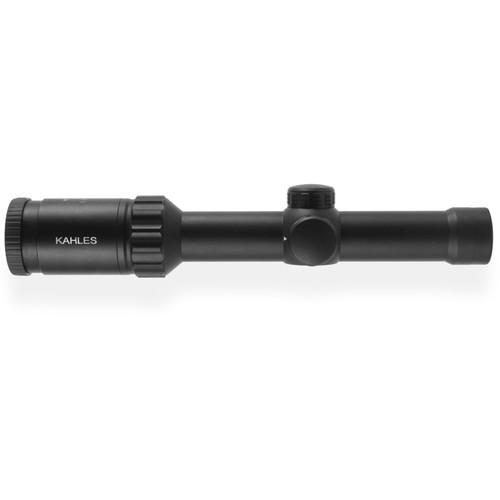

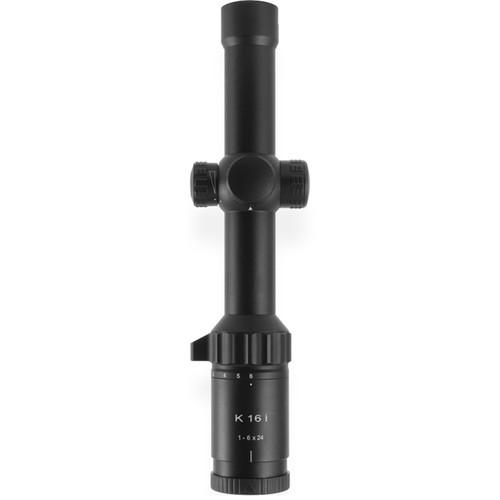

Product description Engineered by the pioneer in the field of telescoping sights, the KAHLES 1-6x24 K16i Riflescope delivers when failure is not an option. Its low-power, high field of view fully multi-coated optical system is crafted to deliver images with outstanding clarity, excellent edge sharpness, high contrast, and high total transmission of light. While the proprietary AMV coatings enhance image sharpness, brilliance, true color, and detail, an additional oleophobic treatment applied to the outer surfaces ensures spotless visibility by repelling oil and grease and preventing fingerprint stains. Another highlight is the 2nd focal plane 3GR illuminated reticle, based on the popular German 4 style reticle with optimization for three-gun competitions. Its outline provides two brilliant red target dots, three medium posts, a fine crosshair, and subtensions for ballistic and wind compensations.
The housing and opto-mechanical gear design is optimized for the toughest of conditions and to provide fail-proof reliability in the field. Its ultra-high-precision adjustments are constructed of hardened steel and machined to deliver a wear-resistant performance, high accuracy, and impeccable repeatability. Also noteworthy is the fast-focus eyepiece with a purposefully oversized and knurled focusing ring with an equally over-pronounced built-in throw lever for making very fast zooming adjustments in any weather conditions. The scope's waterproof (submersible), dustproof, and fogproof housing is crafted around its 30mm high-quality aluminum maintube and has a scratch-resistant anodized finish. - Optical Performance
-
- 1-6x magnification
- 24mm objective diameter
- AMV optical coatings provide sharp, brilliant, and high-detail images
- Optical system offers high transmission and high edge-to-edge image clarity
- Oleophobic coating repels oil and prevents fingerprint stains
- 126.9-20.1' at 100 yards linear field of view
- 24-4mm exit pupil
- Long 3.74" eye relief
- +2 to -3 diopter range
- Use and Handling
-
- 1/10 MRAD impact point correction
- 22 MRAD windage and elevation
- Construction Details
-
- 30mm single-piece maintube
- High-quality aluminum housing
- Scratch-resistant anodized finish
- Proprietary design ensures ultimate reliability and repeatability
- Hardened steel turret mechanisms ensure ultimate precision, reliability, and repeatability
- Fast focus eyepiece with an oversized zoom ring and a built-in throw lever
- Dedicated illumination brightness control dial on the opposite side from the windage knob
- Water, dust, and fogproof
- Impact resistant

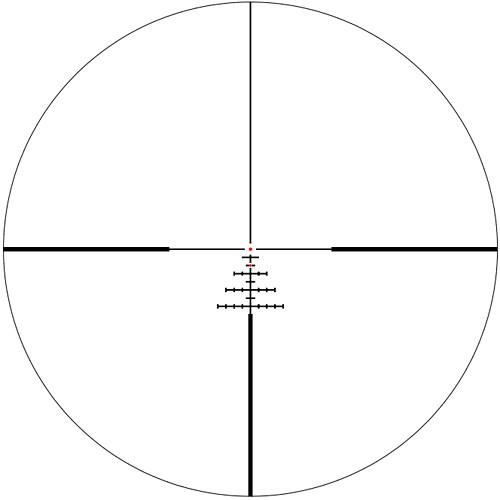

- 3 Gun Reticle
-
- 2nd focal plane
- German 4 style reticle
- Three medium posts with a fine crosshair
- Two brilliant red illuminated target dots
- Holdover lines under the center for ballistic and wind compensation
- Optimized for three-gun competitions
- Day and night illumination settings
UPC: 708026106491 In the Box Kahles 1-6x24 K16i Riflescope (3GR Illuminated Reticle, Matte Black) - CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Kahles 1-6x24 K16i Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKahles 10649 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 126.9' @ 100 yd / 42.3 m @ 100 m
6x: 20.1' @ 100 yd / 6.7 m @ 100 m | | Exit Pupil Diameter | 1x: 24 mm

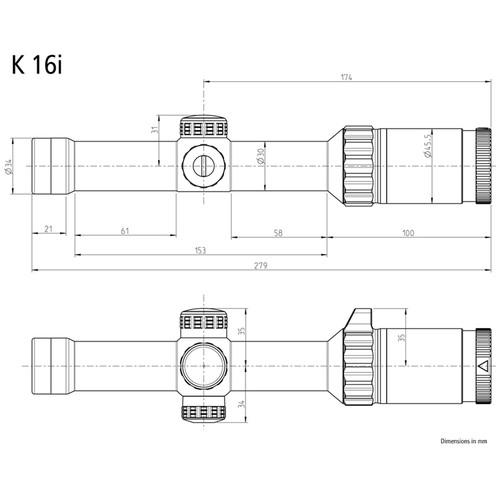

6x: 4 mm | | Eye Relief | 3.7" / 95 mm | | Diopter Correction | -3.5 to +2.0 | | | | Reticle Type | 3GR Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 22 MRAD | | Elevation Adjustment | 22 MRAD | | Parallax Correction | Yes, 100 yd / 91.4 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.9" / 27.7 cm | | Weight | 16.9 oz / 479.1 g |
