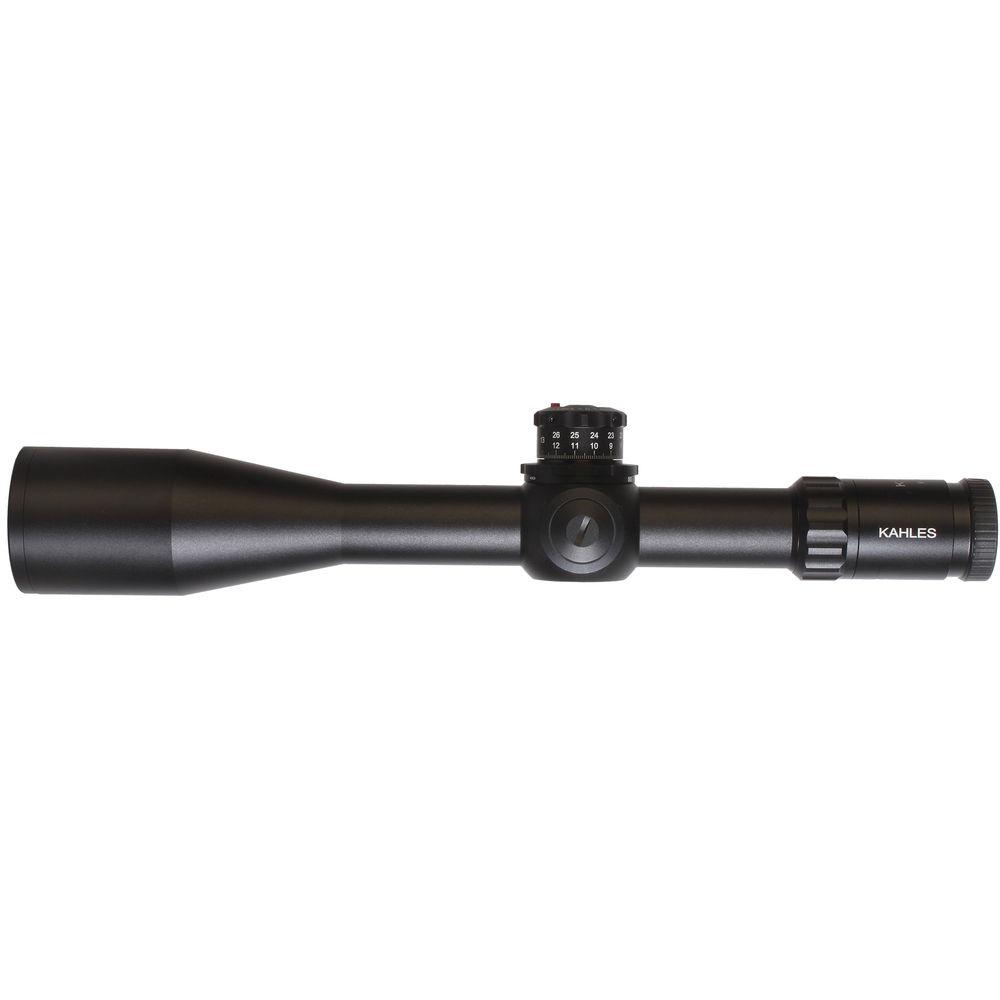

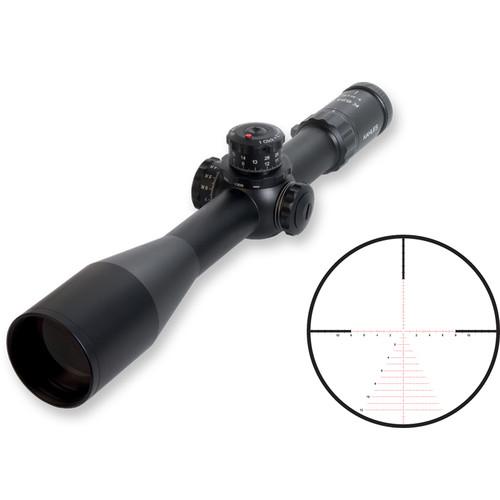

Product description Delivered by a pioneer in the field of telescoping sights, this right-handed KAHLES 6-24x56 K624i Riflescope offers time-proven opto-mechanical design, durability, precision, and ergonomics. Its 6-24x optical system, an extra-wide 56mm objective, and proprietary AMV coatings bring optical clarity, especially at the edge of the reachable range. The lenses deliver high resolution and contrast, edge-to-edge clarity, and 95% transmission of light.

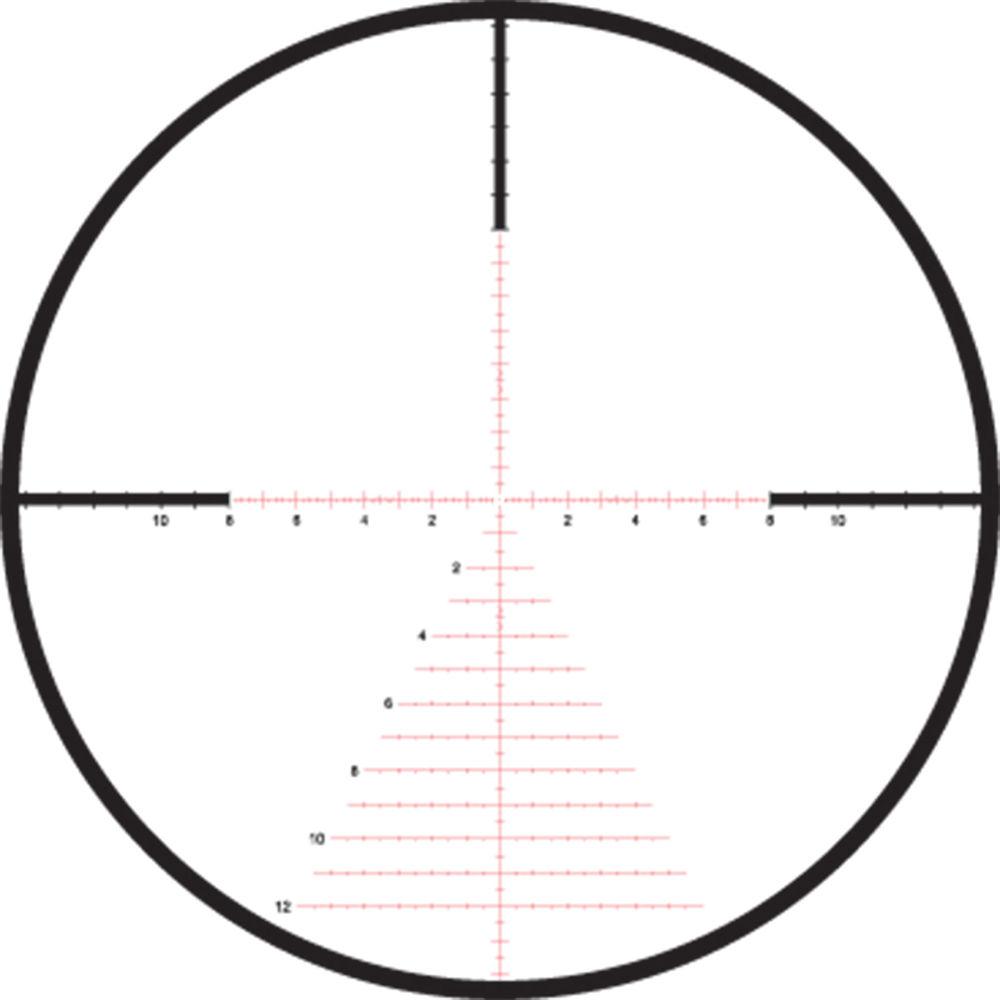

The 1st focal plane SKMR3 illuminated reticle features three posts in the upper half of the field and a fully illuminated crosshair. The crosshair is defined by fine milling marks and a system of horizontal lines cascading down from the center point. The reticle gives accurate range, ballistic, and wind compensations at all magnifications and has an inclination-based Automaticlight illumination. This produces a bright red glow when the scope is canted below a 45° angle, instantly turns off the illumination when the scope is canted at an angle above 75°, and provides a two-minute waiting period before turning off the illumination when the inclination angle is between 45 and 75°.

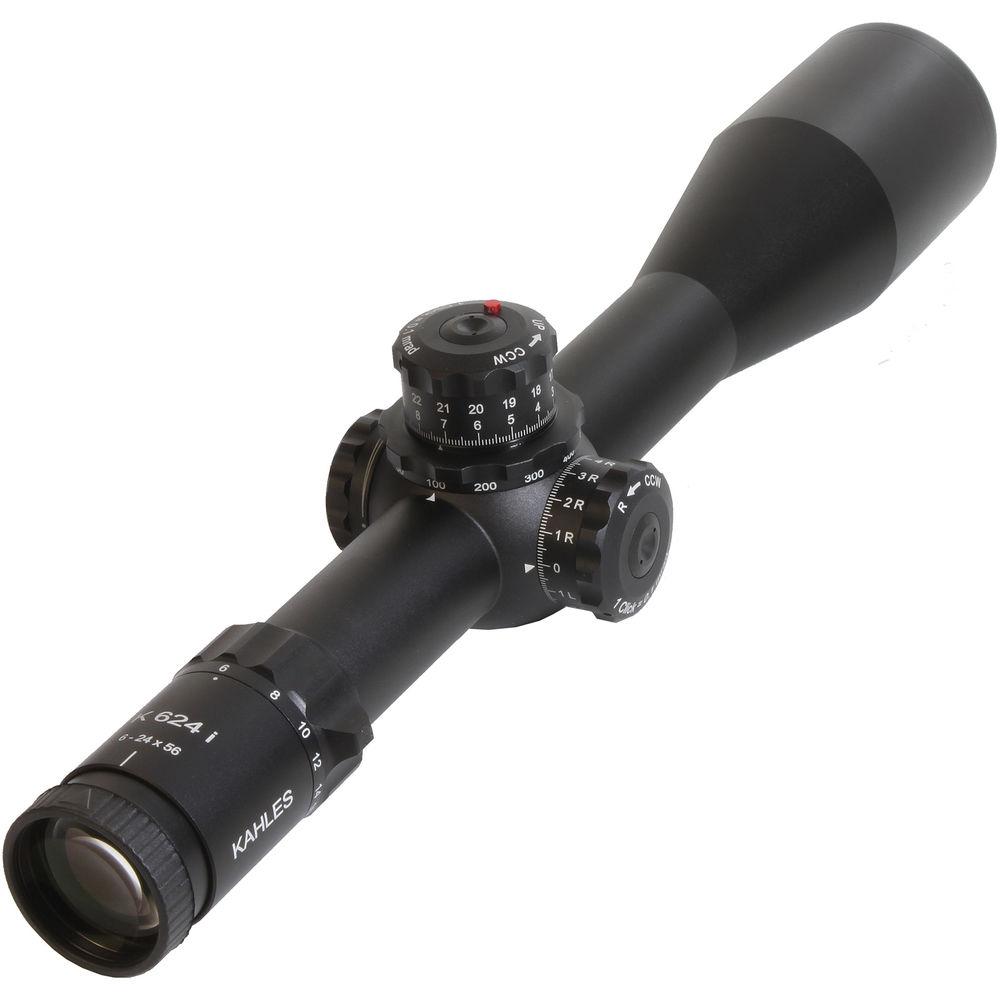

This K624i telescopic sight is constructed of hardened steel and machined to deliver wear-resistant performance, high accuracy, and impeccable repeatability. The pinch-and-turn elevation turret has a second rotation indicator, refined zero stop, and also houses a parallax corrector ring. Optimized for right-handed users, the windage dial is situated on the right side. Its graduation scale offers precise indexing, enabling you to make fast and accurate adjustments across the entire range: from a zero to a maximum and back. The scope's waterproof (submersible), dustproof, and fogproof housing is crafted around its 34mm aluminum maintube and has a scratch-resistant anodizing finish. - Optical Performance
-
- 6 - 24x magnification
- 56mm objective delivers high visibility at high zoom and low light
- AMV optical coatings provide sharp, brilliant, and high-detail images
- Optical system offers 95% transmission and high edge-to-edge image clarity
- 20.4 - 5.1' at 100 yards linear field of view
- Long 3.54" eye relief
- 2 to -3 diopter range
- Use and Handling
-
- 1/10 MRAD impact point correction
- 25.5 MRAD elevation adjustment range
- 11.25 MRAD windage adjustment range
- Construction Details
-
- 34mm single-piece maintube
- High-quality aluminum housing
- Scratch-resistant anodized finish
- Proprietary design ensures ultimate reliability and repeatability
- MultizerO elevation turrets let you zero rifles at up to 5 different distances
- Precision turrets with steel mechanism to ensure accurate settings
- Graduated pinch-and-turn elevation turret with a bright red button and a second rotation indicator
- Windage turret is located on the right side for right-handed operation
- Innovative parallax adjustment collar is at the base of the elevation turret
- Dedicated illumination brightness control dial on the opposite side from the windage knob
- Fast focus eyepiece with an integrated throw lever for fast zooming in any weather
- Waterproof, dustproof, and fogproof
- Impact resistant
- SKMR3 Reticle
-
- 1st focal plane
- Three medium posts in the upper half-field
- Fine illuminated crosshair with a system of MRAD-based markings
- A system of horizontal lines extending down from the center for ranging and compensation
- Automaticlight: inclination-based true daytime illumination
- Turns on illumination when the inclination angle is below 45°
- Turns off illumination when the inclination angle is above 75°
- Turns off illumination after 2 minutes when the inclination is between 45 and 75°
UPC: 708026106156 In the Box Kahles 6-24x56 K624i Riflescope (SKMR3 Reticle, Right-Side Windage Knob, Matte Black) - CR-2032 Battery
- Limited Lifetime Warranty
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Kahles 6-24x56 K624i Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKahles 10615 Specs | | | Magnification | 6 to 24x | | Objective Lens Diameter | 56 mm | | Field of View | 6x: 20.4' @ 100 yd / 6.8 m @ 100 m
24x: 5.1' @ 100 yd / 1.7 m @ 100 m | | Exit Pupil Diameter | 6x: 9.3 mm
24x: 2.3 mm | | Eye Relief | 3.5" / 90 mm | | Diopter Correction | -3.5 to +2.0 | | | | Reticle Type | SKMR3 Reticle (First Focal Plane) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 11.25 MRAD | | Elevation Adjustment | 25.5 MRAD | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.9" / 40.4 cm | | Weight | 33.5 oz / 949.7 g | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 21.1 x 4.3 x 4.3" |
