User Manual for Kamerar PAN-100 Track Rail Slider Click to enlarge the picture
Contents of the user manual for the Kamerar PAN-100 Track Rail Slider
- Product category: Camera Sliders Kamerar
- Brand: Kamerar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kamerar Camera Sliders
|
User manual for the Kamerar PAN-100 Track Rail Slider contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kamerar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kamerar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kamerar product will considerably shorten its lifespan!
|

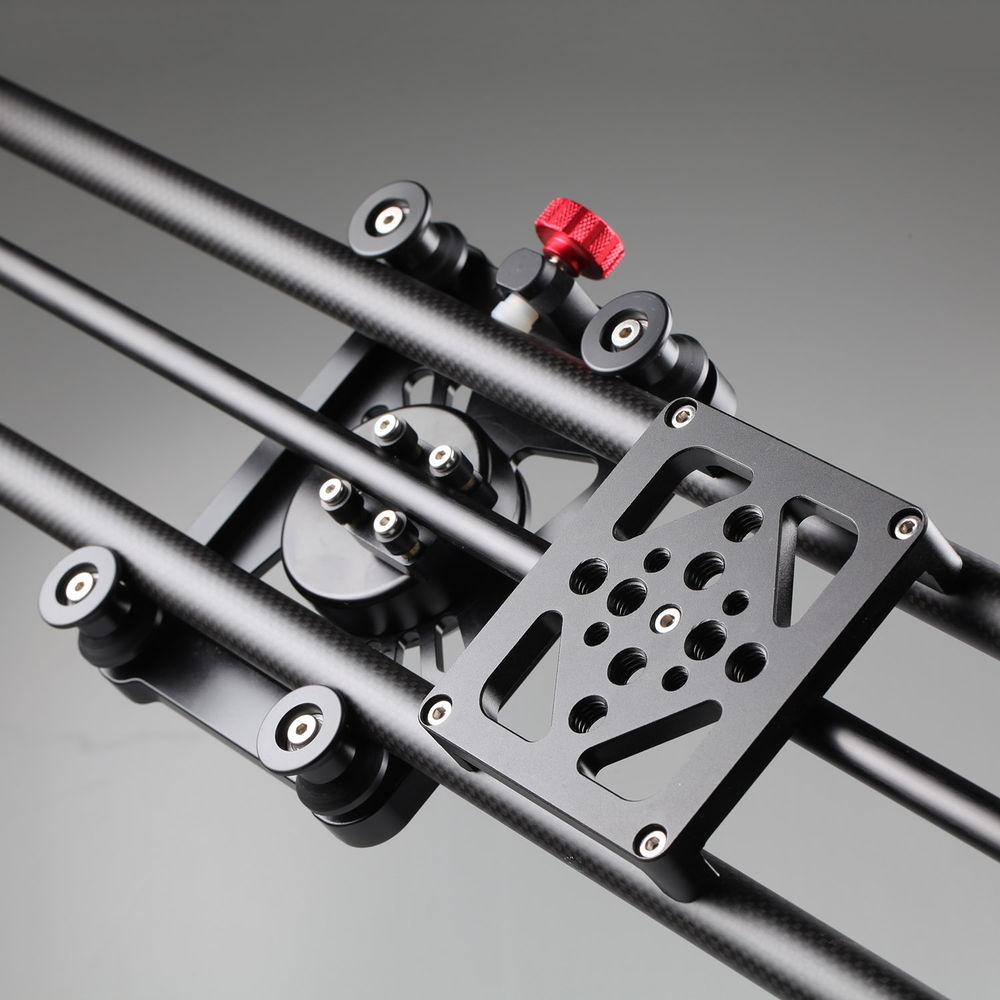

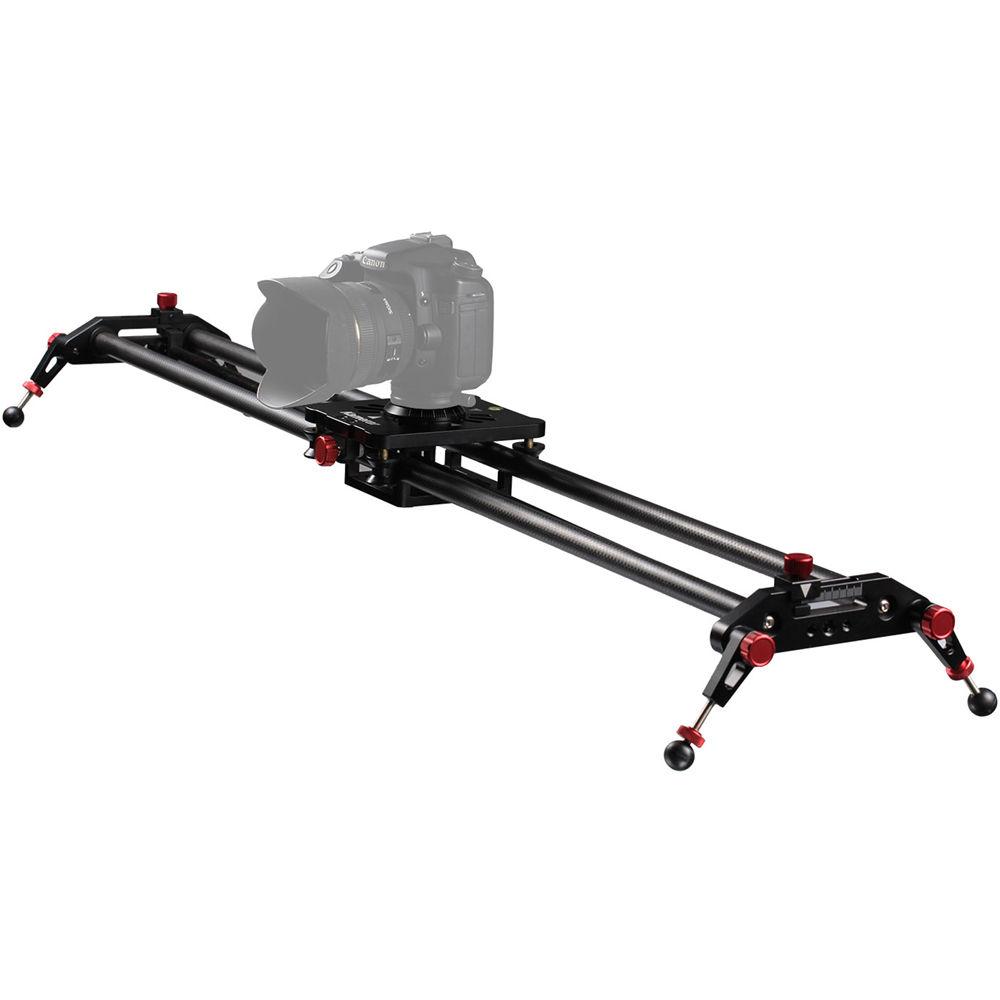

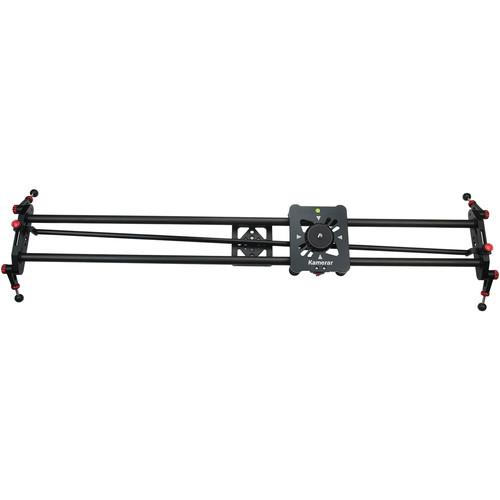

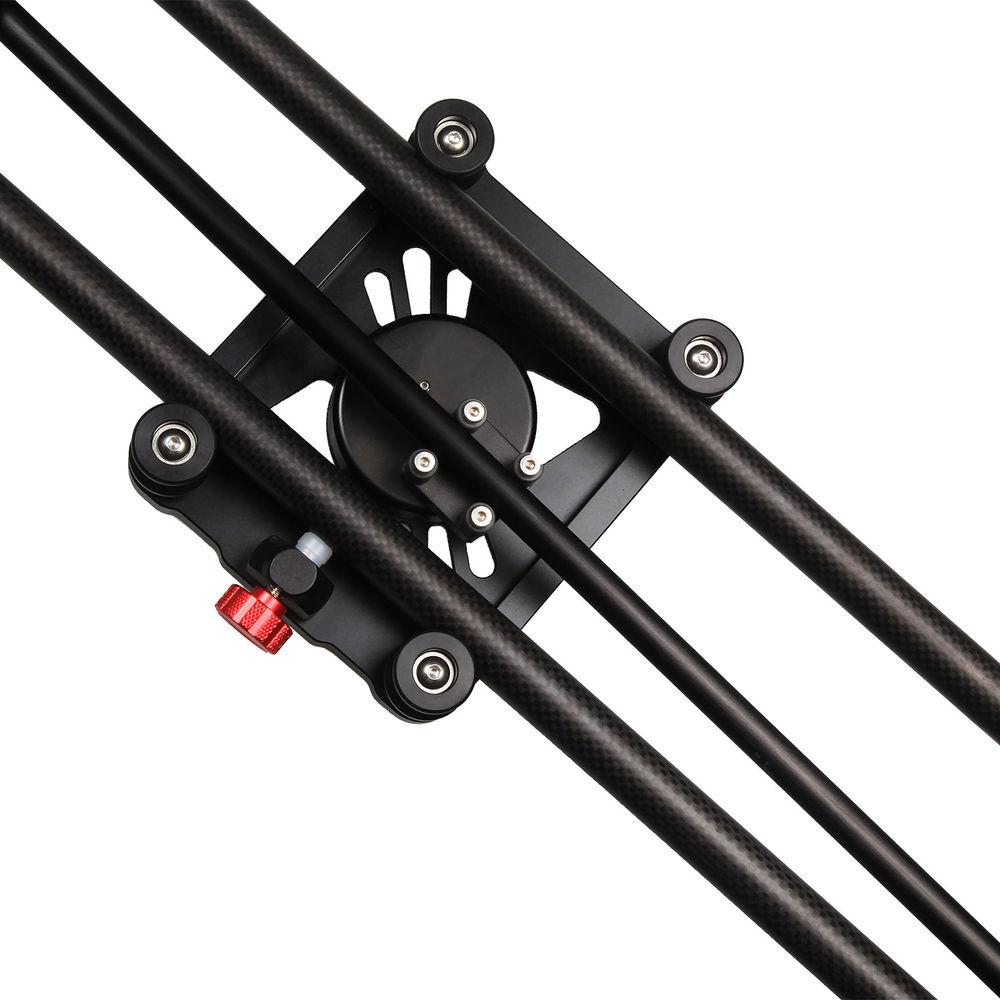

Product description Boost your production value with the smooth auto-pan slide of the PAN-100 Track Rail Slider from Kamerar. Its ultralight 39" carbon fiber rails make the unit easily portable and sturdy with a 10 lb maximum load. Its adjustable legs and multiple 3/8"-16 and 1/4"-20 female threads allow the slider to be mounted on a tripod or in various configurations. The carriage features a 3/8"-16 male thread for mounting your camera or quick release plate. Four roller bearings on the carriage allow for smooth gliding on the outer rails, and four smaller roller bearings guide the carriage along the center guide bar. Use the PAN-100 as a standard slider to create a straight side-to-side shot, or adjust the center guide bar with the tuning knobs and the auto-pan feature will turn your camera in the direction of your slide to create panoramic shots. You can also set the tuning knobs in another configuration to create a parallax shot, locking on your subject as auto-pan turns your camera in the opposite direction of your slide. Additional 3/8"-16 and 1/4"-20 threads allow for mounting of various accessories on the leg units, and a bubble level is included on the carriage to make sure your camera is balanced on uneven terrain. The carriage lock allows you to lock the carriage in place for still shots or transport. - Carbon fiber rails make the slider portable and lightweight at 4.5 lb
- Rails and carriage have a maximum load of 10 lb

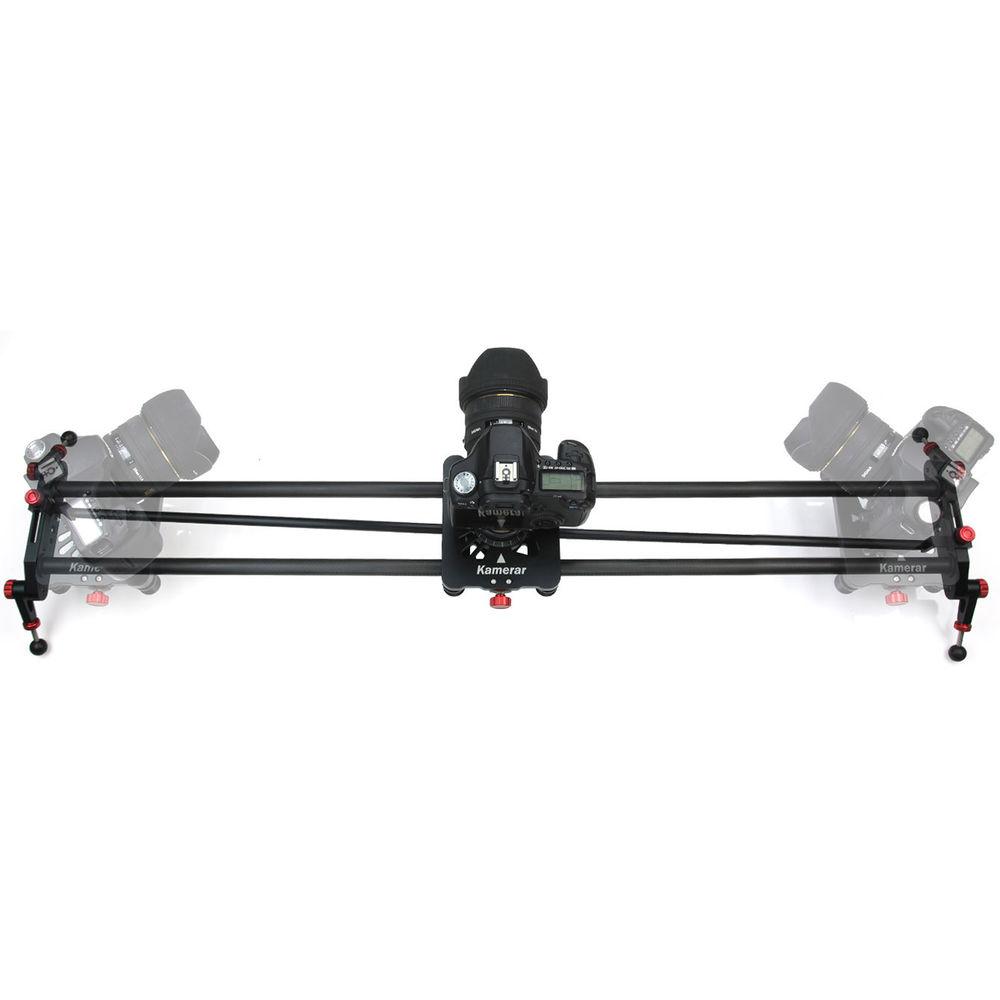

- The auto-pan carriage allows the camera to pan while sliding in the direction of your choice to create panoramas or parallax shots using the adjustable guide bar

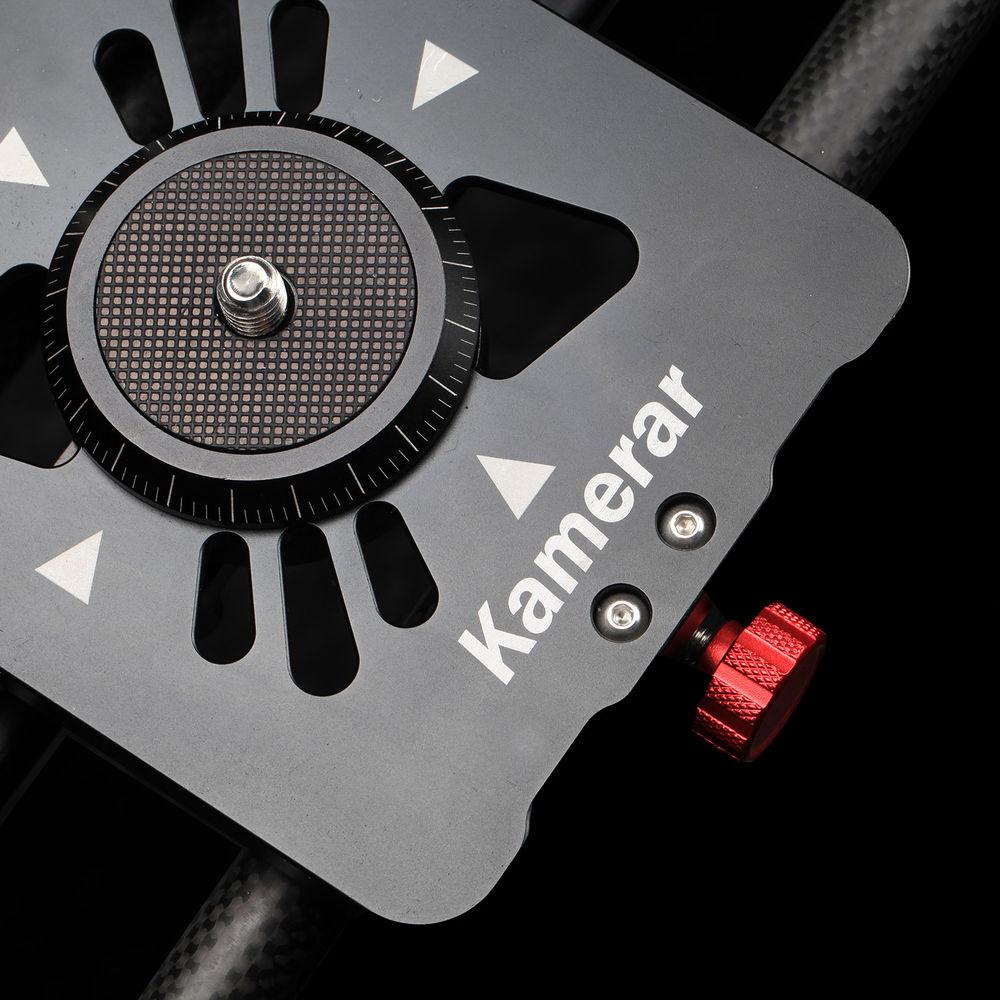

- Carriage features a 3/8"-16 male thread to mount your camera, tripod head, or quick release plate
- 3/8"-16 and 1/4"-20 female threads are provided for accessories

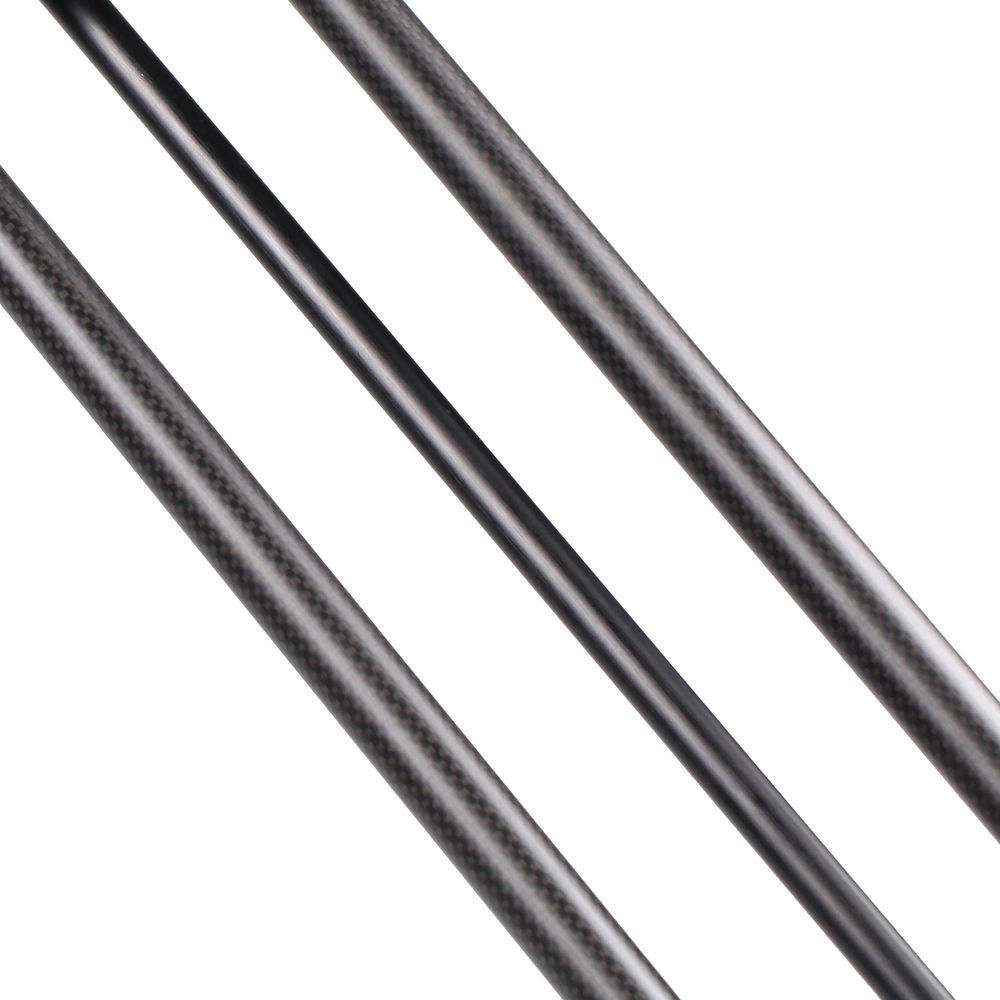

- Rails measure 39" for long panoramic shots

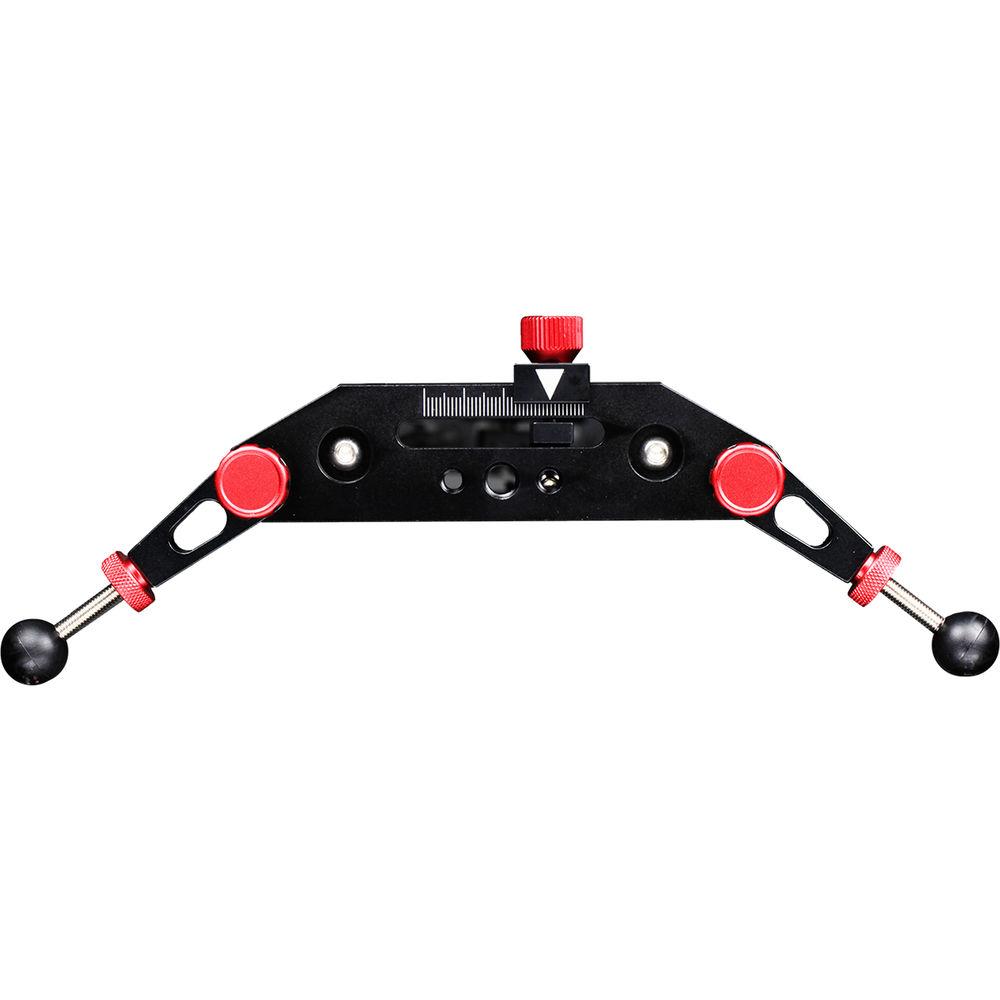

- Angle and height of legs are fully adjustable, and rubber pads on each leg help maintain stability

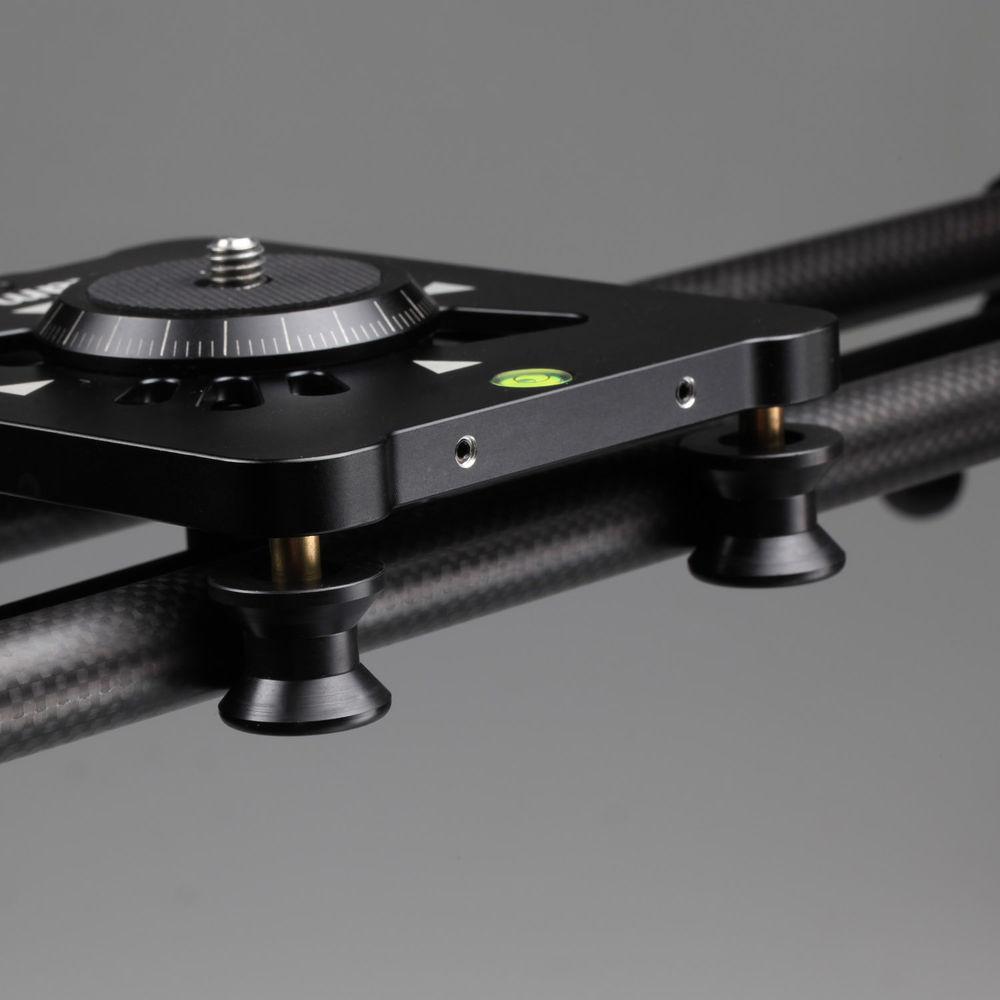

- The carriage has a built-in bubble level to keep your shots balanced on uneven terrain
UPC: 713012796518 In the Box Kamerar PAN-100 Track Rail Slider Limited 1-Year Warranty (USA) Table of Contents
|
Upload User Manual
Have you got an user manual for the Kamerar PAN-100 Track Rail Slider in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKamerar KAM-SLD-PAN100 Specs | Load Capacity | 10 lb / 4.54 kg | Bubble Level | Yes | | Camera Mounting Screw | 3/8"-16 Male | Accessory Mounting | 2 x 3/8"-16 Female 4 x 1/4"-20 Female On the end of each leg assembly | Tripod Mounting | 8 x 3/8"-16 Female Thread 4 x 1/4"-20 Female Thread | | Quick Release Plate Type | No Quick Release | | Number of Bearings | 8 4 large and 4 small roller bearings | | Body Material | Aluminum | Track Length | 3.28' / 100 cm 3.54' / 108 cm, Including Legs | Weight | 4.5 lb / 2.04 kg, Including Legs | | Package Weight | 6.5 lb | Box Dimensions (LxWxH) | 44.3 x 7.8 x 4.3" |
