User Manual for Kandao Obsidian S Professional 3D 360° VR Camera Click to enlarge the picture
Contents of the user manual for the Kandao Obsidian S Professional 3D 360°
- Product category: All 360 Video Cameras Kandao
- Brand: Kandao
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kandao All 360 Video Cameras
|
User manual for the Kandao Obsidian S Professional 3D 360° contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kandao product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kandao user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kandao product will considerably shorten its lifespan!
|

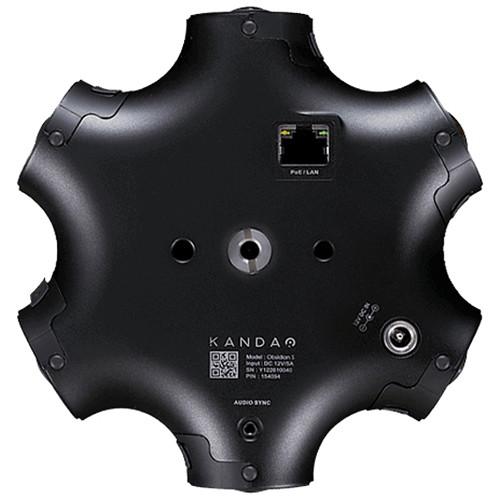

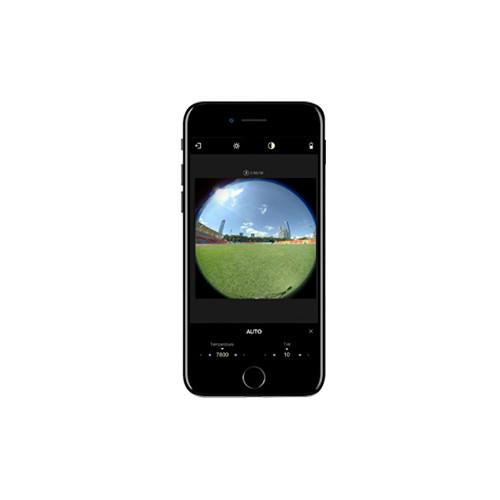

Product description Create eye-catching slow-motion effects in 4K 3D or 2D VR video using the Kandao Obsidian S Professional 3D 360° VR Camera. The compact Obsidian S features PoE and LP-E6 power options for capturing all your adventures and experiences for stereoscopic panoramic display. Immersive 3D views can be recorded at rates up to 6K50 or 4K120 at 60 or 100 Mb/s, and can be live streamed at 4K with an optional Kandao Live license (available separately).Each of the Obsidian's six 190° lenses records to an individual microSD card while six microphones capture PCM-format audio. The audio input jack can be used to sync with a Zoom H2N recorder. Recording options include time-lapse functions, log mode, and DNG-format still capture. Imaging features include a 12MP back-illuminated CMOS sensor, 10 stops of dynamic range in video (12 in still), and a 100–3200 ISO range with manual control via the Kandao app. GigE connectivity enables you to transfer files, provide power (PoE), and preview your footage using the Obsidian S's Ethernet port. Connect the camera to an optional Wi-Fi router for image preview and remote control, or use the downloadable Kandao app for Bluetooth smart device control. In default mode, the exposure of each lens is individually calculated with white balance based on the master lens. The app's playback function enables high-res VR viewing on standard display devices.In addition to PoE, the camera can be powered using 12 VAC power or by two Canon LP-E6 batteries (available separately). A protective carrying case, a Zoom sync cable, an Ethernet cable, and a shoulder strap are also included with the Obsidian S camera. - Features
-
- High-speed VR camera with rates up to 120 fps
- Record 6K 3D video at 50 or 30 fps, or 4K 3D at 120 or 80 fps

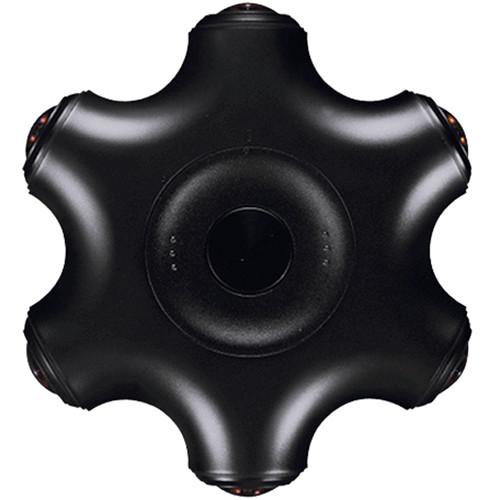

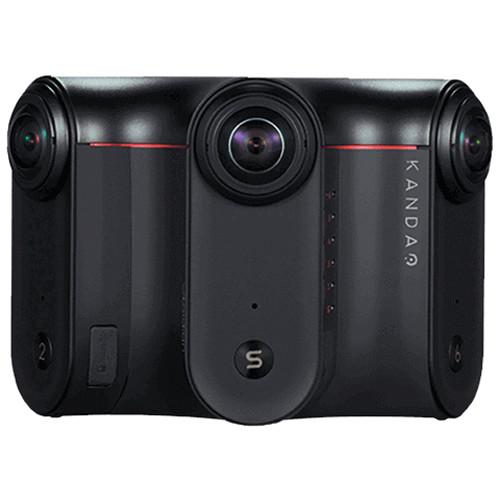

- Compact, minimalist design with six fisheye f/2.8 lenses
- Quick stitching based on a deep-learning algorithm
- Live stream 4K video with a separately available Kandao Live license
- Automatic in-camera ISO control; manual ISO control using the remote-control app
- HDR (high dynamic range) in spherical image capture
- Versatile power options include PoE, AC power, and Canon LP-E6 batteries
- Play back on standard display devices using the Kandao app

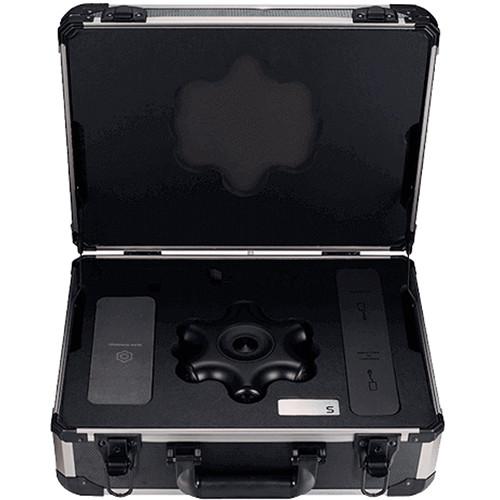

UPC: 193121000025 In the Box Kandao Obsidian S Professional 3D 360° VR Camera Carrying Case Shoulder Strap Lens Cleaning Cloth Sync Cable for Zoom H2N PoE Power Supply Ethernet Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Kandao Obsidian S Professional 3D 360° VR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKandao Obsidian S Specs | Stitching Resolution | 6K 4K | Internal/External Stitching | External Stitching | Supported Spherical Projection Types | Cubic, Equirectangular, Stereographic | 360 Stitched Video Format | External 3D: 5760 x 5760 at 30, 50 fps (60, 100 Mb/s H.264) 3840 x 3840 at 80, 120 fps (60, 100 Mb/s H.264) External 2D: 5760 x 5760 at 30, 50 fps (60, 100 Mb/s H.264) 3840 x 3840 at 80, 120 fps (60, 100 Mb/s H.264) | Still Image Resolution | DNG: 36 Megapixel, 7680 x 7680 (3:2) JPEG: 36 Megapixel, 7680 x 7680 (3:2) | Number of Lenses | 6 | | Sensor | 1-Chip CMOS Back-illuminated | Sensor Resolution | 12 MP | | Focal Length | 1.45mm 7.96 35mm equivalent | Maximum Aperture | f/2.8 | Angle of View | 190° (vertical) | | Video Format | 3000 x 2160 at 50 fps (100, 60 Mb/s H.264) 3000 x 3000 at 30 fps (100, 60 Mb/s H.264) 1500 x 1080 at 120 fps (100, 60 Mb/s H.264) 1500 x 1500 at 80 fps (100, 60 Mb/s H.264) 50 fps can be converted to 60 fps in Kandao Studio for improved VR HMD playback. | | Recording Media | 6 x microSD/HC/XC (256 GB Maximum) U3 (UHS-1) cards recommended | Built-In Mic | Yes | Channels | Surround | Audio Format | PCM | | Photo ISO Range | 100 - 3200 (Manual) Manual control via Kandao app. | Video ISO Range | 100 - 3200 (Manual) Manual control via Kandao app. | Interval Recording | 10 Seconds 10-second default 4/5/6/7/8/9/20/30/60-second options | | Wi-Fi | Yes | Tripod Mount | 1/4" - 20 3/8"-16 and anti-twist | | Inputs | 1 x 1/8" (3.5 mm) Stereo Mini Jack 1 x RJ45 Ethernet | Outputs | None | Microphone Input | Yes | Headphone Jack | No | | Battery | 2 x Rechargeable Lithium-Ion Battery Pack, 7.2 VDC Max Runtime: 0.7 Hours per Charge Canon LP-E6 | Power Adapter | 12 VDC | | Package Weight | 12.9 lb | Box Dimensions (LxWxH) | 17.5 x 15.0 x 10.25" |
