User Manual for Kanex HDMI A V Digital Adapter Click to enlarge the picture
Contents of the user manual for the Kanex HDMI A V Digital Adapter
- Product category: Media Player & Recorder Accessories Kanex
- Brand: Kanex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Kanex Media Player & Recorder Accessories
 |
User manual for the Kanex HDMI A V Digital Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Kanex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Kanex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Kanex product will considerably shorten its lifespan!
|

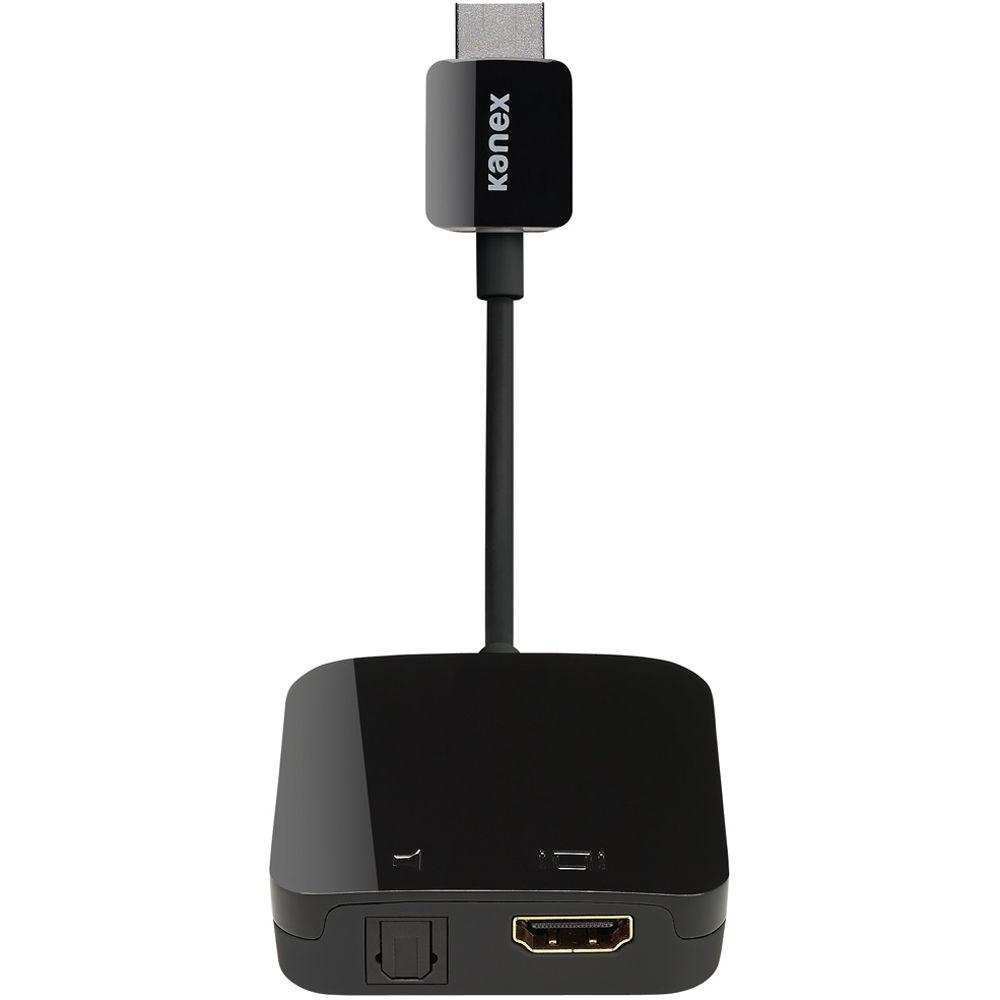

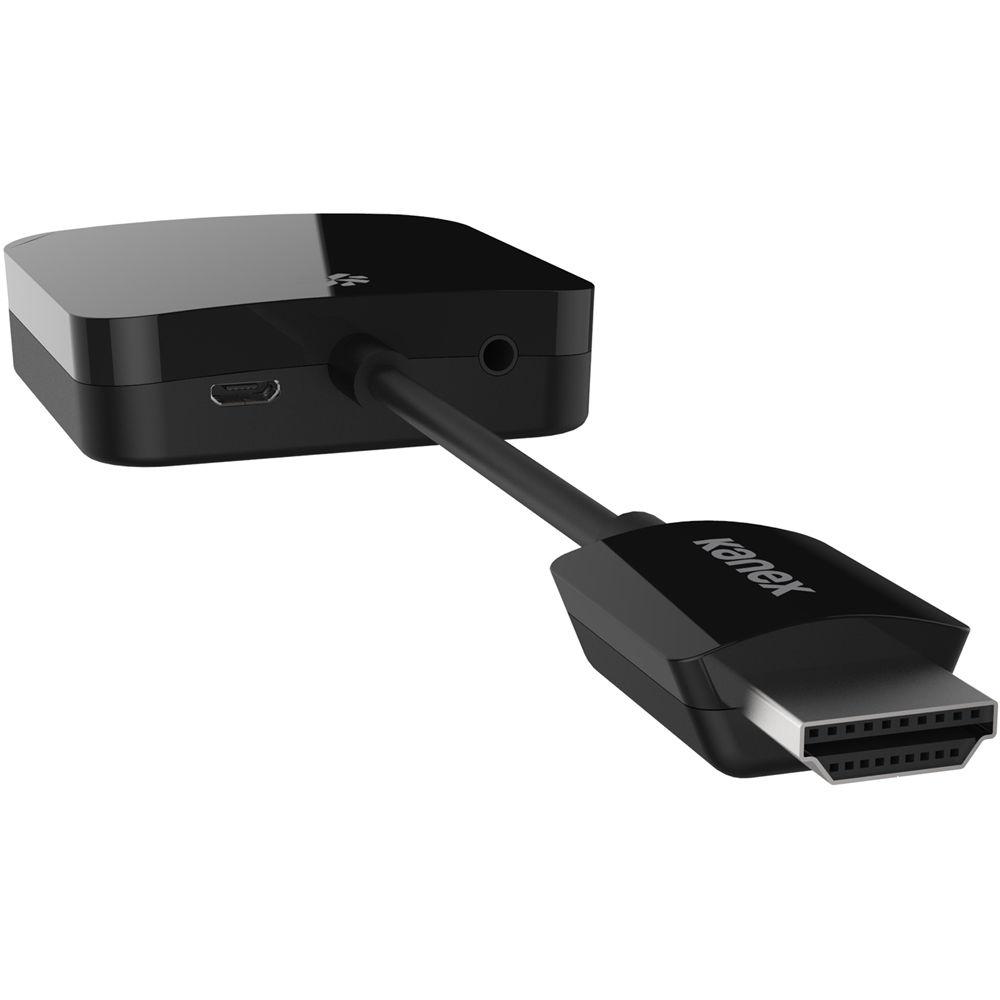

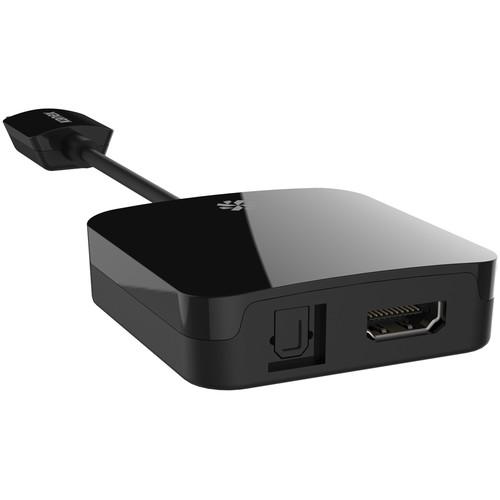

Product description Split your digital audio and video signals and send them where you want with the Kanex HDMI A/V Digital Adapter. It has a male HDMI input and female HDMI, optical, and 1/8" analog audio outputs to allow you to send video to one projector or display while audio goes directly into your sound system. The adapter supports up to 4K resolution, 3D, and uncompressed audio formats such as LPCM, DTS Digital, and Dolby Digital. When used with a compatible Apple TV, you can split the audio and video portions of your AirPlay streaming content to the display and speaker system of your choice. - Connect Your Apple TV to Your Home Theater System

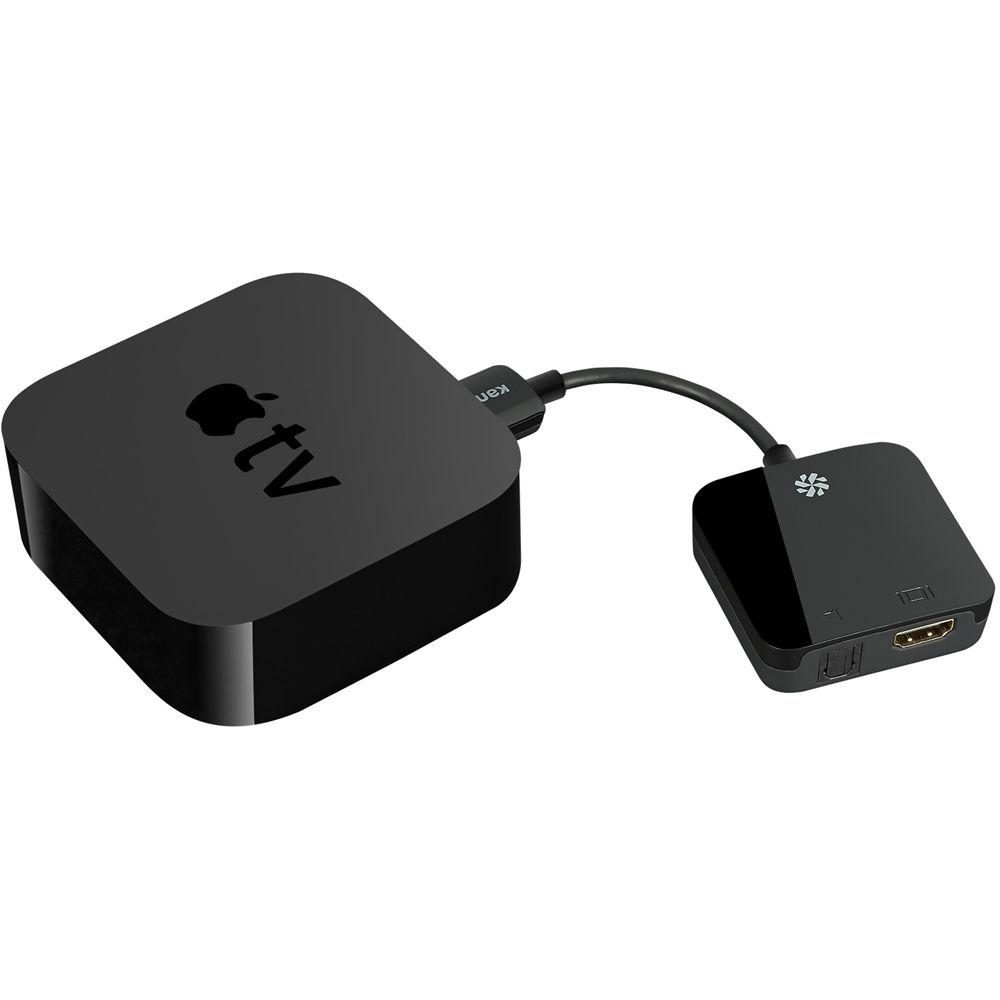

- The HDMI A/V Digital Adapter allows you to stream HD content from your Apple TV, or any HDMI source, directly to your home theater system via HDMI with sound emanating from its optical audio or 1/8" audio port.
- Compatible with Your Current Surround Sound System
- Now you can listen to your favorite music, podcasts, TV shows, radio apps, and more with your existing home theater sound system or sound bar. Connect directly via standard digital optical or 1/8" audio port. Compatible with new Apple TV, Amazon Fire TV, Nexus Player, Roku, or any HDMI source.
- Additional Features
-
- Connect your new Apple TV (4th Gen), Nexus Player, Amazon Fire TV, Roku, or any HDMI source to your surround sound system via digital optical port
- Display content from an HDMI source onto a compatible HDMI display while audio is sent elsewhere
- Supports 7.1 and 5.1 surround sound via standard SPID/F Optical Audio, or 2.0 stereo sound via the 1/8" audio port
- Plug and play
- 8.25" cable length
UPC: 814556019917 In the Box Kanex HDMI A/V Digital Adapter 4' Micro-USB Charging Cable Power Adapter Limited 1-Year Warranty Brochure PDF 165.7kbfuyrtvwxbdtxxvvvtasx Table of Contents
|
Upload User Manual
Have you got an user manual for the Kanex HDMI A V Digital Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanex K172-1049-BK7I Specs | Compatible Models | Apple iPad: iPad Pro, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad (4th generation)
Apple TV: 2nd generation or later
iPod touch: 5th generation or later
iMac, Mac mini, MacBook Air: Mid 2011 or later
MacBook Pro: Early 2011 or later
Mac Pro: Late 2013 or later
Amazon Fire TV
Nexus Player
Roku
Any HDMI source | | Input | 1 x HDMI 1.4 male | | Output | 1 x HDMI 1.4 female
1 x 1/8" (3.5 mm) stereo mini-jack
1 x Optical | | Resolutions Supported | Input Resolution: Up to 8-bit 4K @ 30 Hz; 12-bit 1080p @ 60 Hz; or 12-bit 720p/1080i @ 60 Hz
Output Resolution: Up to 4K, 3D | | 3D Support | Most formats up to 300 MHz | | Audio Formats Supported | LPCM, DTS Digital, Dolby digital | | Cable Length | 8.25" (21.0 cm) | | Power Requirement | 5 VDC @ 2 A via external power supply | | Power Consumption | 2.5 W max | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 7.2 x 3.3 x 2.2" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
