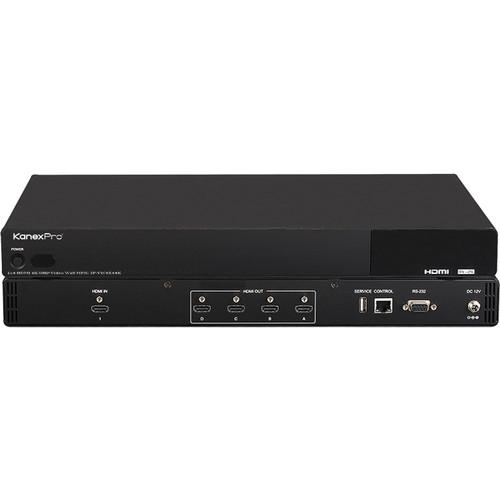

Product description The KanexPro 1 x 4 HDMI UHD 4K Video Wall Processor with Bezel Correction allows you to arrange the HDMI input in a variety of ways on up to four UHD displays. It features HDMI connectors, has built-in bezel correction and control, and is HDCP compliant. The processor is flexible in that it supports UHD video at 24, 25, and 30 fps as well as PC resolutions from VGA to WUXGA.
In addition to being able to display your input signal over a 2 x 2 display, the Video Wall Processor can also be used as a simple 1 x 4 DA or splitter, which will duplicate the input signal on each of your attached monitors (up to 1 x 4). If you need a larger video wall, you can cascade units to support up to 9 monitors. The unit supports a variety of audio formats such as AC3, DTS, DTS-HD Master Audio, Dolby Digital Plus, Dolby TrueHD, and Dolby Atmos. Control over the unit is done via RS-232 or Telnet using the Ethernet port. - This Video Wall Processor allows you to input a single HDMI signal and have it mapped to four HDMI monitors, usually in a 2 x 2 array
- You can cascade multiple Video Wall Processors to support up to nine monitors, usually in a 3 x 3 array
- You can also use this unit to simultaneously display the same signal on up to four monitors
- The processor supports an extensive range of input video signals and outputs a variety of common standards for easy display possibilities
- RS-232 control is limited to creating a single video wall. However, control over Telnet allows you to control multi-video walls
UPC: 813982021594 In the Box KanexPro 1 x 4 HDMI UHD 4K Video Wall Processor with Bezel Correction 12 VDC, 3 A Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 1 x 4 HDMI UHD 4K Video Wall Processor with Bezel Correction in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro VW-SP1X44K Specs | Material of Construction | Chassis: Metal | | Supported Resolutions | Input
640×480 @ 60/72/75/85
1280×768 @ 60/75
1024×768 @ 60/70/75/85
1280×1024 @ 60/75
800×600 @ 50/60/72/75/85
480p @ 60
576p @ 50
480 i@ 60
576i @ 50
720p @ 50/60
1080i @ 50/60
1080p @ 24/50/60
848×480 @ 60
852×480 @ 60
854×480 @ 60
1024×852 @ 60
1024×1024 @ 60
1280×800 @ 60
1280×960 @ 60
1360×768 @ 60
1366×768 @ 60
1440×900 @ 60
1400×1050 @ 60
1360×1024 @ 60
1600×900 @ 60
1600×1200 @ 60
1680×1050 @ 60
1920×1200 @ 60
2048×1080 @ 24
2048×1152 @ 60
3840×2160 @ 24/25/30
4096×2160 @ 24
Output
640×480
480p @ 60 (720×480)
576p @ 50 (720×576)
800×600
848×480
1024×768
720p @ 50 (1280×720)
720p @ 60 (1280×720)
1280×768
1280×800
1280×960
1280×1024
1360×768
1366×768
1400×1050
1440×900
1600×900 (RB)
1600×1200
1680×1050
1080p @ 50/60
1920×1200 (RB)
2048×1152 (RB)
1080i @ 50/60
1080p @ 24/25/30 | | Baud Rate | 115200 | | Connections | Input
1 x HDMI Type A
Outputs
4 x HDMI Type A
Control
1 x Ethernet Connector
RS-232
1 x D-Sub 9-pin
Power
1 x Coax Connector | | ESD Protection | Human Body Model:
Rating70% users recommend this product to others. And what about you?
