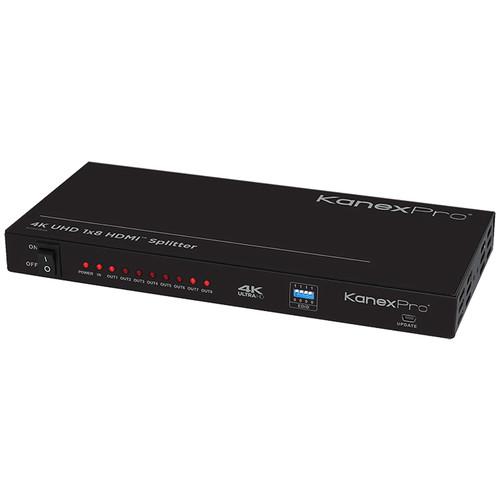

User Manual for KanexPro 1 x 8 4K HDMI Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the KanexPro 1 x 8 4K HDMI
- Product category: Distribution Amplifiers (DA's) KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Distribution Amplifiers (DA's)
|
User manual for the KanexPro 1 x 8 4K HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description Supporting HD and UHD resolutions, the KanexPro 1 x 8 4K HDMI Distribution Amplifier splits a single HDMI signal for identical output on up to 8 displays simultaneously with smart EDID management and while maintaining HDCP 2.2 protocol. Computer resolutions like 1920 x 1200 are also supported. Audio information, including multi-channel surround sound audio in various formats, also remains intact. The built-in signal amplifier can send HDMI signals up to 50 feet, but for longer cable runs, HDBaseT extenders are recommended. This unit is lightweight and sized for permanent mounting or portable use. Features - Distribute 4K HDMI video and audio signals to up to 8 displays
- Supports full HD 1080p and UHD resolutions
- Conforms to High-Speed HDMI specifications, maintaining Deep Color, HD lossless audio formats, and lip sync information
- Audio support includes Dolby Digital, DTS-HD, DTS-HD Master Audio, Dolby TrueHD, and LPCM 7.1 channel audio
- Built-in smart EDID control
- Front panel LEDs for input/output signal presence
UPC: 813982020207 In the Box KanexPro 1 x 8 4K HDMI Distribution Amplifier 5 VDC Power Supply Limited 1-Year Warranty Brochure PDF 519.3kbwqqsexazxfzayswuuzvsatbauf Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 1 x 8 4K HDMI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDSP184K Specs | I/O | Inputs: 1 x HDMI
Outputs: 8 x HDMI | | Video Amplifier Bandwidth | 10.2 Gbps | | Video Format Support | 2D max resolution - 3840 x 2160:
up to 30p at 24-bit RGB/YCbCr 4:4:4/YCbCr 4:2:2
up to 60p at 12-bit YCbCr 4:2:0
3D max resolution - 1920 x 1080:
&npsp;up to 60p (frame sequential) | | Color Depth | 12 bits per channel and xvYCC color space | | Input DC Current | 5 V | | Compliance | FCC, CE, UL | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Dimensions | 9.25 x 3.3 x 0.6" / 234 x 84 x 15 mm | | Weight | 0.8 lb / 360 g | | | | Package Weight | 2.38 lb | | Box Dimensions (LxWxH) | 11.9 x 9.45 x 2.45" |
