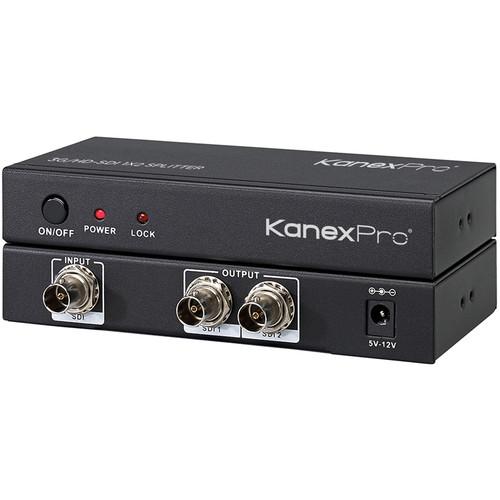

User Manual for KanexPro 1x2 3G HD SD-SDI Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the KanexPro 1x2 3G HD SD-SDI Distribution
- Product category: Distribution Amplifiers (DA's) KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Distribution Amplifiers (DA's)
|
User manual for the KanexPro 1x2 3G HD SD-SDI Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description Route an SDI source to multiple destinations using this KanexPro 3G/HD/SD-SDI Distribution Amplifier. This version takes one input and splits it into two. In addition to distribution, the unit also re-clocks the SDI signal before it outputs it in order to maintain integrity over long distances. This distribution amplifier supports SD, HD, and 3G-SDI signals to integrate into standard definition and high definition broadcast, CCTV, post-production, and cinema workflows. UPC: 813982020474 In the Box KanexPro 1x2 3G/HD/SD-SDI Distribution Amplifier Power Supply 5 VDC 1A Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 1x2 3G HD SD-SDI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro SP-SDIX2 Specs | Video Input | 1 x BNC (3G/HD/SD-SDI) | | Video Output | 2 x BNC (3G/HD/SD-SDI) | | Resolutions | 1080p 60/50/30/25/24
1080i 60/50
720p 60/50/30/25/24
NTSC
PAL | | Color Space | Bit depth: 8/10/12-bit
Sampling: RGB, YCbCr 4:4:4, YCbCr 4:2:2 | | Cable Equalization | 3G:
Input - 328' / 100 m
Output - 295' / 95 m
HD:
Input - 722' / 220 m
Output - 590' / 90 m
SD:
Input - 1000' / 300 m
Output - 918' / 280 m
Tested with RG6 cable | | Electrical Protection | Power reverse polarity protection: yes
Power overvoltage protection: up to 28 V
ESD protect: contact discharge at 8 KV, air discharge at 15 KV | | Environmental | Operating temperature: 32 to 158°F / 0 to 70°C
Operating humidity: 10 to 85% RH (no condensation)
Storage temperature: 14 to 176°F / -10 to 80°C
Storage humidity: 5 to 90% RH (no condensation) | | Compliance | FCC, CE, UL | | Power Requirements | 5-12 VDC input
Power consumption: 1.8 W (max)
Power supply: 5 VDC @ 1 A | | Dimensions | 2.8 x 5.7 x 1.0" / 70 x 145 x 25 mm | | Weight | 0.8 lb / 350 g | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.4 x 6.0 x 2.3" |
