User Manual for KanexPro 1x4 HDMI Distribution Amplifier and Cat5e 6 Extender Kit Click to enlarge the picture
Contents of the user manual for the KanexPro 1x4 HDMI Distribution Amplifier and
- Product category: Video Extenders & Repeaters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Video Extenders & Repeaters
 |
User manual for the KanexPro 1x4 HDMI Distribution Amplifier and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|

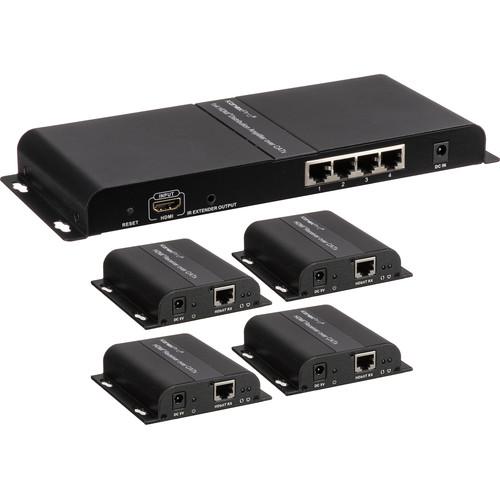

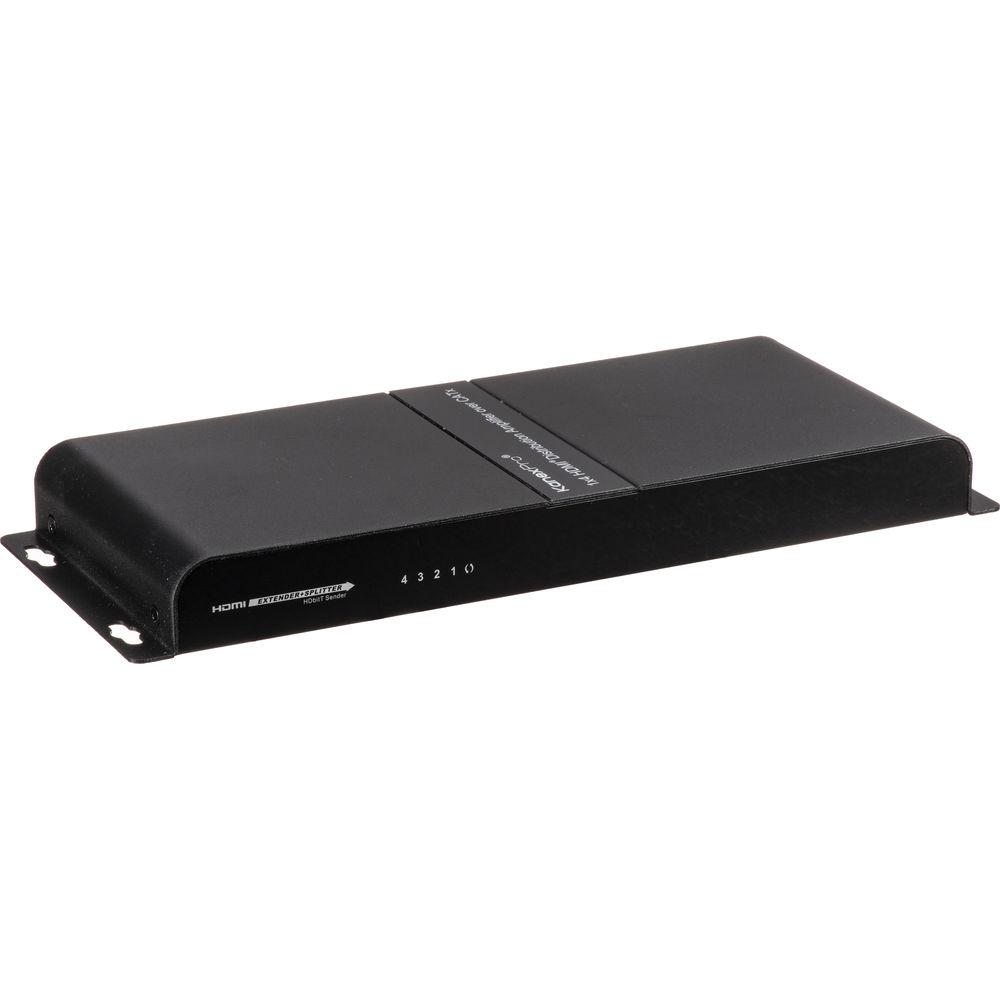

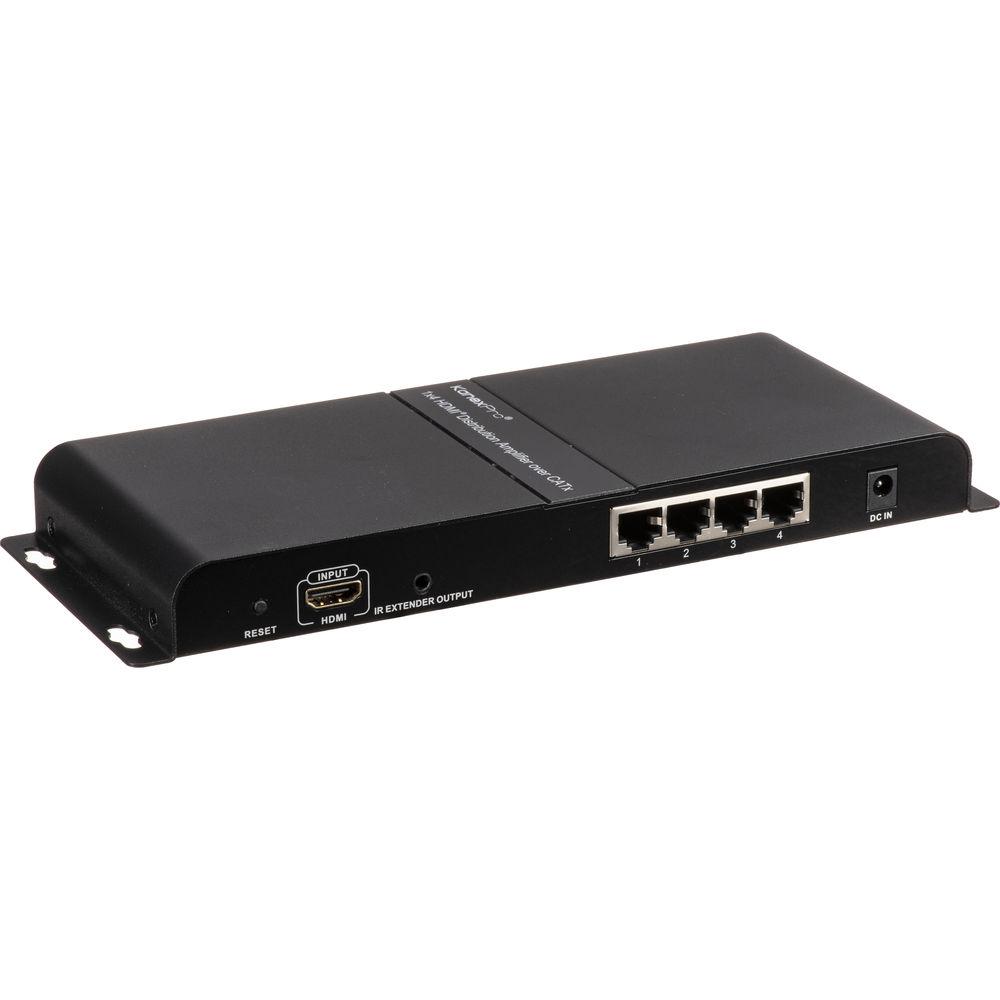

Product description Distribute a single SD or HD signal to up to four displays with this KanexPro 1x4 HDMI Distribution Amplifier and Cat5e/6 Extender Kit. The simple wiring and long transmission distances work well for conventions, events, houses of worship, and digital signage. This kit consists of a main transmitter hub which connects to the video source, and four receivers that connect to standard HDMI displays. Standard, readily available Cat5e or Cat6 cables connect the transmitter and the receivers to distances up to 398', much longer than standard HDMI cables, without any signal integrity loss. IR receiver kits are included to maintain remote control of your video source. The wall-mountable design allows the included units to retain a low profile for installation. Quick Features - Distribute and extend HDMI signals over Cat5e/6 to four HD displays

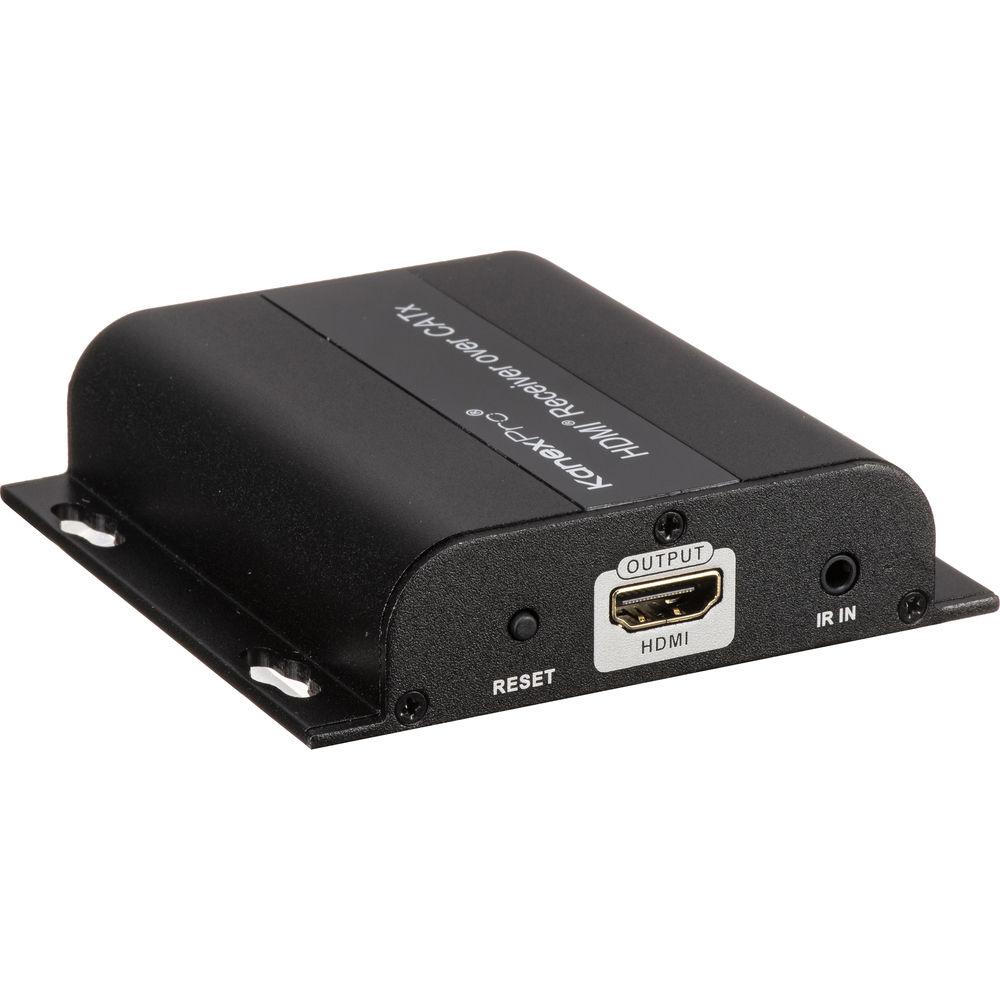

- Includes four independent receivers
- Supports transmission distance up to 394'
- Can be cascaded to drive more displays by adding a switch or a router
- Works on existing network without sacrificing bandwidth
- Control via IR (IR kits are included)
- Supports 5.1, 7.1, and LPCM digital audio
- Live status indicator through LEDs
- HDCP 1.4 & EDID support for multiple displays
UPC: 813982021143 In the Box KanexPro 1x4 HDMI Distribution Amplifier and Cat5e/6 Extender Kit Transmitter 4 x Receivers Power Supplies IR Transmission Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 1x4 HDMI Distribution Amplifier and Cat5e 6 Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro SP-HDCAT1X4 Specs | Inputs | Transmitter:
1 x HDMI
Receivers:
1 x RJ45, Ethernet | | Outputs | Transmitter:
4 x RJ45, Ethernet
Receivers:
1 x HDMI | | Resolution Support | 1080p
1080i
720p
576p
480p
NTSC
PAL | | Power Supply | Transmitter:
Input: 100-240 VAC, 50/60 Hz, 0.3 A
Output: 5 VDC, 2 A
Receivers:
Input: 100-240 VAC, 50/60 Hz, 0.2 A
Output: 5 VDC, 1 A | | Power Consumption | Transmitter: 3 W
Receivers: 2 W | | Operating Temperature | 32 to 140°F / 0 to 60°C | | Compliance | FCC, CE, UL | | Dimensions | Transmitter: 11.7 x 4.3 x 1.2" / 30 x 11.1 x 3 cm
Receiver: 3.8 x 3.7 x 0.9" / 9.7 x 9.4 x 2.4 cm | | Weight | Transmitter: 0.9 lb / 430 g
Receiver: 0.3 lb / 142 g | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 14.7 x 8.8 x 6.5" |
