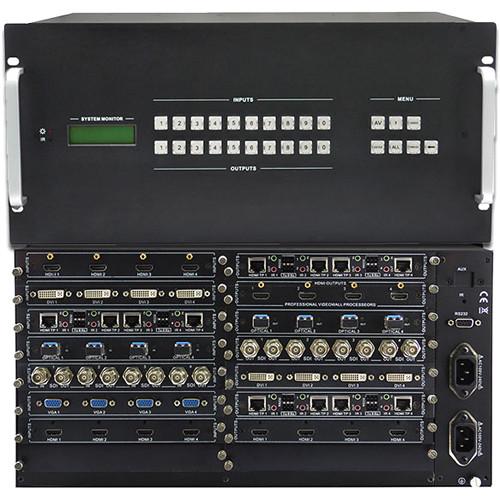

Product description The 5RU KanexPro 32x32 Modular Matrix Switcher Chassis supports various swappable I/O cards, providing up to 32 inputs and 32 outputs. This modular design allows you to choose the I/O connections to meet the demands of your application or installation, and even upgrade as AV signal routing needs change over time. The modular matrix supports various signals with cross-switching ranging from VGA, DVI, HDMI, and 3G/HD/SD-SDI, to HDMI over twisted pair and fiber optic input and output cards.
Every video or audio signal is transmitted and switched independently with power-fail memory function and audio breakaway. The matrix is fully controllable through RS-232 and optional TCP/IP when used with third-party control systems. The modular matrix is ideal for commercial applications such as control centers; smart lecture halls; and medical, government, and residential environments where signal management and distribution of high-resolution video signals and audio is critical. -
- Customizable 32x32 modular chassis serving various signal formats
- Supported formats: VGA, SDI, DVI, HDMI, HDBaseT & fiber optic (with appropriate I/O cards)
- High-bandwidth up to 10.2 Gbps
- Easy to upgrade, expand, and add modules
- Integrated signal processing
- Cross-point ultra-switching - tie any input to any output
- Signal re-clocking and equalizer built-in
- Advanced HDCP and EDID management
- Hot swappable design
- Illuminated buttons
- Front panel LCD
- Front panel security lock
- TCP/IP & RS-232 control
- Nine global presets
- Installer friendly
- Dual-internal power supply (100 to 240 VAC, 50/60Hz)
- 5U rack-mountable aluminum enclosure
In the Box KanexPro 32x32 Modular Matrix Switcher Chassis (5RU) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 32x32 Modular Matrix Switcher Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDMMX3232 Specs | Chassis Slots | 8 x input slot (32 inputs total)
8 x output slot (32 outputs total) | | Bandwidth | 340 MHz (10.2 Gbps) for each input/output | | I/O Impedance | 75 ohms | | Switching Speed | 200 ns (max) | | Max Delay | 5 ns (± 1 ns) | | Maximum Pixel Clock | 165 MHz | | Control | Serial Control Port: RS-232, 9-pin female D connector
Pin Configurations: 2 = TX, 3 = RX, 5 = GND
Front Panel Control: Buttons
TCP/IP Control via Ethernet | | Power Supply | 2 x 110 to 240 VAC, 50/60Hz | | Power Consumption | 50 W | | Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 10 to 90% | | Rack Height | 5U | | Dimensions | 19.0 x 8.6 x 12.6" (48.3 x 21.9 x 32.0 cm) | | Weight | 17.6 lb (8.0 kg) |
