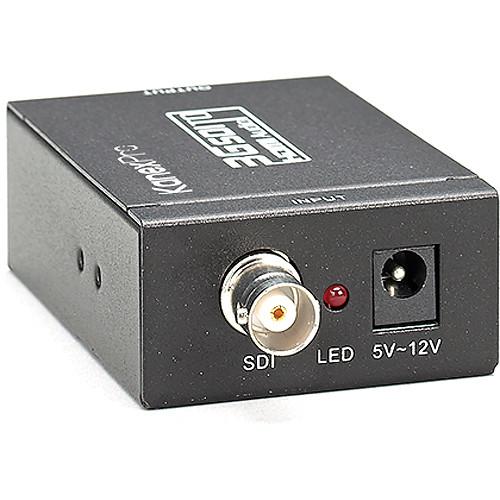

User Manual for KanexPro 3G HD SD-SDI to HDMI Converter Click to enlarge the picture
Contents of the user manual for the KanexPro 3G HD SD-SDI to HDMI
- Product category: Signal Converters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Signal Converters
|
User manual for the KanexPro 3G HD SD-SDI to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description A compact one-input/one-output converter with signal equalization and re-clocking, the KanexPro EXT-SDHDX lets you route an SDI signal to an HDMI display over long distances using optional extended-length cables on the SDI input side. Route up to 328 ft in 1080p and 984 ft in 480i/576i, with up to 8-channel / 48 KHz embedded audio. - Additional Features
-
- Integrated audio de-embedder (up to 8-ch / 48 KHz)
- Conversion from SMPTE 425M level B to Level A 1080p at 50/59.94/60, 4:2:2, 10-bit
- Automatically switches between 3G, HD, and SD SDI
UPC: 813982020061 In the Box KanexPro 3G/HD/SD-SDI to HDMI Converter 5 VDC Power Supply Operation Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 3G HD SD-SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro EXT-SDHDX Specs | Input | 1x 3G/HD/SD-SDI on BNC | | Output | 1x HDMI type A | | Output Resolutions | 1920 x 1080p@24/25/30/50/60
1920 x 1080i@50/60
1280 x 720p@24/25/30/50/60
480i (NTSC mode)
576i (standard PAL mode)
*Input frame rates not supported on output will get upscaled. For example, 23.94 fps will be output as 24 fps. | | Transmission Distance | On SDI Input Side:
1080p up to 328 ft (100 m)
480i/576i up to 984 ft (300 m) | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Operating Humidity | 10 to 85% RH (no condensation) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Storage Humidity | 5 to 90% RH (no condensation) | | Regulatory Approvals | Converter and Power Supply: FCC, CE, UL | | External Power Supply | 5 - 12 VDC | | Power Consumption | 5 W | | Dimensions | 3.1 x 1.6 x 1" (7.9 x 4 x 2.5 cm) | | Weight | 0.33 lb (150 g) | | | | Package Weight | 0.88 lb | | Box Dimensions (LxWxH) | 8.5 x 5.9 x 2.2" |
