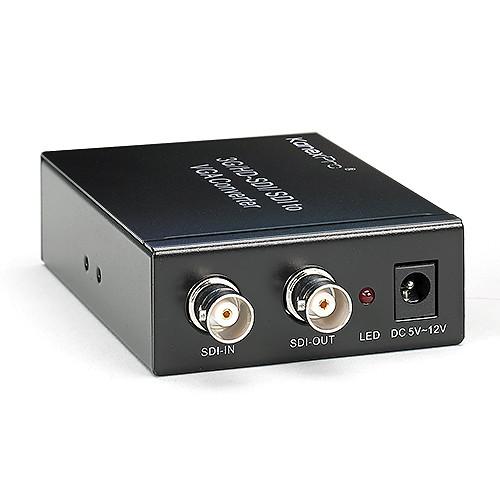

Product description A compact one-input/one-output device with signal equalization and re-clocking, the KanexPro SDI to VGA Converter allows you to connect a 1080p SDI signal from up to 328 ft away using an optional extended-length SDI cable on the input side. It also features an SDI loop-through, also equalized and re-clocked, for local monitoring, and a 3.5mm stereo audio output for headphone monitoring or routing independent audio. Output your SDI signal to a VGA monitor in up to 1080p with separate audio running to external speakers. - Key Features
-
- One-input/one-output converter with signal equalization and re-clocking
- SDI loop-through for local monitoring (also equalized and re-clocked)
- 3.5mm stereo audio output
- Connect a 1080p SDI signal from up to 328 ft away / 480i/576i signal from up to 984 ft
- Automatic detection of 3G, HD, and SD-SDI standards
- Cascadable down to multiple units
UPC: 813982020085 In the Box KanexPro 3G/HD/SD-SDI to VGA Converter 5 VDC Power Supply Operation Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 3G HD SD-SDI to VGA Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro EXT-SDIVGA Specs | Input | 1x 3G/HD/SD-SDI on BNC | | Output | 1x VGA
1x 3G/HD/SD-SDI loop-through on BNC
1x 3.5 mm stereo audio output | | SMPTE Standards Supported | 425M Level A & B, 424M, 292M, 259M-C | | Supported Input Resolutions | 1920 x 1080p at 24/25/29.97/30/50/59.94/60
1920 x 1080i at 50/60
1280 x 720p at 24/25/30/50/60
480i (NTSC mode)
576i (standard PAL mode) | | Output Resolutions | Up to 1920 x 1080p | | Transmission Distance | On SDI Input Side:
1080p up to 328 ft (100 m)
SD signals (480i at 60, 576i at 50) up to 984 ft (300 m) | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Operating Humidity | 10 to 85% RH (no condensation) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Storage Humidity | 5 to 90% RH (no condensation) | | Regulatory Approvals | Converter and Power Supply: FCC, CE, UL | | External Power Supply | 5 - 12 VDC | | Power Consumption | 5 W | | Dimensions | 3.5 x 2.4 x 1" (9 x 6 x 2.5 cm) | | Weight | 0.57 lb (258 g) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.5 x 5.9 x 2.2" |
