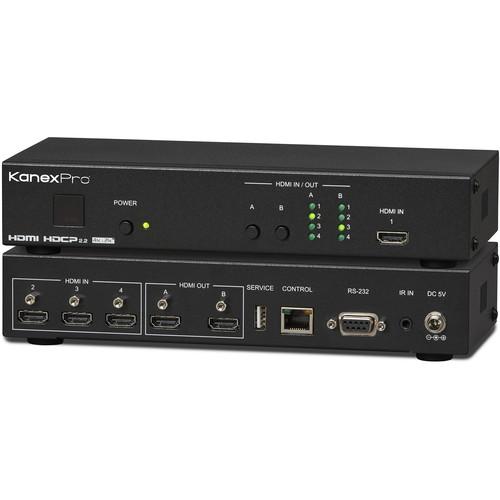

User Manual for KanexPro 4 x 2 HDMI 4K 60 Matrix Switcher with HDR10 & EDID Management Click to enlarge the picture
Contents of the user manual for the KanexPro 4 x 2 HDMI 4K
- Product category: Routers & Switchers KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Routers & Switchers
|
User manual for the KanexPro 4 x 2 HDMI 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The KanexPro 4 x 2 HDMI 4K/60 Matrix Switcher with HDR10 & EDID Management is a four input x two output matrix switcher that supports HDMI 2.0. This switcher allows you to feed any input to any output. It is well-suited to classrooms, corporate video, retail stores, and even home theaters that have two 4K displays that are fed from multiple 4K sources. The matrix switcher supports video from DCI 4K at 60 fps, which has a resolution of 4096 x 2160, to 480i at 60fps, which is the digital equivalent of SD video. It can also support computer resolutions from WUXGA down to VGA.
Supporting HDMI 2.0, HDCP 1.4 and 2.2, and being DVI 1.0 compliant allows this matrix switcher to support a wide range of formats, frame rates, and color depth to provide you video distribution with virtually no visual or audio compromises. Video with 4:4:4 color sampling and data rates up to 18 Gb/s are supported, as is HDR video, and the switcher will pass LPCM 7.1 audio. Control over the switcher is available through front-panel buttons, RS-232, Telnet, WebGUI (via Ethernet), and IR is used for control of attached devices. EDID management enables the switcher to communicate with HDCP enabled devices allowing it to accept the video signal. -
- Switch 4 HDMI devices to 2 displays
- Supports 4K/60, HDR, and 4:4:4
- Matrix routing of four 18 Gb/s HDMI inputs to two 18 Gb/s HDMI outputs
- Supports resolutions up to 4096
|
Upload User Manual
Have you got an user manual for the KanexPro 4 x 2 HDMI 4K 60 Matrix Switcher with HDR10 & EDID Management in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDMX42-18G Specs | Resolutions Supported | 480i @ 60 - 4K @ 60 Hz (4:4:4, 8-bit) VGA @ 60 Hz - WUXGA @ 60 Hz (RB) | | Video Bandwidth | 600 MHz / 18 Gb/s | | Connections | Input
HDMI: 4 x Type A
Output
HDMI: 2 x Type A
Interface
IR: 1 x 3.5 mm
RS-232: 1 x 9-Pin D-Sub
IP Control: 1 x RJ45 | | IR Frequency Range | 30 to 50 kHz
30 to 60 kHz (Under Ideal Conditions) | | Baud Rate | 115200 bps | | ESD Protection | Human Body Model:
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
