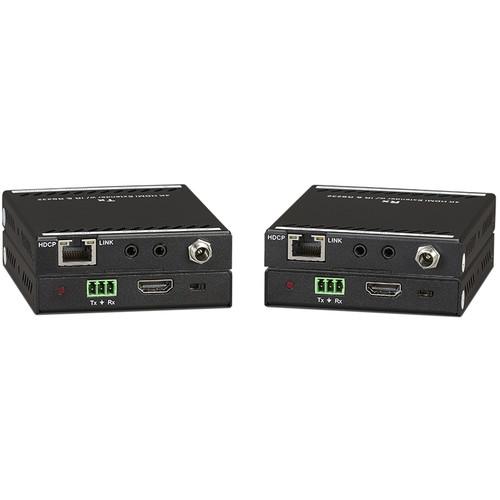

Product description Supporting 4K HDMI signals over category cable, the KanexPro 4K/30 HDMI Extender over HDBaseT enables extending transmission of 4K signals up to 131' and HD signals to up to 230'. It is well suited for use in residential applications, digital signage applications, as well as for sending HDMI signals in healthcare AV facilities, control rooms, educational facilities, and airports. This unit consists of both the transmitter and receiver. Following the HDBaseT protocol, the transmitter and receiver support PoH (Power over HDBaseT), which allows you to power both transmitter and receiver using only the one included power supply.
The EXT-HDBT70C transmitter/receiver pair supports HDCP 2.2 and is EDID compliant enabling it to support HDMI content. 10.2 GB/s of bandwidth allows it to easily support signals up to 4K2K @ 30 Hz, at distances up to 131'. The pair supports bidirectional RS-232 and IR control, Dolby TrueHD & DTS Master Audio, as well as uncompressed LPCM audio. An IR Emitter Cable, IR receiver cable, and a power supply are included. - Used to extend transmission distances for 4K2K signals up to 131' over a single Cat 5e/6 low-impedance STP (shielded-twisted pair) cable
- It supports control over RS-232 and IR
- The pair includes both an IR emitter and receiver cables. This allows you to control a device at the receiver end of the cable run from the transmitter
- Receiver can be powered directly by a power supply, or by Power over HDBaseT from the transmitter
- HDCP 2.2 and EDID compliant
- Supports CEC/IR/RS-232 pass-thru
- IR input/output - embedded over CATx extension
- Dolby TrueHD & DTS Master Audio ready
- Supports uncompressed audio - LPCM
UPC: 813982021624 In the Box KanexPro 4K/30 HDMI Extender over HDBaseT (131') Wideband IR Receiver Cable Wideband IR Emitter Cable Locking Power Supply 2 x Sets of Mounting Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 4K 30 HDMI Extender over HDBaseT in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro EXT-HDBT70C Specs | Chassis | Metal enclosure | | Interface | Transmitter Input
HDMI: 1 x type A
Transmitter Output
HDBaseT: 1 x RJ45
Transmitter Control Ports
RS-232: 3-pin captive screw connector
IR: 3.5 mm stereo jack
Receiver Input
HDBaseT: 1 x RJ45
Receiver Output
HDMI: 1 x type A
Receiver Control Ports
RS-232: 3-pin captive screw connector
IR: 3.5 mm stereo jack | | Video Signal | Input
HDMI 1.4
Output
Digital audio transmitted through HDMI audio | | Resolutions | 640x480 @ 60 Hz to 4K2K @ 30 Hz | | Transmission Mode | HDBaseT | | Transmission Distance | 4K2K: 131.23' / 40 m
1080p60: 229.66' / 70 m | | Bandwidth | 10.2 GB/s | | HDMI Standards | HDMI 1.4
HDCP 2.2 | | Impedance | 75 Ohms | | Power Consumption | 14 W max | | Power Supply | Input: 100 to 240 VAC, 50/60 Hz
Output: 24 VDC, 1.25 A | | Environmental | Temperature: 32 to 122°F / 0 to 50°C
Relative Humidity: 10 to 90% (non condensing) | | Dimensions | 4.17 x 0.60 x 3.30" / 10.59 x 1.52 x 8.38 cm (each) | | Weight | 0.55 lb / 0.25 kg | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 3.0" |
