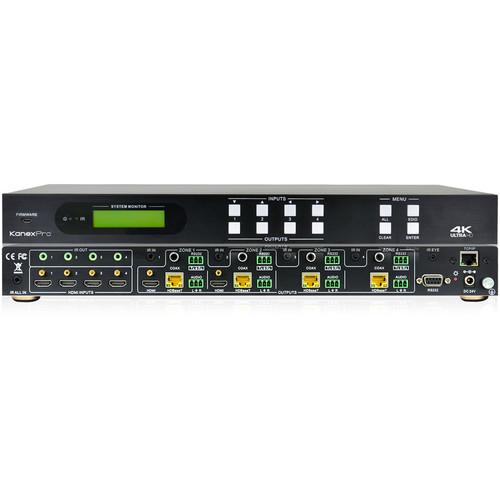

User Manual for KanexPro 4K HDBaseT 4x4 Matrix Switcher with PoE Click to enlarge the picture
Contents of the user manual for the KanexPro 4K HDBaseT 4x4 Matrix Switcher
- Product category: Routers & Switchers KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Routers & Switchers
|
User manual for the KanexPro 4K HDBaseT 4x4 Matrix Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The KanexPro 4K HDBaseT 4x4 Matrix Switcher with PoE is a professional four HDMI input to four HDBaseT output switch, providing two HDMI mirrored outputs designed for routing 4K/UHD applications. For proficient audio capabilities, it includes four stereo audio and four digital coax outputs for de-embedding to analog audio and HDMI digital audio respectively. Audio sources can also be selected via RS-232 commands. Selected audio is sent via HDMI outputs, HDBaseT outputs, and the audio output sockets.The matrix switcher also features an Ethernet port for control via web-based GUI, which reduces installation time and complicated set-up, as well as full control for the matrix. The HDMI inputs from the matrix can be controlled via front panel buttons, IR, RS-232, or through a web-based GUI using IP. The selected source is delivered to HDMI outputs 1 to 2 (for HDMI inputs 1 to 2) and HDBaseT outputs 1 to 4 simultaneously.Ideally designed for higher education environments such as smart classrooms, multi-zone residential homes, or commercial distribution applications, this matrix is rack-mountable and includes an international power supply. - Four sources switching to four outputs, with instant display
- Supports Power over Ethernet (PoE) to all four receivers
- Two HDMI mirrored outputs for local monitor support
- Deep Color support up to 16-bit
- RGB/YCbCr 4:4:4; YCbCr 4:2:2; 4K/30 Hz
- Illuminated buttons with front panel LCD
- Dedicated audio zones for digital and stereo audio
- Advanced EDID and HDCP management
- Bidirectional IR and RS-232 control
- Control via front panel, RS232, IR, or IP
- IR remote control included
- Easy firmware upgrade through Micro-USB port
- Rack-mountable 19" (1 RU) steel enclosure
- External international power supply (100 to 240 VAC, 50/60 Hz)
UPC: 813982020238 In the Box KanexPro 4K HDBaseT 4x4 Matrix Switcher with PoE IR Remote Control International Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 4K HDBaseT 4x4 Matrix Switcher with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro MX-HDBASE4X4-4K Specs | | | Video Input | 4 x HDMI | | Input Connector | HDMI, female | | Video Signal | HDMI, DVI, or DisplayPort | | Input Level | TMDS 2.9 to 3.3 V | | Input Impedance | 100 Ohms (Differential) | | | | Output | 2 x HDMI
4 x HDBaseT | | Output Connector | HDMI. female
RJ-45, female (with LED indicators) | | Signal | 1 x HDMI
1 x HDBaseT | | Output Level | TMDS 2.9 to 3.3 V | | Output Impedance | 100 Ohms (Differential) | | | | Gain | 0 dB | | Video Signal | HDMI (or DVI-D) | | Transmission Distance | 1080p @ 60 Hz: 230' (70 m)
4Kx2K @ 30 Hz: 115' (35 m)
4Kx2K @ 30 Hz: 26' (8 m) via HDMI | | EDID Management | Built-in EDID data and manual EDID management | | HDCP | Supports HDCP 1.4, auto and manual HDCP management | | Bandwidth | 10.2 Gb/s | | Resolution | Up to 4Kx2K @ 30 Hz | | Switching Speed | 200 ns, Maximum | | | | Output Signal | Stereo, digital audio | | Output Connector | 4 x 3-Pin pluggable terminal blocks
4 x Coax RCA | | Stereo Output | Earphone Output Distortion:
0.1% 32 Ohms / 70 MW @ 1 kHz
0.1% 16 Ohms / 105 MW @ 1 kHz | | HDMI Output | Supports PCM, Dolby Digital, DTS, DTS-HD | | Frequency Response | 20 Hz to 20 kHz | | | | Control | 4 x IR Out
4 x IR In
1 x IR Eye
1 x TCP/IP RJ45, female
1 x RS-232 9-pin, female
4 x RS-232, 3-pin pluggable terminal blocks | | Front Panel Control | Front panel buttons | | RS-232 Control | RS-232 9-pin, female | | IR | Built-in IR sensor
Extended IR receiver | | TCP/IP | Web-based GUI | | | | Temperature | 14 to 104°F (-10 to 40°C) | | Power Supply | 24 VDC, 2.5 A | | Humidity | 10 to 90% | | Power Consumption | 48 W, Maximum | | Dimensions (WxHxD) | 17.2 x 1.7 x 9.3" (437 x 44 x 235 mm)
1 RU High, full rack wide | | Weight | 4.4 lb (2 kg) | | | | Box Dimensions (LxWxH) | 14.0 x 5.0 x 2.11" |
