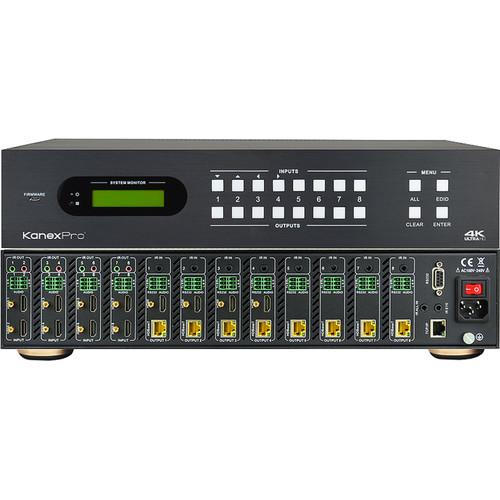

Product description The KanexPro 4K HDBaseT 8x8 Matrix Switcher with PoE is a professional eight HDMI input to eight HDBaseT output switch, providing four HDMI mirrored outputs designed for routing 4K/UHD applications. For proficient audio capabilities, it includes eight auxiliary audio inputs for stereo and eight stereo outputs for HDMI audio de-embedding, with eight IR inputs. The matrix switcher also features an Ethernet port for control via a web-based GUI which reduces installation time and complicated set-up, as well as full control for the matrix.The HDMI inputs from the matrix can be controlled via front panel buttons, bidirectional IR and RS232, or in GUI mode using Ethernet. The selected source is delivered to HDMI outputs 1 to 4 (for HDMI inputs 1 to 4) and HDBaseT outputs 1 to 8 simultaneously. The unit provides built-in EDID and HDCP management.This 8x8 Matrix Switcher is designed for mid-scale applications such as multi-zone home theater, court systems, and commercial AV distribution, such as sending high-resolution 4K ultra imagery to medical displays where signal integrity and reliability is critical. - Eight sources switching to eight outputs, with instant display
- Distribute six HDBaseT outputs, up to 230' at 1080p and 131' at 4Kx2K, on a single Cat5e/6 cable
- Supports Power over Ethernet (PoE) to all eight receivers
- Four HDMI mirrored outputs for local monitor support
- Deep Color support up to 16-bit
- RGB/YCbCr 4:4:4; YCbCr 4:2:2; 4K/30 Hz
- Illuminated buttons with front panel LCD
- Dedicated audio zones for digital and stereo audio
- Advanced EDID and HDCP management
- Bidirectional IR and RS-232 control
- Controllable via front panel, RS232, IR, or IP
- IR remote control included
- Easy firmware upgrade through Micro-USB port
- Rack-mountable 2 RU steel enclosure
- External international power supply (100 to 240 VAC, 50/60 Hz)
UPC: 813982020252 In the Box KanexPro 4K HDBaseT 8x8 Matrix Switcher with PoE IR Remote Control International Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 4K HDBaseT 8x8 Matrix Switcher with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro MX-HDBASE8X8-4K Specs | | | Video Input | 8 x HDMI | | Input Connector | HDMI, female | | Video Signal | HDMI, DVI | | Input Level | TMDS 2.9 to 3.3 V | | Input Impedance | 100 Ohms (Differential) | | | | Output | 4 x HDMI
8 x HDBaseT | | Output Connector | HDMI, female
RJ-45, female (with LED indicators) | | Signal | 1 x HDMI
1 x HDBaseT | | Output Level | TMDS 2.9 to 3.3 V | | Output Impedance | 100 Ohms (Differential) | | | | Gain | 0 dB | | Video Signal | HDMI (or DVI-D) | | Transmission Distance | 1080p @ 60 Hz: 230' (70 m)
4Kx2K @ 30 Hz: 131.2' (40 m)
4Kx2K @ 30 Hz: 26.2' (8 m) via HDMI | | EDID Management | Built-in EDID data and manual EDID management | | HDCP | Supports HDCP 1.4, auto and manual HDCP management | | Bandwidth | 10.2 Gb/s, 225 MHz | | Resolution | Up to 4Kx2K @ 30 Hz | | Switching Speed | 200 ns, Maximum | | | | Output Signal | Stereo audio | | Output Connector | 8 x 3-Pin pluggable terminal blocks | | Stereo Output | PCM Format Distortion:
0.1% 32 Ohms / 70 MW @ 1 kHz
0.1% 16 Ohms / 105 MW @ 1 kHz | | HDMI Output | Supports PCM, Dolby Digital, DTS, DTS-HD | | Frequency Response | 20 Hz to 20 kHz | | | | Control | 8 x IR Out
8 x IR In
1 x IR Eye
1 x TCP/IP RJ45, female
1 x RS-232 9-pin, female
8 x RS-232, 3-pin pluggable terminal blocks | | Front Panel Control | Front panel buttons | | RS-232 Control | RS-232 9-pin, female | | IR | Built-in IR sensor
Extended IR receiver | | TCP/IP | Web-based GUI | | | | Temperature | 14 to 104°F (-10 to 40°C) | | Power Supply | 100 to 240 VAC | | Humidity | 10 to 90% | | Power Consumption | 103 W, Maximum | | Dimensions (WxHxD) | 17.2 x 3.5 x 14.9" (437 x 87.8 x 380 mm)
1 RU High, full rack wide | | Weight | 11.9 lb (5.4 kg) | | | | Box Dimensions (LxWxH) | 14.0 x 5.0 x 2.11" |
