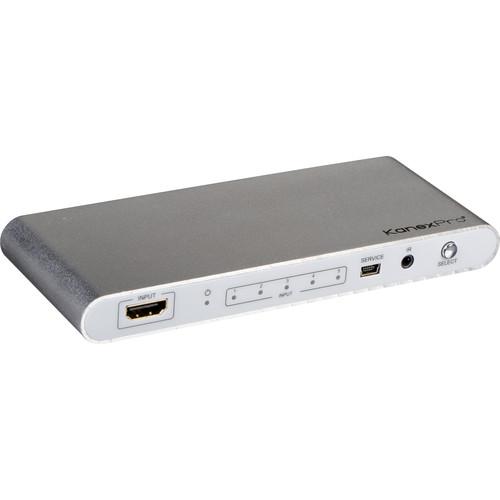

User Manual for KanexPro 4K HDMI 5x1 Switcher Click to enlarge the picture
Contents of the user manual for the KanexPro 4K HDMI 5x1 Switcher
- Product category: Routers & Switchers KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Routers & Switchers
|
User manual for the KanexPro 4K HDMI 5x1 Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description Switch between multiple 4K sources in your A/V setup with this KanexPro 4K HDMI 5x1 Switcher. Supporting resolutions of up to 4096 x 2160, this switcher will accept DCI 4K, UHD, HD, and SD content for viewing on your 4K display. If your source doesn't have an HDMI output, separately available converters allow compatibility with almost any device connection. For use with Blu-ray and other protected sources, the switcher is HDCP compliant up to 2.2 for displaying protected HD and 4K content. Embedded audio is passed through with support for 7.1-channel LPCM, Dolby TrueHD, and DTS-HD Master Audio. Input selection can be done automatically (whichever source is sending video), manually via a front-panel switch, or with the included IR remote. Features - Auto-switch five HDMI sources to one 4K display
- Digital audio support: LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Front panel LEDs for input/output signal presence
- Includes DC power supply and IR remote
UPC: 813982020429 In the Box KanexPro 4K HDMI 5x1 Switcher DC Power Supply Remote Control IR Receiver Extension Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 4K HDMI 5x1 Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro SW-HD20-5X14K Specs | I/O | Five HDMI inputs
One HDMI output | | Operating Frequency | 50/60 Hz | | Supported Resolutions | 4096x2160p 24/30
3840x2160p 60/50/30
1080p 60/50
1080i 60/50
720p 60/50
480p 60
576p 50
NTSC
PAL
VGA @ UXGA (1600 x 1200) | | Power Consumption | 2 W | | Power Supply | 5 VDC @ 1 A | | Compliance | FCC, Ce, UL | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | 2.5 x 6.1 x 0.7" / 64 x 155 x 17 mm | | Weight | 6.4 oz / 180 g | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.5 x 6.0 x 2.4" |
