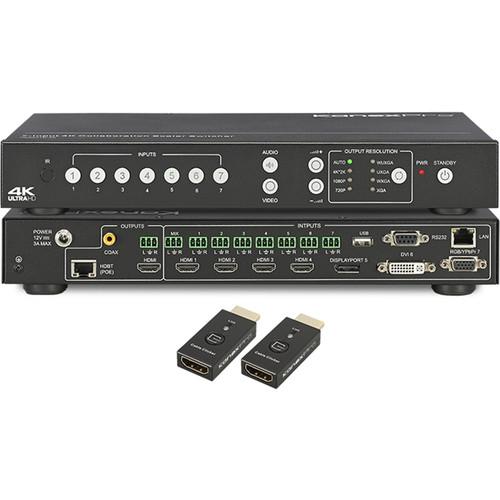

Product description The 4K Multi-Input Presentation Scaler Switcher from KanexPro is a seven-input, two-mirrored (HDMI and HDBaseT) output presentation scaler-switcher designed to support native UHD 4K inputs and output for collaboration and presentation systems. It consists of four HDMI inputs, one DisplayPort input, one DVI-I input, and one VGA/YPbPr input for connecting digital sources and analog VGA-based sources to dual 4K displays, with resolution support up to 3840 x 2160. This HDCP-compliant switcher provides built-in EDID management for faster output to displays, and support control via front-panel buttons, RS-232, and a web-based interface to work with any third-party control systems. The scaler is designed for classrooms, conference rooms, huddle rooms, and other collaborative spaces where digital and analog sources need to be switched and scaled in a fast and reliable manner. - Engine with 4K scaling to support upscaling and downscaling
- Includes two HD-CLICKERS for Click to Show-Me control of your content
- Accepts 4K input resolutions 3840 x 2160 at 30 Hz
- Native 4K input/output scaling
- Independent audio switching
- Supports auto-scaling by auto-detecting EDID from display to scale optimized resolution
- DisplayPort input resolution up to 3840 x 2160 at 60 Hz
- Supports MHL inputs via HDMI
- Unbalanced stereo analog and digital coaxial audio output
- Supports auto-selection of active HDMI audio (high-priority) or external stereo audio
- Control via front panel buttons, IR, RS232, and LAN
- Integrates with table or wall cable connection boxes in conference applications
- Portable mountable enclosure
UPC: 813982020603 In the Box KanexPro 4K Multi-Input 7x2 Presentation Scaler Switcher Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 4K Multi-Input 7x2 Presentation Scaler Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDSC71D-4K Specs | Maximum Supported Resolutions | 3840 x 2160 @ 30 Hz | | Video Input | 4 x HDMI type A, female
2 x DisplayPort 20-pin, female
1 x 15-Pin VGA, female | | Video Output | 1 x HDMI type A, female | | Audio Input | 7 x 3.5 mm Stereo mini | | Audio Output | 1 x Optical | | RS-232 | 1 x DB-9, female | | LAN | IP control | | USB | Reserve for firmware update | | Buttons | 4 x Screen layout select
4 x Video select
7 x Inputs select
1 x Audio select
1 x Output resolution select
1 x On/Standby | | Indicators | 8 x Output resolution indicators
1 x Power indicator | | Power Input | 110 to 240 VAC | | Power Consumption | 15 W Maximum | | Dimensions | 12.6 x 1.7 x 7.3" (32.1 x 4.4 x 18.5 cm) | | Weight | 3.3 lb (1.5 kg) |
