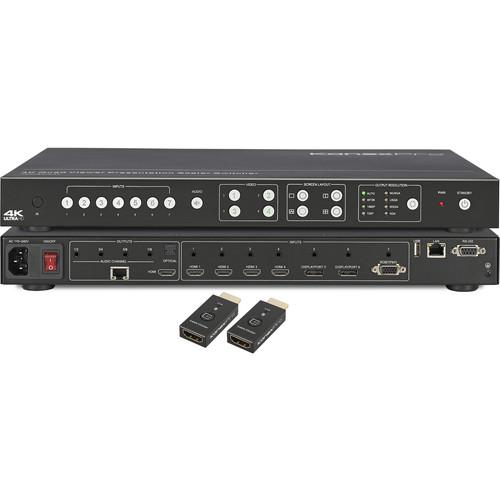

User Manual for KanexPro 4K Tiler Scaler Switcher with HDBaseT and Click to Show-Me Controller Click to enlarge the picture
Contents of the user manual for the KanexPro 4K Tiler Scaler Switcher with
- Product category: Routers & Switchers KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Routers & Switchers
|
User manual for the KanexPro 4K Tiler Scaler Switcher with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The 4K Video Tiler/Scaler Switcher with HDBaseT and Click to Show-Me Controller from KanexPro is a seven-input, two-mirrored (HDMI and HDBaseT) output presentation scaler switcher engineered to upscale HDMI, DisplayPort, and VGA devices such as laptops, Blu-ray players, and desktops to a true 4K 30Hz resolution. It allows you to create a quad window experience in any collaboration space.Inputs include four HDMI, two DisplayPort, and one VGA with mirrored HDMI and HDBaseT output supporting distances up to 230' over Cat6 with PoC. Compliant with HDCP 2.2 specifications, this quad-viewer can also be controlled via RS-232 and TCP/IP. It supports native 4K inputs and outputs with audio de-embedder and breakaway audio switching to support unbalanced stereo. This switcher is suitable for use in collaboration, meeting rooms, classrooms, and videoconferencing applications. - Click to Show-Me using included HDMI cable controllers
- Engine with 4K scaling to support upscaling and downscaling
- Supports quad-view windowing from four inputs
- Supports HDMI and DisplayPort with input resolutions up to 3840 x 2160 at 30 Hz
- Supports multiple HDMI output resolutions
- Output scaler up to 3840 x 2160 at 30 Hz
- Lets you independently select the source to be assigned on any viewer
- Incorporates DP 1.2a resolutions up to 3840 x 2160 at 60 Hz
- Supports MHL inputs via HDMI
- Support auto-scaling by auto-detecting EDID from display to scale optimized resolution
- Provides breakaway audio switch
- Audio embedding and de-embedding
- Support auto-selection of active HDMI audio (high-priority) or external stereo audio
- Provisions unbalanced 7.1 analog audio or optical digital audio output
- Control via front panel buttons, IR, RS232, and LAN
- Easily integrates with any videoconferencing systems such as Polycom, Cisco, and Avaya
- Integrates with table or wall cable connection boxes in conference applications
- Rack-mountable 1 RU enclosure
- Designed for 4K-themed conference rooms, control rooms, huddle rooms, and other collaborative spaces where digital and analog devices need to be switched, scaled, and shared onto large 4K displays
UPC: 813982020573 In the Box KanexPro 4K Tiler/Scaler Switcher with HDBaseT and Click to Show-Me Controller External AC Power Cord IR Remote Control Unit 2 x Rack Mount Ear Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 4K Tiler Scaler Switcher with HDBaseT and Click to Show-Me Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDBT-VTSC72-4K Specs | | | Video Input Format | 1 x 15-Pin VGA, RGB, H/V
4 x HDMI
2 x DisplayPort | | Compliance | HDMI v1.4
DVI v1.0
DisplayPort v1.2
HDCP v1.4 | | Video Output Format | 1 x HDMI | | Supported Color Depth | 8-bit / 10-bit / 12-bit | | EDID | Advanced EDID management utilities | | Audio Input Format | HDMI and DisplayPort: Embedded digital audio
External Analog Stereo Audio: 20 kOhms impedance | | Audio Output Format | HDMI: Embedded digital audio
7.1 Surround Sound Audio: 20 kOhms impedance
TOSLINK: Digital optical audio | | Audio Bandwidth | 20 Hz to 20 kHz | | Audio Sampling Rate | 48 kHz, 8-channel, LPCM | | Audio Level | Stereo Audio: Unity, nominal, 0.5 to 1 Vpp | | Audio Delay | User-adjustable from 0 to 400 ms in increments of 40 ms | | | | Loops | Phase Lock Loops: Triple ADC, 12-bit | | De-interlacing | 3D motion-adaptive deinterlacing | | Pull Down | Automatic 3:2 pull-down and 2:2 pull-down detection and recovery | | Noise Reduction | 3D | | Settings | Display: Output resolution, window layout, video input position, aspect ratio, VGA auto-adjust | | | | Front Panel | 18 x Backlit buttons | | IR Remote Control | IR remote control with 19 buttons for control | | RS-232 | Serial communication, 9-pin D-sub connector | | Ethernet | Web-based GUI or Telnet | | | | Input | 4 x HDMI/DVI-D, female
2 x 20-Pin DisplayPort with locking mechanism, female
1 x 15-Pin VGA analog RGB, female
7 x 3.5 mm PC analog stereo audio, female
1 x IEC C14 power connector | | Output | 1 x HDMI, female
1 x TOSLINK optical digital audio, female
4 x 3.5 mm PC 7.1 Surround sound analog audio, female | | | | Input | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 15 W Maximum | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 20 to 90%, non-condensing | | | | Mounting Options | Mountable rack ears, 1 RU full width | | Construction | 0.04" (1 mm) Metal enclosure with matte black finish
0.4" (10 mm) Aluminum alloy front panel with draw black finish | | Dimensions | Without Feet or Rack Ears: 1.7 x 17.3 x 11.0" (4.3 x 43.9 x 27.9 cm)
With Feet: 2.0 x 17.3 x 11.0" (5.0 x 43.9 x 27.9 cm)
With Rack Ears: 1.7 x 19.0 x 11.0" (4.3 x 48.3 x 27.9 cm) | | Weight | 7.3 lb (3.3 kg) |
