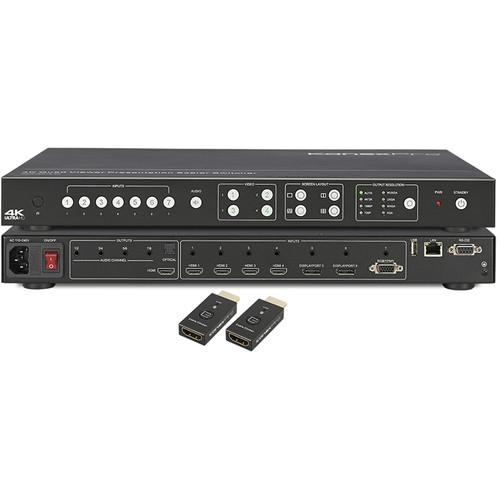

Product description The 4K Video Tiler/Scaler Switcher with HDMI & Click-to-Show Me Controller from KanexPro is a seven-input, one HDMI output presentation scaler-switcher designed to upscale HDMI, DisplayPort, and VGA devices such as laptops, Blu-ray players, and desktops to a true 4K 30 Hz resolution. It allows you to create a quad-window experience in any collaboration space.Inputs include four HDMI, two DisplayPorts, and one VGA with HDMI output. Compliant with the HDCP specifications, this quad-viewer can also be controlled via RS-232 and TCP/IP. It supports native 4K inputs and outputs with audio de-embedder and breakaway audio switching to support unbalanced stereo. It is suitable for use in collaboration, meeting rooms, classrooms, and videoconferencing applications. - Up-scaling and down-scaling support from 4K scaling engine
- Includes two 4K-HDCLICKERS for Click-to-Show me your content
- Supports quad-view windowing from four inputs
- Output scaler up to 3840 x 2160 at 30 Hz
- Lets you independently select the source to be assigned on any viewer
- Incorporates DP 1.2a resolutions up to 3840 x 2160 at 60 Hz
- Supports MHL inputs via HDMI
- Support for auto-scaling by auto-detecting EDID from display to scale optimized resolution
- Provides break-away audio switch
- Audio embedding and de-embedding
- Supports auto-selection of active HDMI audio (high-priority) or external stereo audio
- Provisions unbalanced 7.1 analog audio or optical digital audio output
- Control via front panel buttons, IR, RS232, and LAN
- Easily integrates with any videoconferencing systems such as Polycom, Cisco, and Avaya
- Integrates with table or wall cable connection boxes in conference applications
- Rack-mountable 1 RU enclosure
UPC: 813982020634 In the Box KanexPro 4K Video Tiler/Scaler Switcher with HDMI & Click-to-Show Me Controller AC Power Cord IR Remote Control Unit 2 x Rack Mount Ear Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 4K Video Tiler Scaler Switcher with HDMI & Click-to-Show Me Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HD-VTSC72-4K Specs | | | Video Input | 1 x 15-pin VGA
4 x HDMI
2 x DisplayPort | | Compliance | HDMI v1.4
DVI v1.0
DisplayPort v1.2
HDCP v1.4 | | Video Output | 1 x HDMI | | Supported Color Depth | 8-bit / 10-bit / 12-bit | | EDID | Advanced EDID management utilities | | Audio Input | HDMI and DisplayPort: Embedded digital audio
External Analog Stereo Audio: 20 kOhm impedance | | Audio Output | HDMI: Embedded digital audio
7.1 Surround Sound (Analog) Audio: 20 kOhm impedance
TOSLINK: Digital optical audio | | Audio Bandwidth | 20 Hz to 20 kHz | | Audio Sampling Rate | 48 kHz, 8-Channel, LPCM | | Audio Level | Stereo Audio: Unity, nominal, 0.5 to 1 Vpp | | Audio Delay | User-adjustable from 0 to 400 ms in increments of 40 ms | | | | Input | HDMI/DVI-D: 4 x HDMI 19-Pin, female
DisplayPort: 2 x 20-Pin DisplayPort with lock, female
Analog RGB: 1 x 15-Pin VGA, female
Analog Audio: 7 x Stereo audio on 3.5 mm mini, female
Power: 1 x IEC C14 | | Output | HDMI: 1 x HDMI 19-pin, female
Digital Audio: 1 x TOSLINK optical, female
Analog Audio: 7.1 Surround Sound (analog) on four 3.5 mm mini, female | | | | Loops | Phase Lock Loops: 12-bit, triple ADC | | De-interlacing | 3D Motion-adaptive de-interlacing | | Pull Down | Automatic 3:2 and 2:2 pull-down detection and recovery | | Noise Reduction | 3D | | Display | Setting: Output resolution, window layout, video input position, aspect ratio, VGA auto adjust | | | | Front Panel | 18 x Backlit buttons | | IR Remote Control | IR Remote control with 19 buttons for control | | RS-232 | Serial communication, 9-pin D-sub connector | | Ethernet | Web-based GUI or Telnet | | | | AC Power | 100 to 240 VAC; 50/60 Hz | | Power Consumption | 15 W Maximum | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 20 to 90%, Non-condensing | | | | Mounting Options | Mountable rack ears, 1 RU full width | | Construction | 0.04" (1 mm) Metal enclosure with matte black finish
0.4" (10 mm) Aluminum alloy front panel with draw black finish | | Dimensions | Without Feet or Rack Ears: 1.7 x 17.3 x 11.0" (4.4 x 43.9 x 27.9 cm)
With Feet: 2.0 x 17.3 x 11.0" (5.0 x 43.9 x 27.9 cm)
With Rack Ears: 1.7 x 19.0 x 11.0" (4.4 x 48.2 x 27.9 cm) | | Weight | 7.3 lb (3.3 kg) |
