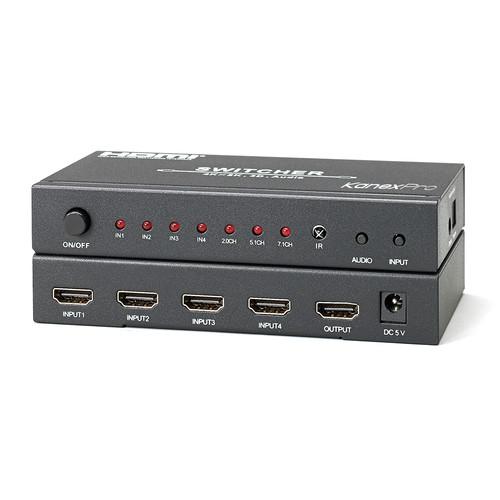

User Manual for KanexPro 4x1 HDMI Switcher with 4K Support & Audio Output Click to enlarge the picture
Contents of the user manual for the KanexPro 4x1 HDMI Switcher with 4K
- Product category: Routers & Switchers KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Routers & Switchers
|
User manual for the KanexPro 4x1 HDMI Switcher with 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description This KanexPro 4x1 HDMI Switcher combines Ultra HD 4K supports with independent 3.5mm and Toslink audio outputs. Toggle between four HDMI sources in up to Ultra HD 4K 3840 x 2460 resolution and select between 2.1, 5.1, and 7.1 channel audio output. - Key Features
-
- 4 inputs/1 output and independent 3.5mm and Toslink audio outputs
- Supports up to UltraHD 4K 3840x2160 resolution and lossless audio formats
- 3DTV pass-through
- Up to 12-bit Deep Color support
- Lip Sync pass-through
- Front panel and remote control switching
- Front panel audio selection button
- HDCP and EDID compliant
- Front-panel input and audio LEDs
UPC: 813982020023 In the Box KanexPro 4x1 HDMI Switcher with 4K Support & Audio Output 5 VDC Power Supply Remote Control Operation Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 4x1 HDMI Switcher with 4K Support & Audio Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro SW-HD4X1AUD4K Specs | Inputs | 4x HDMI 1.4a | | Outputs | 1x HDMI 1.4a
1x 3.5 mm stereo audio
1x Toslink | | Input DDC Signal | 5 V p-p (TTL) | | Vertical Frequency Range | 50/60 Hz | | Video Amplifier Bandwidth | 2.97 Gbps per channel | | Supported Resolutions | 480p/576p/720p/1080p at 50/60 Hz, UltraHD 4K 3840x2160 at 30 Hz, 1080i/576i/480i at 50/60 Hz | | Audio Output Format | PCM 2 channel, 5.1 channel, 7.1 channel, Dolby 5.1, DTS 5.1, D-TrueHD, DTS-HD | | Power Consumption | 3 W | | External Power Supply | 5 VDC at 1 A (US/EU standard) | | Power Supply | CE/FCC/UL certified | | Approvals | FCC, Ce, UL | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 6.4 x 3.3 x 1" (16.3 x 8.4 x 2.5 cm) | | Weight | 0.8 lb (350 g) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 8.8 x 5.9 x 2.2" |
