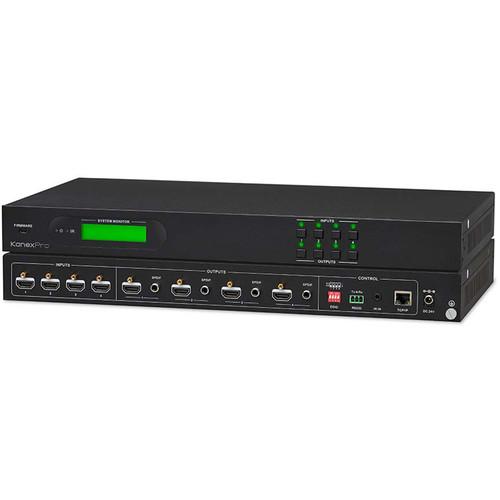

User Manual for KanexPro 4x4 HDMI 2.0 Matrix Switcher with 4K 60 Hz Click to enlarge the picture
Contents of the user manual for the KanexPro 4x4 HDMI 2.0 Matrix Switcher
- Product category: Routers & Switchers KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Routers & Switchers
|
User manual for the KanexPro 4x4 HDMI 2.0 Matrix Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The 4x4 HDMI 2.0 Matrix Switcher with 4K / 60 Hz from KanexPro is a 4-input, 4-output HDMI matrix that features HDCP 2.2 with HDMI 2.0 specifications supporting UHD resolutions up to 4K at 60 Hz. With switching speeds of less than 0.2 seconds, it provides four additional audio ports via S/PDIF connectors to support audio de-embedding from HDMI. You can control it via RS-232, IR, and Web-based GUI using Ethernet where end-users can switch, control, and manage the matrix using graphical and visual indicators right from the computer or touch-panel.
The HDCP 2.2 authentication ensures proper handshake of the protected content and maintains resolutions up to 4K (4096 x 2160) at 30/50/60 Hz, 3840 x 2160 at 24/25/30/50/60 Hz, and 2560 x 1080 at 60 Hz displaying 21:9 aspect ratio. The 1920 x 1200 resolution is standard for this switcher. The built-in EDID/DDC database can analyze EDID and DDC signals, mix them, and realize the handshake internally. -
- Cross-switch 4 HDMI inputs to 4 HDMI outputs with 4K at 60 Hz resolution
- Four independent S/PDIF audio for audio de-embedding from HDMI
- Distributes 4K x 2K at 60 Hz signal up to 32.8'
- Supports 4:2:2 color sampling rate with 10-bit HDR
- Supports standard 1080p and WUXGA resolutions up to 2560 x 1080 at 60 Hz
- HDCP 2.2 compliant
- Built-in HDCP management technology can analyze HDCP key authentication
- EDID DIP switch for proper display output
- Supports high-speed HDMI specifications
- Supports Dolby Digital, DTS, and DTS-HD
- Control through front-panel keys, IR, RS-232, and Web-based GUI
- Front-panel LCD screen provides real-time I/O connection status
- Firmware upgrade via micro-USB port
- 1 RU (19") rack-mountable aluminum enclosure
- Built-in web GUI for control
- Locking HDMI and power supply
- Universal RS-232 code compatible with any third-party control system
- Internal universal power for worldwide compatibility
UPC: 813982021389 In the Box KanexPro 4x4 HDMI 2.0 Matrix Switcher with 4K / 60 Hz RS-232 Cable (3-Pin to DB9) IR Remote 4 x Plastic Cushions IR Receiver Mounting Hardware Power Adapter (24 VDC, 1.25A) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 4x4 HDMI 2.0 Matrix Switcher with 4K 60 Hz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDMX44-18G Specs | | | Input/Output | Input: 4 x HDMI
Output: 4 x HDMI | | Connectors | Input: Female type A HDMI
Output: Female type A HDMI
3.5 mm, RCA connector | | Input Level | T.M.D.S. 2.9 V / 3.3 V | | Output Level | T.M.D.S. 2.9 V / 3.3 V | | Impedance | Input: 75 Ohms
Output: 75 Ohms | | Gain | 0 dB | | Bandwidth | 18 Gb/s | | Video Signal | HDMI | | Maximum Pixel Clock | 165 MHz | | Supported Resolutions | 4K: 4096 x 2160 (30/50/60 Hz), 3840 x 2160 (24/25/30/50/60 Hz)
21:9: 2560 x 1080 (60 Hz)
16:9: 1920 x 1080 (1080p 3D), 1600 x 900, 1366 x 768, 1280 x 720, 1024 x 576 (60 Hz)
16:10: 1920 x 1200, 1680 x 1050, 1440 x 900, 1360 x 768, 1280 x 800 (60 Hz)
4:3: 1600 x 1200, 1400 x 1050, 1280 x 1204, 1024 x 768, 800 x 600, 640 x 480 (60 Hz) | | Switching Speed | 200 ns maximum (0-2 seconds) | | Consumer Electronics Control | Supports CEC via infrared data pass-through | | | | Digital Audio Output | Supports HDMI audio transmitted through the RGB and Y, Cr, Cb lines, actively buffered
Supports de-embedded SPDIF audio via digital coaxial output | | | | Serial Control | RS-232, 9-pin female D connector | | Pin Configurations | 2 = TX, 3 = RX, 5 = GND | | IR Remote | Default | | Front Panel Control | Buttons | | Ethernet | RJ45: TCP/IP control via Ethernet controller and web-based GUI | | | | Power Supply | 24 VDC | | Power Consumption | Full Load: 13.3 W
Standby: 4.4 W | | Temperature | Not specified by the manufacturer | | Humidity | 10 to 90% | | Dimensions | 19 x 1.7 x 9.3" (48.3 x 4.3 x 23.6 cm) (1 RU,, full-rack wide) | | Weight | 2.6 lb (1.2 kg) | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 21.2 x 13.4 x 5.7" |
