User Manual for KanexPro 5-Input Multi-Presentation Scaler & Switcher with HDBaseT Out Click to enlarge the picture
Contents of the user manual for the KanexPro 5-Input Multi-Presentation Scaler & Switcher
- Product category: Routers & Switchers KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Routers & Switchers
 |
User manual for the KanexPro 5-Input Multi-Presentation Scaler & Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|

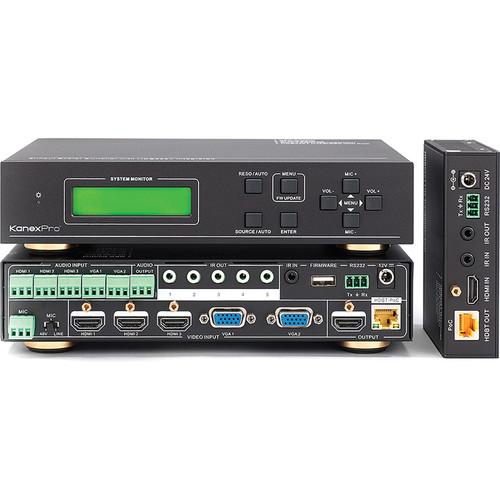

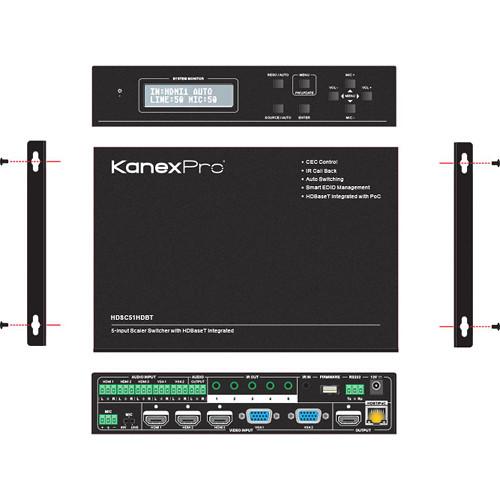

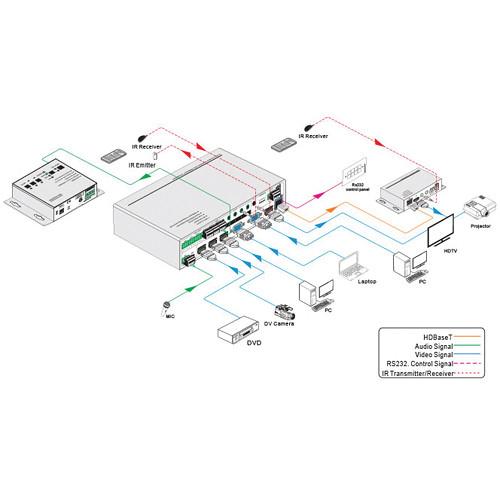

Product description The KanexPro 5-Input Multi-Presentation Scaler & Switcher with HDBaseT Out allows you to toggle between three HDMI and two VGA inputs for presentation in conference rooms, lecture halls, and other locations with legacy video sources. The switcher features one HDMI and one RJ45 output, the latter allowing a 230 ft transmission to an included HDBaseT receiver over a shielded CAT6 cable, ideal for connecting to wall-mounted or ceiling-mounted displays. The switcher allows you to scale all your signals to up to 1920 x 1080 and 1920 x 1200. It's designed compact and intended for installation underneath conference tables or in cabinets, credenzas, or lecterns. The HDBaseT receiver is powered by PoE from the switcher.
Separate audio is supported for each video input, and a mic is supported, via independent 3P captive connectors that you can connect to an amplifier (using 3.5mm to 3P captive cables). The mic input supplies 48V phantom power and supports balanced and unbalanced audio and condenser, dynamic, and wireless mics. RS-232 control is also supported via a 3P captive connector. The switcher offers bi-directional wide-band IR support and includes five IR transmitters and emitters. - Key Features
-
- Three HDMI and two VGA inputs
- HMDI output
- RJ45 output to an included HDBaseT receiver, 230 ft transmission over CAT6
- Scales up to 1920 x 1080 and 1920 x 1200
- HDBaseT receiver is powered by PoE from the switcher
- Independent 3P captive audio inputs and mic input
- Mic input supplies 48V phantom power and supports condenser, dynamic, and wireless mics
- Bi-directional wide-band IR support
- RS-232 control
UPC: 814556016626 In the Box KanexPro 5-Input Multi-Presentation Scaler & Switcher with HDBaseT Out HDBaseT Receiver Power Supply for Main Unit 5 x IR Transmitters 5 x IR Emitters IR Remote Control Rack Ears for Mounting Underneath Desks, Podiums, Etc. Set of 4 Desktop Feet 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 5-Input Multi-Presentation Scaler & Switcher with HDBaseT Out in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDSC51HDBT Specs | | | Video Inputs | 3 x HDMI
2 x VGA 15-pin | | Video Signal | Input: HDMI, YPbPr, C-video, VGA; Output: HDMI, HDBaseT | | Video Outputs | 1 x HDMI
1 x RJ45 | | IR Input / Output | 1 x IR input / 5x IR outputs on 3.5 mm mini jacks | | Audio Input | 3 x 3P captive female (3.8 mm) dual mono / stereo audio for HDMI
2 x 3P captive female (3.8 mm) dual mono / stereo audio for VGA (supports C-Video, YPbPr, VGA)
10K impedance | | Mic Input | 1 x 3P captive female (3.8 mm) balance/unbalanced, supplies 48 V phantom power | | Audio Output | 1 x 3P captive female (3.8 mm) stereo
50K impedance | | Supported Resolution | 1024x768, 1280x720, 1280x800, 1920x1080, 1600x1200, 1920x1200 | | Bandwidth | HDMI: 4.95 Gbps (1.65 Gbps per color), C-Video: 150 MHz, YPbPr: 170 MHz, VGA: 375 MHz | | Maximum Pixel Clock | 165 MHz | | Impedance | 75 ohm | | Gain | 0 dB | | Input / Output Level | 0.5 - 2.0 V p-p | | HDCP Compliance | Compliant with DVI and HDMI 1.3 standards | | Frequency Response | 20 Hz - 20 KHz | | Stereo Channel Separation | > 80 dB @ 1 KHz | | CMRR | > 90 dB @ 20 Hz to 20 KHz | | RS-232 | 1x 3P captive male (3.8 mm) | | Operating Temperature | -4 to 150°F (-20 to 70°C) | | Humidity | 10 - 90% | | Power Supply | 12 VDC, 0.5 V | | Power Consumption | 8 W when only the Switcher is powered; 16 W when the switcher additionally supplies PoE to the HDBaseT receiver | | Dimensions | 8.7 x 1.7 x 5.8" (22 x 4 x 15 cm) | | Weight | 1.5 lb (0.67 kg) | | | | Inputs | 1 x RJ45
1 x IR on 3.5 mm mini jack
1 x RS-232 on 3P captive female (3.8 mm) | | Outputs | 1 x HDMI
1 x IR on 3.5 mm mini jack | | Power | PoE from the switcher; optional 24 V DC PSU supported | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 11.7 x 7.6 x 4.8" |
