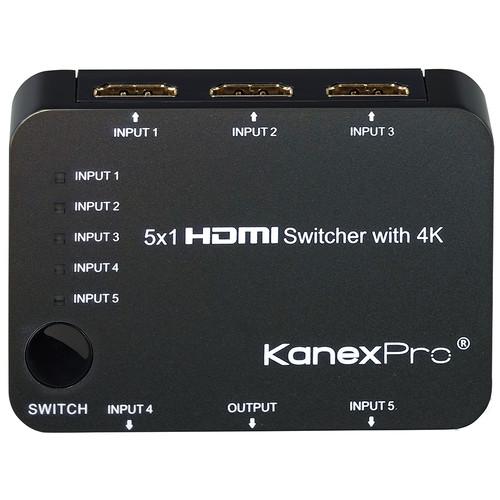

User Manual for KanexPro 5x1 HDMI Switcher with 4K Support Click to enlarge the picture
Contents of the user manual for the KanexPro 5x1 HDMI Switcher with 4K
- Product category: Routers & Switchers KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Routers & Switchers
|
User manual for the KanexPro 5x1 HDMI Switcher with 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description Highly compact, featuring a quick-access "switch" button and corresponding LED indicators, and supporting up to UltraHD 4K resolution, the KanexPro 5x1 HDMI Switcher is a minimalist, trendy, user-friendly device for the home, office, or retail establishment. Connect cable boxes, Blu-ray players, game consoles, and other HDMI sources to your 4K TV, HDTV, or projector and toggle your sources rapidly using the switch button or the included remote control.
One of the distinguishing features of this switcher is that it has ultra low power consumption and doesn't require an external power supply. It is simply powered off any one of your connected HDMI sources. In rare cases when your HDMI source consumes an unusually high amount of power, you can power the switcher by connecting it to your PC using an included USB to barrel connector cable.
The switcher supports high-quality video and audio, including Deep Color, HD lossless audio formats, and Lip Sync. It is HDCP compliant for compatibility with HDCP protected devices, like most cable boxes, and it features EDID support for compatibility with most displays. - Key Features
-
- Supports resolutions up to UltraHD 4K at 30 Hz
- 3D format support
- Ultra low power consumption; no power supply required
- Front panel or remote control switching
- Supports uncompressed audio, such as LPCM
- Supports compressed audio, such as DTS Digital, DTS-HD Master Audio 7.1-Ch, and Dolby True HD
- Front-panel LED indicators
- Remote control included
- USB to barrel connector cable included for powering off of computer
- HDCP compliant
- EDID support
UPC: 813982020016 In the Box KanexPro 5x1 HDMI Switcher with 4K Support 5V USB to DC Barrel Connector Cable IR Remote Control IR Receiver Cable Operation Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 5x1 HDMI Switcher with 4K Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro SW-HD5X14K Specs | Inputs | 5x HDMI 1.4a
1x IR emitter port | | Output | 1x HDMI 1.4a | | Input DDC Signal | 5 V p-p (TTL) | | Vertical Frequency Range | 50/60 Hz | | Video Amplifier Bandwidth | 2.95 Gbps per channel | | Resolutions Supported | 480i/p at 50/60 Hz, 576i/p at 50/60 Hz, 720p at 50/60 Hz, 1080i/p at 50/60 Hz, UltraHD 4K at 30 Hz | | 3D Support | Yes | | Audio Supported | Uncompressed audio (such as LPCM)
Compressed audio (such as DTS Digital, DTS-HD Master Audio 7.1-Ch, and Dolby True HD) | | HDCP Compliant | Yes | | Power Requirements | Power Consumption: | | Power Consumption | 0.2 W | | External Power Supply | 5 VDC @ 2 A (via included USB to DC barrel connector cable) | | Regulatory Approvals | FCC, Ce, UL (Converter and USB to DC barrel connector cable) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 3 x 2 x 1.7" (7.6 x 5.1 x 4.3 cm) | | Weight | 1.8 oz (51 g) | | | | Package Weight | 0.46 lb | | Box Dimensions (LxWxH) | 4.75 x 4.25 x 2.55" |
