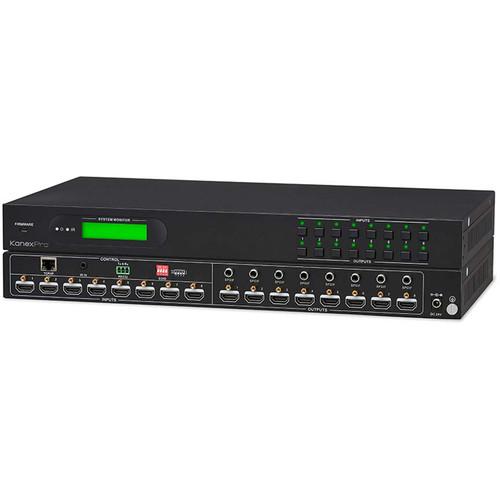

User Manual for KanexPro 8x8 HDMI 4K Matrix Switcher Click to enlarge the picture
Contents of the user manual for the KanexPro 8x8 HDMI 4K Matrix Switcher
- Product category: Routers & Switchers KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Routers & Switchers
|
User manual for the KanexPro 8x8 HDMI 4K Matrix Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The 8x8 HDMI 4K Matrix Switcher from KanexPro is an 8-input, 8-output HDMI matrix with HDCP 2.2 and HDMI 2.0 specifications, supporting UHD resolutions up to 4K at 60 Hz. With switching speeds of less than 0.2 seconds, it provides eight additional audio ports via S/PDIF connectors to support audio de-embedding from HDMI. You can control it via RS-232, IR and Web-based GUI using Ethernet where end-users can switch, control, and manage the matrix using graphical and visual indicators right from the computer or touch-panel.
The built-in HDCP management technology analyzes HDCP key authentication and realizes a handshake internally. The 1920 x 1200 resolution is standard for this switcher. The built-in EDID/DDC database can analyze EDID and DDC signals, mix them, and realize the handshake internally. - Supports CEC via infrared data pass-through
- Cross-switch 8 x HDMI inputs to 8 x HDMI outputs with 4K at 60 Hz
- Eight independent S/PDIF audio for audio de-embedding from HDMI
- Distributes 4K x 2K at 60 Hz signal up to 49.2'
- Supports standard 1080p and WUXGA resolutions up to 2560 x 1080 at 60 Hz
- Smart EDID DIP switch for proper display output
- Supports Dolby Digital, DTS, DTS-HD
- Control through front-panel keys, IR, RS-232, and Web-based GUI
- Front-panel LCD screen provides real-time I/O connection status
- Expedient firmware upgrade through micro-USB port
- 1 RU (19") rack-mountable aluminum enclosure
- Universal RS-232 code compatible with any third-party control systems
- Locking HDMI and power supply
- Universal power supply for worldwide compatibility
UPC: 813982021396 In the Box KanexPro 8x8 HDMI 4K Matrix Switcher RS-232 Cable (3-Pin to DB9) IR Remote Mounting Hardware 4 x Plastic Cushions IR Receiver Power Adapter (24 VDC, 2.71A) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 8x8 HDMI 4K Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDMX88-18G Specs | | | Input | 8 x HDMI | | Input Connector | Female type A HDMI | | Input Level | T.M.D.S. 2.9 V / 3.3 V | | Input Impedance | 75 Ohms | | Output | 8 x HDMI | | Output Connector | Female type A HDMI
8 x SPDIF RCA connector | | Output Level | T.M.D.S. 2.9 V / 3.3 V | | Output Impedance | 75 Ohms | | Gain | 0 dB | | Bandwidth | 18 Gb/s | | Video Signal | HDMI | | Maximum Pixel Clock | 165 MHz | | Supported Resolutions | 4K: 4096 x 2160 (30, 50, 60 Hz); 3840 x 2160 (24, 25, 30, 50, 60 Hz)
21:9: 2560 x 1080 (60 Hz)
16:9: 1920 x 1080(1080p 3D), 1600 x 900, 1366 x 768, 1280 x 720, 1024 x 576 (60 Hz)
16:10: 1920 x 1200, 1680 x 1050, 1440 x 900, 1360 x 768, 1280 x 800 (60 Hz)
4:3: 1600 x 1200, 1400 x 1050, 1280 x 1204, 1024 x 768, 800 x 600, 640 x 480 (60 Hz) | | Switching Speed | 200 ns maximum (0-2 seconds) | | | | Digital Audio Output | Supports HDMI audio transmitted through the RGB and Y, Cr, Cb lines, actively buffered
Supports de-embedded SPDIF audio via digital coaxial output | | | | Serial Control | RS-232, 9-pin female D connector | | Pin Configurations | 2 = TX, 3 = RX, 5 = GND | | IR Remote | Default | | Front Panel Control | Buttons | | Ethernet | RJ45: TCP/IP control via Ethernet controller and Web-based GUI | | | | Power Supply | 24 VDC, 2.5 A | | Power Consumption | Full Load: 32 W
Standby: 2.2 W | | Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 10 to 90% | | Dimensions | 19 x 1.7 x 9.3" (48.3 x 4.3 x 23.6 cm)
(1 RU, full-rack wide) | | Weight | 4.3 lb (2 kg) | | | | Package Weight | 12.8 lb | | Box Dimensions (LxWxH) | 21.2 x 13.4 x 5.8" |
