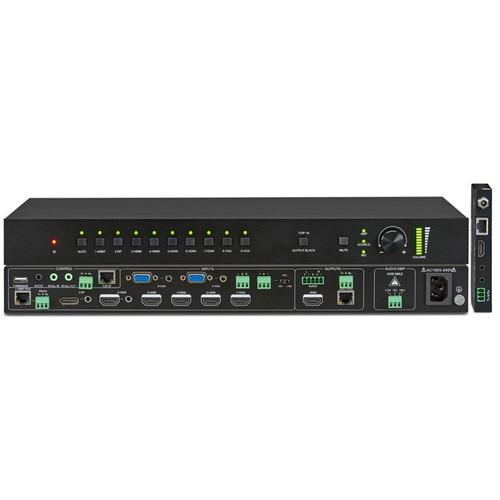

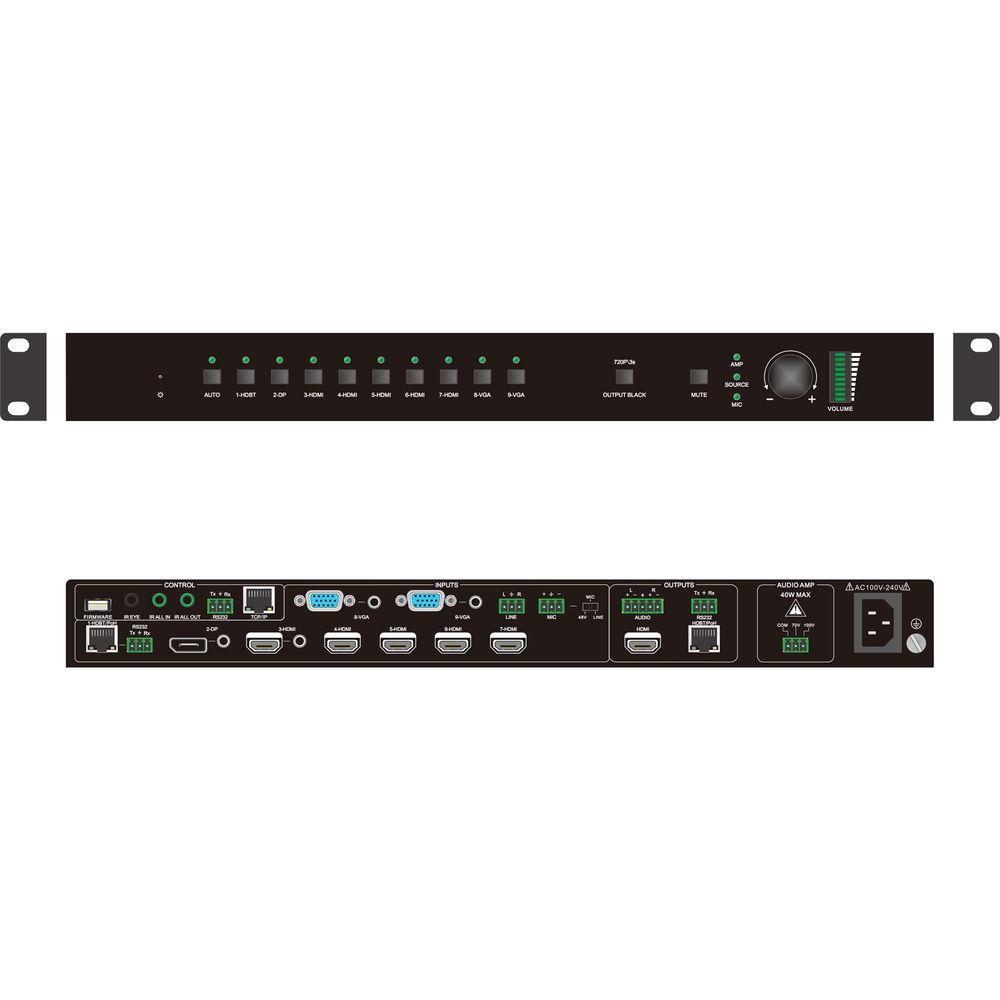

Product description The 1 RU 9-Input Scaler & Switcher from KanexPro features true 4K input and output resolutions up to 3840 x 2160p. The nine inputs include five HDMI, two VGA, one DisplayPort, and one HDBaseT with PoH. Two simultaneous mirrored outputs over HDBaseT and HDMI can be up-scaled or down-scaled to get desired video resolutions with audio and microphone function.

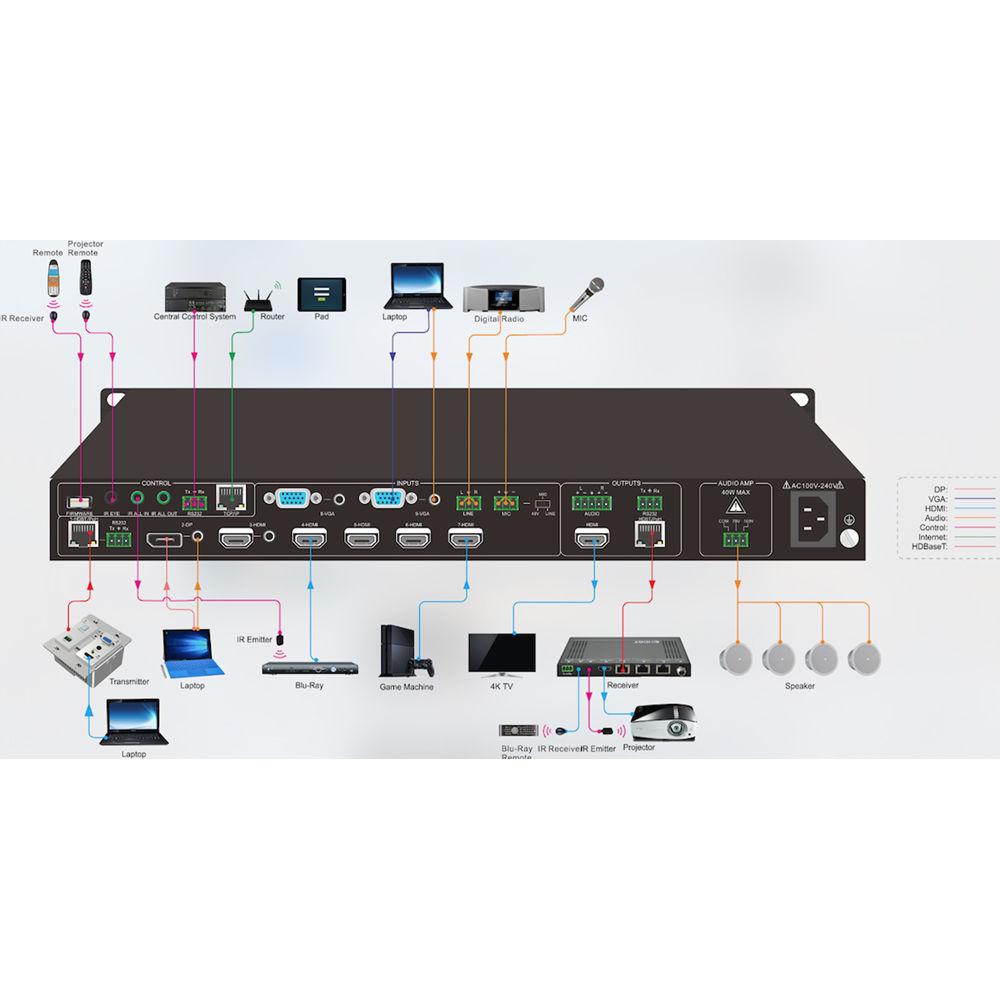

The switcher offers one HDBaseT input, which extends up to 230', and one HDBaseT output extending 1080p/60 up to 328' or 4K x 2K up to 230'. Fully compliant with HDCP 2.2, this switcher can be used as a multi-format video scaling engine to support easy to use switching and scaling from devices like laptops, tablets, and DisplayPort based computers as well as analog VGA formats. Also included is one HDBaseT receiver for connecting to the display. The switcher can be controlled with built-in web GUI or any third-party control system.
This product is ideal for classrooms, conference rooms, huddle rooms and other collaborative spaces where digital and analog sources need to be scaled, switched and extended over HDBaseT. - Supports PoH (Power over HDBaseT) no external power supply necessary to power sender or receiver
- Compliant with HDMI 2.0 and HDCP 2.2
- Built-in 40W amplifier for speaker systems
- Support Line level and Microphone audio inputs
- Microphone port supports balanced/unbalanced signal and suppresses external noise effectively
- Front panel buttons, IR, RS-232 and Ethernet control
- Bidirectional IR & RS-232 pass-through
- Built-in control and switching Web interface
UPC: 813982021563 In the Box KanexPro 9-Input Scaler & Switcher with 4K HDBaseT Input/Output (1 RU) TPUH421R HDBaseT Receiver IR Remote Control 2 x 3-Pin to 9-Pin Sub-D RS-232 Cables IR Receiver IR Emitter 6 x 3-Pin Phoenix Connectors 5-Pin Phoenix Connector Power Cord 2 x Set of Rack Mounting Ears with Screws & Plastic Cushions Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro 9-Input Scaler & Switcher with 4K HDBaseT Input Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro SW-HDSC914K Specs | | | Inputs | 5 x HDMI type A
1 x RJ45, HDBaseT
1 x DisplayPort female
2 x 15-pin Sub-D female VGA | | Outputs | 1 x HDMI type A
1 x RJ45, HDBaseT (PoH) | | Output Resolution | 1280 x 720 (default), 1920 x 1080, 1024 x 768
3840 x 2160 @ 30 Hz, 3840 x 2160 @ 60 Hz | | Standards | Input Video Support: HDMI 2.0 & HDCP 2.2
Output Video Support: HDMI 2.0 & HDCP 1.4 | | | | Inputs | 1 x 3.5 mm stereo jack audio, DP
1 x 3.5 mm stereo jack audio, HDMI
2 x 3.5 mm stereo jack audio, VGA
3 x 3-pin phoenix, Line audio
1 x 3-pin phoenix, Microphone audio | | Input Impedance | >10 kOhms | | Outputs | 1 x 5-pin phoenix, dual-mono analog audio
1 x 3-pin phoenix, power amplifier with fixed voltage | | Output Impedance | 70 Ohms | | Frequency Response | 20 Hz to 20 kHz | | Stereo Channel Separation | >80 dB @ 1 kHz | | | | Ports | 1 x USB Type-A, firmware port
1 x 3.5 mm mini jack, IR eye
1 x 3.5 mm mini jack, IR All inputs
1 x 3.5 mm mini jack, IR All outputs
3 x 3-pin phoenix, RS-232
1 x RJ45, TCP/IP | | | | Transmission Distance | HDBaseT Input: 1080p: 230' / 70 m, 4K x 2K: 131' / 40 m
HDBaseT Output: 1080p: 328' / 100 m, 4K x 2K: 230' / 70 m | | Power Requirements | 100 to 240 VAC | | Power Consumption | 45 W Maximum | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 131°F / -10 to 55°C | | Relative Humidity | 10 to 90% | | Dimensions | Switcher: 17.0 x 1.7 x 11.0" / 43.2 x 4.3 x 27.9 cm
Receiver: 3.8 x 3.7 x 0.93" / 9.9 x 9.4 x 2.4 cm | | Weight | 7 lb / 3.2 kg | | | | Package Weight | 11.11 lb | | Box Dimensions (LxWxH) | 22.2 x 15.3 x 5.4" |
