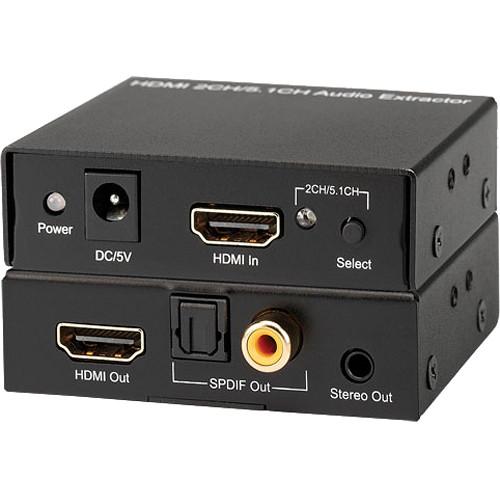

User Manual for KanexPro Audio De-Embedder with HDMI Video Output Click to enlarge the picture
Contents of the user manual for the KanexPro Audio De-Embedder with HDMI Video
- Product category: Embedders & De-Embedders KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Embedders & De-Embedders
|
User manual for the KanexPro Audio De-Embedder with HDMI Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The KanexPro Audio De-Embedder with HDMI Video Output extracts the audio signal from an HDMI input and outputs it through a TOSLINK, Coax, or stereo output so the signal can independently be routed to a sound system. At the same time, all three signals of the HDMI input -- video, audio, and data -- get output through an HDMI output. The HDMI input supports resolutions up to 1080p/60 and computer resolutions up to 1920 x 1200.
The TOSLINK and Coax outputs are both SPDIF digital outputs that support 5.1 channels of surround sound audio, as long as the input has 5.1 channels. The stereo output is a two-channel output. A selection button lets you choose whether to output by the SPDIF outs or the stereo out. If you choose SPDIF, and you have output cables connected to both SPDIF outs, the De-Embedder will automatically output over TOSLINK. So if you'll want to output by Coax, just make sure that only the Coax output has a cable in it. -
- Extracts audio from an HDMI input
- Outputs extracted signal independently (to a sound system)
- Outputs through a TOSLINK, Coax, or stereo output
- At the same time, outputs the full HDMI input through an HDMI output
- Support 5.1 channels of surround sound audio
- Supports resolutions up to 1080p/60
UPC: 814556014721 In the Box KanexPro Audio De-Embedder with HDMI Video Output Power Supply 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro Audio De-Embedder with HDMI Video Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HAECOAX Specs | Input | 1x HDMI | | Output | 1x TOSLINK SPDIF (supports 5.1 channels of audio)
1x Coaxial SPDIF (supports 5.1 channels of audio)
1X Stereo (two channels of audio)
1x HDMI | | Vertical Frequency Range | 50/60 Hz | | Video Amplifier Bandwidth | 6.75 Gbps total bandwidth | | Resolutions | HDTV
Progressive (50 & 60 Hz):
480p
576p
720p
1080p
Interlaced (50 & 60 Hz):
480i
576i
1080i
Computer
Up to 1920 x 1200 | | Power | 5 VDC @2A via included power supply | | Power Consumption | 2 W max | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | 32 to 176°F (10 to 80°C) | | Operating Humidity | -10 to 80% RH (no condensation) | | Storage Humidity | 5 to 90% RH (no condensation) | | Approvals | FCC, CE, UL | | | | Package Weight | 1.025 lb | | Box Dimensions (LxWxH) | 6.9 x 5.0 x 2.35" |
