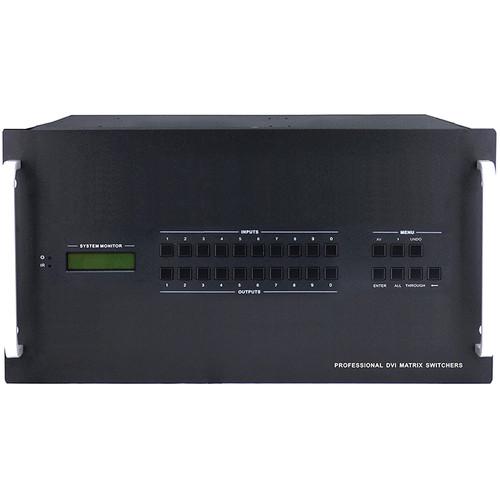

User Manual for KanexPro DVI 32X32 Matrix Switcher with RS-232 Click to enlarge the picture
Contents of the user manual for the KanexPro DVI 32X32 Matrix Switcher with
- Product category: Routers & Switchers KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Routers & Switchers
|
User manual for the KanexPro DVI 32X32 Matrix Switcher with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The KanexPro DVI 32X32 Matrix Switcher with RS-232 is a high performance, digital matrix switcher engineered to route DVI or HDMI signals from 32 DVI inputs to 32 DVI outputs. The unit provides full HDCP internal management for compatibility and integration with commercial A/V devices. The switcher maintains resolutions up to 1920x1200 and 1080p, with 3D pass-through support and full cross point switching.
The matrix supports smart EDID management for rapid integration of sources and displays. Fully controllable through RS-232 commands, IR remote, and front-panel buttons, this switcher includes 10-global presets for I/O configurations which allows saving and recalling via the front-panel, IR, or through serial control at any time.
The KanexPro HDMI 32x32 matrix switcher is ideal for a variety of commercial applications such as military, medical, and government environments where swift, reliable switching and distribution of high-resolution DVI/HDMI signals is critical to meet pixel-by-pixel needs.
Note: This DVI matrix does not support audio or have audio inputs or outputs. -
- Fast-switch up to 32x DVI sources to 32x DVI displays
- Supports bandwidth up to 10.2 Gbps
- Smart EDID & HDCP internal management
- HDCP 1.3 complaint
- Built-in re-clock technology for signal compensation
- 10 Presets for save & recall
- Supports 3D pass-through
- Supports Full HD 1080p (1920x1080 at 60Hz)
- Computer resolutions up to WUXGA (1920x1200 at 60Hz)
- Supports DDC transmission
- CEC protocol pass-through
- Front-panel system monitor for signal and matrix I/O routing
- Control through, IR, RS-232, and front-panel buttons
- Optional Ethernet / Aux port
- 5U rack style aluminum enclosure
- Redundant Internal Universal power for worldwide compatibility (100Volt-240Volt AC, 50/60Hz)
UPC: 814556015957 In the Box KanexPro DVI 32X32 Matrix Switcher with RS-232 Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro DVI 32X32 Matrix Switcher with RS-232 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro MXDV3232A Specs | | | Inputs | 32 x DVI | | Level | T.M.D.S. 2.9 V / 3.3 V | | Impedance | 75 Ω | | HDMI Support | Supports HDMI 1.4a | | | | Outputs | 32 x DVI | | Level | T.M.D.S. 2.9 V / 3.3 V | | Impedance | 75 Ω | | HDMI Support | Supports HDMI 1.4a | | | | Gain | 0 dB | | Bandwidth | 6.75 Gbps | | Video Signal | DVI-D / DVI-I / HDMI | | Maximum Pixel Clock | 165 MHz | | Max. Resolution Support | Up to 1920x1200 or 1080p @ 60 Hz | | Consumer Electronics Control | Supports CEC wired infrared data pass-through using the HDMI 1.4a standard | | EDID and DDC Management | Supports Extended Display Identification Data (EDID) and Display Data Channel (DDC) data using DVI and HDMI standards. EDID and DDC signals are actively bufferred. The built-in EDID/DDC database can analyze these two signals, mix them, and realize the handshake internally | | HDCP Management | Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI 1.4a standards. The built-in HDCP management technology can analyze HDCP key authentication, and realize handshake internally | | | | Serial Control | RS-232, 9-pin female D connector | | IR Remote | Default IR remote | | Pin Configurations | 2 = TX
3 = RX
5 = GND | | Front Panel Control | Buttons | | Optional | TCP/IP control by KanexPro TCPRS2 Ethernet Controller | | | | Power Supply | 100 to 240 VAC, 50/60 Hz, 200 W
Redundant power supply included | | Power Consumption | 25 W | | Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 10 to 90% | | Rack Height | 5U | | Dimensions (W x H x D) | 19.00 x 8.60 x 9.25" (48.26 x 21.84 x 23.50 cm) | | Weight | 22 lb (10 kg) |
