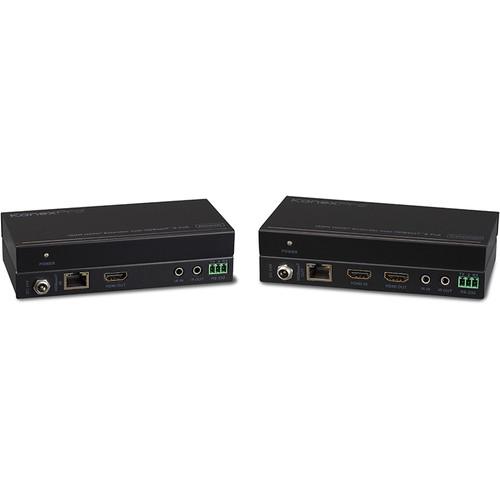

Product description Supporting HDMI signals over category cable, the KanexPro EXT-HDBT150M HDMI over HDBaseT Extender Set with Loop Out enables extending transmission of HD signals to up to 492'. It is well suited for use in digital signage applications, as well as for sending HDMI signals in healthcare AV facilities, control rooms, educational facilities, airports, and even in home theater installations. This unit consists of both the transmitter and receiver and it supports HD video. Following the HDBaseT protocol allows the transmitter and receiver to support PoH (Power over HDBaseT), which allows you to power both transmitter and receiver using only the one included power supply.
The EXT-HDBT150M transmitter/receiver is compliant with HDCP 1.4 and EDID enabling it to support HDMI content. 225 MHz of bandwidth allows it to easily support signals up to 1080p 60 Hz, at distances up to 492'. The pair supports bidirectional RS-232 and IR control. They are Dolby TrueHD and DTS Master Audio ready and supports LPCM Audio. They also feature LED indicator lights for power, signal (link), and HDCP. Included with the pair are an IR Emitter Cable, an IR receiver cable, and a power supply. - Used to extend transmission distances for HDMI signals up to 492' over a single Cat 5e/6 cable.
- It supports control over RS-232 and IR
- The pair includes both an IR emitter and receiver cable. This allows you to control a device at the receiver end of the cable run from the transmitter
- Receiver can be powered directly by a power supply, or by Power over HDBaseT from the transmitter
- HDCP 1.4 and EDID compliant
UPC: 813982021518 In the Box KanexPro EXT-HDBT150M HDMI over HDBaseT Extender Set with Loop Out (492') Wideband IR Receiver Cable Wideband IR Emitter Cable Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro EXT-HDBT150M HDMI over HDBaseT Extender Set with Loop Out in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro EXT-HDBT150M Specs | Chassis | Metal enclosure | | Interface | Transmitter Input
HDMI: 1 x type A
Transmitter Output
HDMI: 1 x type A (for loop or local output)
HDBaseT: 1 x RJ45
Transmitter Control Ports
RS-232: 3-pin captive screw connector
IR: 3.5 mm stereo jack
Receiver Input
HDBaseT: 1 x RJ45
Receiver Output
HDMI: 1 x type A
Receiver Control Ports
RS-232: 3-pin captive screw connector
IR: 3.5 mm stereo jack | | Video Signal | Input
HDMI 1.4
Output
Digital audio transmitted through HDMI audio | | Audio Signal | Digital audio transmitted through HDMI audio | | Resolutions | 1080p 60(max) | | Color Space | RGB 4:4:4
YUV 4:4:4
YUV 4:2:2 | | Bit Depth | Color: 8-bit | | Transmission Mode | HDBaseT | | Transmission Distance | 492' / 149.96 m | | Bandwidth | 225 MHz/channel | | HDMI Standards | HDMI 1.4
HDCP 1.4 | | HDMI Audio | LPCM 2/5.1/7.1 channel, Dolby Digital
DTS 5.1, Dobly Digital+, Dolby True HD
DTS-HD Master Audio
Dolby Atmos
DTS:X | | Power Consumption | 6 W | | Power Supply | Input: 100 to 240 VAC, 50/60 Hz
Output: 24 VDC, 1 A | | Environmental | Operating: 32 to 140°F / 0 to 60°C
Storage: -4 to 140°F / -20 to 60°C
Relative Humidity: 20 to 90% (non condensing) | | Mechanical | ESD Protection: Human Body Model
±8 kV (air-gap discharge)
±4 kV | | Dimensions | 5.51 x 2.55 x 0.7" / 14 x 6.48 x 1.78 cm (each) | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 2.1 lb | | Box Dimensions (LxWxH) | 6.9 x 6.8 x 2.6" |
