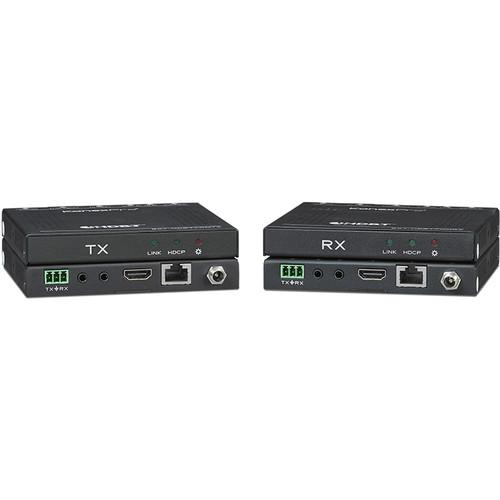

User Manual for KanexPro EXT-HDBT70M UltraSlim 4K 30 HDMI over HDBaseT Extender Set Click to enlarge the picture
Contents of the user manual for the KanexPro EXT-HDBT70M UltraSlim 4K 30 HDMI
- Product category: Video Extenders & Repeaters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Video Extenders & Repeaters
|
User manual for the KanexPro EXT-HDBT70M UltraSlim 4K 30 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description Supporting HDMI signals to be sent over category cable, the KanexPro EXT-HDBT70M UltraSlim UHD 4K/60 HDMI over HDBaseT Extender Set enables extending transmission of HD signals to up to 230' and UHD 4K up to 131'. It is well suited for use in digital signage applications, as well as for sending HDMI signals in healthcare AV facilities, control rooms, educational facilities, airports, and even in home theater installations. This unit consists of both the transmitter and receiver and supports HD and UHD 4K signals. Following the HDBaseT protocol allows the transmitter and receiver to support PoH (Power over HDBaseT), which allows you to power both transmitter and receiver using only the one included power supply.
The EXT-HDBT70M transmitter/receiver is compliant with HDCP 2.2 and EDID enabling it support HDMI content. 10.2 Gbps of bandwidth allows it to easily support signals up to UHD 4K 30 Hz, at distances up to 131'. The pair supports CEC (Consumer Electronics Control), bidirectional RS-232 and IR control. They are Dolby TrueHD and DTS Master Audio ready and supports LPCM Audio. They also feature LED indicator lights for power, signal (link), and HDCP. Included with the pair are mounting ears and screws, an RS-232 cable, an IR receiver, and a power supply. - Used to extend transmission distances for HDMI signals to up to 230' over a single Cat 5e/6 cable while UHD signals can be transmitted up to 131'
- It supports control over RS-232 and IR
- Receiver pair includes both an IR emitter and receiver. This allows you to control a device at the receiver end of the cable run from the transmitter
- Receiver can be powered directly by a power supply, or by Power over HDBaseT from the transmitter
- HDCP 2.2 and EDID compliant
UPC: 813982021358 In the Box KanexPro EXT-HDBT70M UltraSlim 4K/30 HDMI over HDBaseT Extender Set (130') 4 x Mounting Ears 8 x Mounting Screws 8 x Plastic Cushions 2 x 3-Pin Phoenix Connector Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro EXT-HDBT70M UltraSlim 4K 30 HDMI over HDBaseT Extender Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro EXT-HDBT70M Specs | Interface | Transmitter Input
HDMI: 1 x type A
Transmitter Output
HDBaseT: 1 x RJ45
Transmitter Control Ports
RS-232: 3-pin captive screw connector
IR: 3.5 mm stereo jack
Receiver Input
HDBaseT: 1 x RJ45
Receiver Output
HDMI: 1 x type A
Receiver Control Ports
RS-232: 3-pin captive screw connector
IR: 3.5 mm stereo jack | | Video Signal | Input
HDMI 1.4
Output
Digital audio transmitted through HDMI audio | | Audio Signal | Digital audio transmitted through HDMI audio | | Resolutions | 800 x 600 to 1920 x 1200
UHD 4K: 30/24 | | Transmission Mode | HDBaseT | | Transmission Distance | HD: 229.66' / 70.00 m
UHD: 131.23' / 40.00 m | | Bandwidth | 10.2 Gbps | | Gain | 0 to 10 dB at 100 MHz | | Differential Phase Error | 310° at 135 MHz-100M | | Signal to Noise Ratio | >70 dB at 100 MHz-100M | | Return Loss | ≤30 dB at 5 kHz | | THD | <0.005% at 1 kHz | | Level & Impedance | Min/Max: <0.3 to 1.45 V p-p
Impedance: 75 Ohms | | HDMI Standards | HDMI 2.0
HDCP 2.2 | | Power Consumption | 14 W | | Power Supply | Input: 100 to 240 VAC, 50/60 Hz
Output: 24 VDC, 1.25 A | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 90% | | Dimensions | 4.53 x 0.64 x 4.29" / 11.50 x 1.62 x 10.90 cm (each) | | Weight | Transmitter: 6.8 oz / 193.0 g
Receiver: 6.9 oz / 196.0 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 7.25 x 6.25 x 6.0" |
