User Manual for KanexPro EXT-HDBT70MRX UltraSlim 4K 30 HDMI over HDBaseT Receiver Click to enlarge the picture
Contents of the user manual for the KanexPro EXT-HDBT70MRX UltraSlim 4K 30 HDMI
- Product category: Video Extenders & Repeaters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Video Extenders & Repeaters
|
User manual for the KanexPro EXT-HDBT70MRX UltraSlim 4K 30 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|

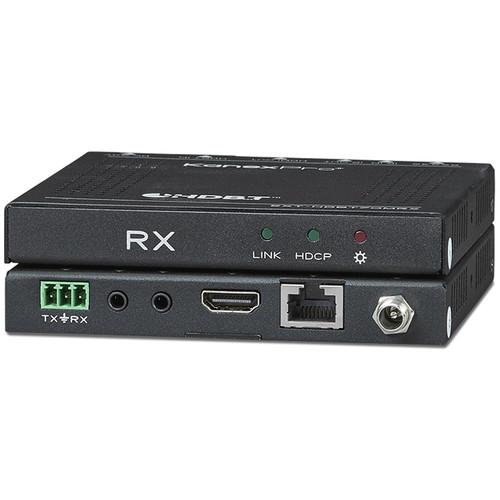

Product description Supporting HDMI signals over category cable, the KanexPro EXT-HDBT70MRX UltraSlim 4K/30 HDMI over HDBaseT Receiver enables extending transmission of HD signals up to 230', and 4K signals up to 131'. It is well suited for use in digital signage applications, as well as sending HDMI signals in healthcare AV facilities, control rooms, educational facilities, airports, and even in home theater installations. This receiver unit works with a transmitter (not included) and supports HD and UHD 4K signals. Following the HDBaseT protocol allows the receiver to support PoH (Power over HDBaseT), which allows you to power this receiver as well as an optional transmitter using only one power supply. Please note that the power supply is included with the transmitter, but not this receiver.
The EXT-HDBT70MRX receiver is compliant with HDCP 2.2 and EDID, enabling support of HDMI content. The 10.2 Gbps bandwidth allows it to support signals up to UHD 4K 30Hz, at distances up to 131'. The receiver supports CEC (Consumer Electronics Control), bidirectional RS-232, and IR control. It is Dolby TrueHD and DTS Master Audio ready and supports LPCM Audio. It features LED indicator lights for power, signal (link), and HDCP. Included with the receiver are mounting ears and screws, an RS-232 cable, and an IR receiver. - Used to extend transmission distances for HDMI signals up to 230' for HD and 131' for 4K signals over a single Cat 5e/6 cable
- It supports control over RS-232 and IR
- The receiver and optional transmitter as a pair include both an IR emitter and receiver. This allows you to control a device at the receiver end of the cable run from the transmitter
- Receiver can be powered directly by a power supply, or by PoH (Power over HDBaseT) from the transmitter (not included)
- HDCP 2.2 and EDID compliant
UPC: 813982021372 In the Box KanexPro EXT-HDBT70MRX UltraSlim 4K/30 HDMI over HDBaseT Receiver (130') 2 x Mounting Ears 4 x Mounting Screws 4 x Plastic Cushions RS-232 Cable IR Receiver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro EXT-HDBT70MRX UltraSlim 4K 30 HDMI over HDBaseT Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro EXT-HDBT70MRX Specs | Interface | Receiver Input
HDBaseT: 1 x RJ45
RS-232: 3-pin captive screw connector
IR: 3.5 mm stereo jack
Receiver Output
HDMI: 1 x Type A
RS-232: 3-pin captive screw connector
IR: 3.5 mm stereo jack | | Resolutions | 640 x 480 at 60 Hz to 4Kx2K at 30 Hz | | Transmission Mode | HDBaseT | | Transmission Distance | HD: 229.66' / 70.00 m
UHD 4K: 131.23' / 40.00 m | | Bandwidth | 10.2 Gbps | | HDMI Standards | HDMI 1.4
HDCP 2.2 | | Impedance | 75 Ohms | | Power Consumption | 14 W (Max) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 90% | | Dimensions | 4.53 x 0.64 x 4.29" / 11.50 x 1.62 x 10.90 cm | | Weight | 6.9 oz / 196 g | | | | Package Weight | 0.965 lb | | Box Dimensions (LxWxH) | 7.4 x 6.3 x 6.0" |
