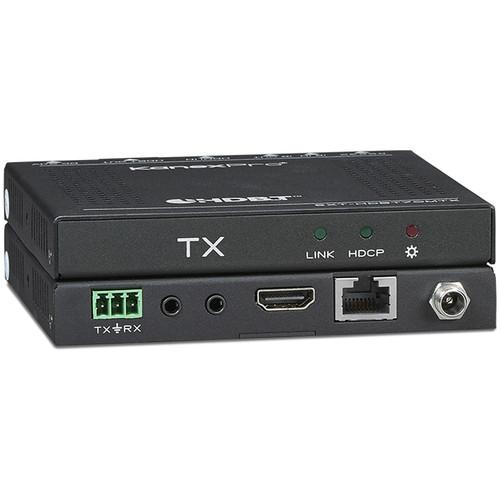

Product description Supporting HDMI signals over category cable, the KanexPro EXT-HDBT70MTX UltraSlim 4K/30 HDMI over HDBaseT Transmitter enables extending transmission of HD signals up to 230'. It is well suited for use in digital signage applications, as well as sending HDMI signals in healthcare AV facilities, control rooms, educational facilities, airports, and even in home theater installations. This transmitter unit works with a receiver (not included) and supports HD and UHD 4K signals. Following the HDBaseT protocol allows the transmitter to support PoH (Power over HDBaseT), which allows you to power the transmitter, as well as an optional receiver using only one power supply.
The EXT-HDBT70MTX transmitter is compliant with HDCP 2.2 and EDID, enabling it to support HDMI content. The 10.2 Gbps bandwidth allows it to easily support signals up to UHD 4K 30 Hz, at distances up to 131'. The transmitter supports CEC (Consumer Electronics Control), bidirectional RS-232, and IR control. It is Dolby TrueHD and DTS Master Audio ready and supports LPCM Audio. It features LED indicator lights for power, signal (link), and HDCP. Included with the transmitter are mounting ears and screws, an RS-232 cable, and an IR receiver. - Used to extend transmission distances for HDMI signals up to 230' over a single Cat 5e/6 cable
- It supports control over RS-232 and IR
- The transmitter and optional receiver as a pair include both an IR emitter and receiver. This allows you to control a device at the receiver end of the cable run from the transmitter
- Receiver can be powered directly by a power supply, or by PoH over HDBaseT from the transmitter (not included)
- HDCP 2.2 and EDID compliant
UPC: 813982021365 In the Box KanexPro EXT-HDBT70MTX UltraSlim 4K/30 HDMI over HDBaseT Transmitter (130') 2 x Mounting Ears 4 x Mounting Screws 4 x Plastic Cushions RS-232 Cable IR Receiver Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro EXT-HDBT70MTX UltraSlim 4K 30 HDMI over HDBaseT Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro EXT-HDBT70MTX Specs | Interface | Transmitter Input
HDMI: 1 x Type A
RS-232: 3-pin captive screw connector
IR: 3.5 mm stereo jack
Transmitter Output
HDBaseT: 1 x RJ45
RS-232: 3-pin captive screw connector
IR: 3.5 mm stereo jack | | Resolutions | 640 x 480 at 60 Hz to 4Kx2K at 30 Hz | | Transmission Mode | HDBaseT | | Bandwidth | 10.2 Gbps | | HDMI Standards | HDMI 1.4
HDCP 2.2 | | Impedance | 75 Ohms | | Power Consumption | 14 W (Max) | | Power Supply | Input: 100-240 VAC, 50/60 Hz
Output: 24 VDC, 1.25 A | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 90% | | Dimensions | 4.53 x 0.64 x 4.29" / 11.5 x 1.62 x 10.9 cm | | Weight | 6.9 oz / 196 g | | | | Package Weight | 1.415 lb | | Box Dimensions (LxWxH) | 7.2 x 6.5 x 5.95" |
