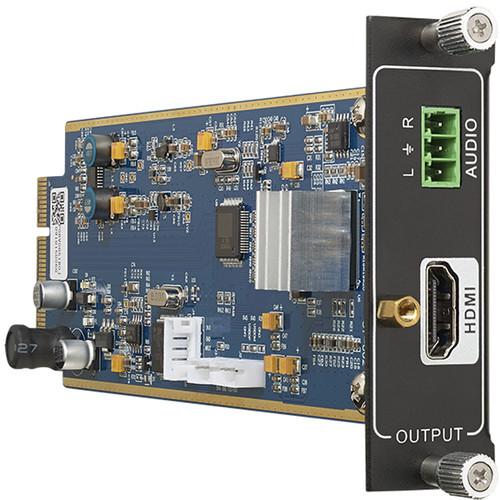

User Manual for KanexPro Flexible One Output 4K HDMI Card with De-Embedded PCM Audio Click to enlarge the picture
Contents of the user manual for the KanexPro Flexible One Output 4K HDMI
- Product category: Router, Switcher & Patchbay Accessories KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Router, Switcher & Patchbay Accessories
|
User manual for the KanexPro Flexible One Output 4K HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The KanexPro Flexible One Output 4K HDMI Card with De-Embedded PCM Audio is designed to work in the FLEX-MMX chassis and outputs via a single HDMI type A connector. The card also outputs PCM audio via a three-pin connector, allowing you to output both picture and sound. The card supports up to UHD 4K, 1920 x 1080p60, as well as computer video up to 1920 x 1200 60 Hz, and it conforms to HDMI, HDCP 1.4, and HDCP 2.2.
The card supports both HDCP (High-bandwidth Digital Content Protection), which is required with protected content, it also supports EDID (Extended Display Identification Data), which enables it to know what resolutions the connected display supports and adjust accordingly. - Ideal for command and control centers, simulation centers, large AV conference rooms that need to display UHD, HD, and PC video with HDMI equipment
- Single one output HDMI (HDCP 1.4 & HDCP 2.2) card
- Stereo analog audio output
- Supported Resolutions up to: UHD 4K, 1920 x 1200 60 Hz, 1080p60
- Plug-and-play, easily fits into the FLEX-MMX series chassis
- Please note that the manufacturer recommends that for compatibility reasons do not combine or use 1080p based SDI, VGA or DVI cards with 4K HDMI & 4K HDBaseT cards on the same matrix chassis. The 4K cards are designed to work only on 4K based system delivering pure 4K resolutions and cannot be combined with any analog or 1080p card system
UPC: 813982020764 In the Box KanexPro Flexible One Output 4K HDMI Card with De-Embedded PCM Audio Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro Flexible One Output 4K HDMI Card with De-Embedded PCM Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro FLEX-OUT-HD4K Specs | Video Standards | HDMI
HDCP 1.4
HDCP 2.2 | | Resolution Support | Output
Auto
UHD 4K
1920 x 1200
1080p
1080i
1280 x 1024
720p
1024 x 768
800 x 600 | | Output | HDMI: 1 x Type A
Analog Audio: 1 x 3-pin terminal block | | Output Audio Format | PCM Stereo | | Power Consumption | 2.7 W | | Switching Speed | < 100 ns | | Environmental | Working Temperature: 32 to 122°F / 0 to 50°C
Reference Humidity: 10 to 90% |
