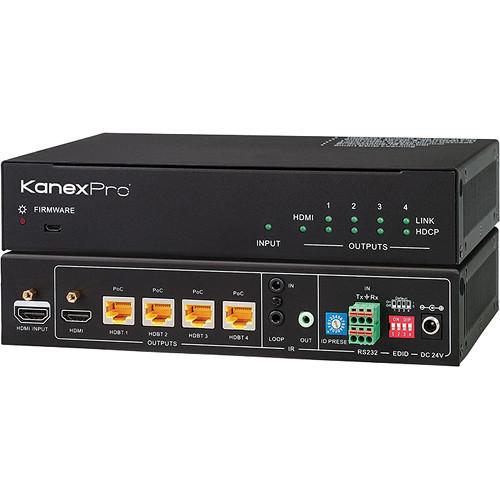

Product description The HDBaseT 1x4 Over CAT6 Splitter from KanexPro is a half-rack width distribution amplifier which distributes one HDMI source signal to four Ultra HD 4K displays over CAT6. The splitter can also be daisy-chained to support up to eight displays.
The splitter is fully HDCP compliant supporting HDTV 1080p/60 and Ultra HD 4K resolutions. It provides EDID management, a local HDMI output, and RS-232 control for 3rd party control systems.
Typical applications include splitting, broadcasting, and digital signage in large scale control centers where HD & 4K signals need to be sent to four or eight displays up to 230' away over shielded CAT6. Note: To reduce video dropout problems from lighting, ceiling fans, and other EMI issues, it is strongly recommended to use shielded CAT5e/CAT6 and use shielded RJ45 connectors with KanexPro splitter products. - Distributes 4K / HDTV signals to four displays up to 230' away over CAT6 STP
- Built-in DIP switch for EDID management
- Bandwidth up to 10.2 Gbps
- Supports computer video up to 1920x1200, including HDTV 1080p/60 & 4K
- Local HDMI output for monitor support
- Daisy-chainable to up to eight displays
- Control via RS-232 & IR loop-in
- Firmware upgradeable via built-in USB
- Rack mountable metal enclosure with rack ears
UPC: 814556017531 In the Box KanexPro HDBaseT 1x4 Over CAT6 Splitter Power Supply Rack Ears Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro HDBaseT 1x4 Over CAT6 Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro SP-HDBT1X4 Specs | EDID | 1080P 2D
1080P 3D
720P 2D
720P 3D
DVI 1920x1080 | | Video Input/Output | VESA and SMPTE 480p to 2160p (4K) with 3D Bit depth: 16, 20, 24 | | Audio Input & Output | All HDMI audio formats including Dolby D (TrueHD), DTS (HD-Master Audio), PCM
Channel Count: From 2-8 (2.0 to 7.1)
Sample Rates: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Power Supply | 24 VDC | | Transmission Range | 230' (70 m) | | Compatibility | HDBASE70POER receiver | | Control | 1 x RS-232, full function pass through
1 x IR, full function pass though
1 x RS-232, port ID selectable for cascading | | Chassis Material | Aluminum | | Installation | Standard rack size
Removable ears for mounting under table or on wall | | Weight | 1.4 lb (650 g) | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 11.8 x 7.6 x 5.1" |
