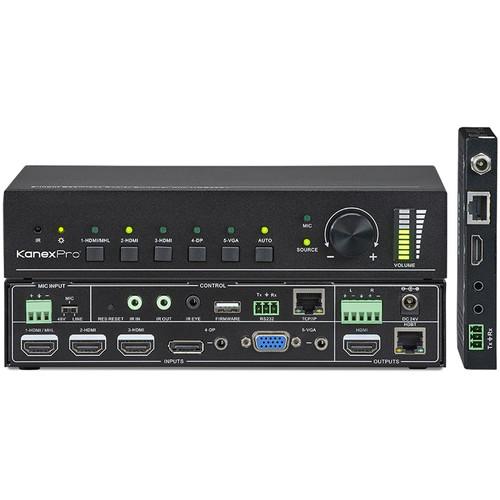

Product description The HDBaseT 5-Input Presentation Switcher and Scaler from KanexPro is equipped with 5 inputs (3 HDMI, 1 DP, and 1 VGA), one local HDMI output, one HDBaseT output designed to switch and scale up to 5 devices to one or more displays (mirrored). It supports instant switching from one device to another with zero latency. Compliant with the HDCP 2.2 specs, this switcher supports CEC commands and EDID management. The switcher's output can be extended with PoH (power over HDBaseT) to up to 230' with the receiver included in the system.
The switcher can be controlled using one IR input, one IR output, and one RS-232 port, where the IR and RS-232 signals can be broadcasted bi-directionally between the scaler-switcher and the HDBaseT receiver. In addition, the switcher can also be controlled with web-based GUI, front panel buttons, RS-232 commands, and IR remote. - Built-in audio de-embedder for HDMI and VGA inputs
- HDCP 2.2 compliant and CEC
- VGA video supports C-video, YPbPr, and VGA
- 48V phantom power for condenser mics
- MIC port supports balanced/unbalanced signal, suppresses external noise effectively
- 3-level Mic input for use with condenser, dynamic, and wireless microphones
- Bi-directional IR & RS232 control
- Controllable via buttons, IR remote, RS-232, and Web-based GUI
UPC: 813982021402 In the Box KanexPro HDBaseT 5-Input Presentation Switcher and Scaler HDBaseT Receiver IR Remote Power Adapter VGA to Component Cable Adapter RS-232 Cable (3-Pin Phoenix to DB9) 2 x 3-Pin Phoenix Connectors 5-Pin Phoenix Connector IR Receiver IR Emitter 2 x Mounting Ears for Switcher 2 x Mounting Ears for HDBaseT Receiver Mounting Hardware Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro HDBaseT 5-Input Presentation Switcher and Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro SW-HDSC51HDBT Specs | | | Video Input | 1 x HDMI/MHL
2 x HDMI
1 x DP
1 x VGA | | Video Input Connectors | 3 x female HDMI
1 x DisplayPort
1 x female VGA (15-pin) | | Input Video Signal | HDMI, DP, VGA, (Component and Composite thru VGA) | | Video Output | 1 x HDMI
1 x HDBaseT | | Video Output Connectors | 1 x female HDMI
1 x RJ45 | | Output Video Signal | HDMI, HDBaseT | | Output Resolution | 1920 x 1200, 1920 x 1080, 1600 x 1200, 1600 x 900, 1360 x 768, 1280 x 800, 1280 x 720, 1024 x 768 | | Standards | Compliant with HDMI 1.4 and HDCP2.2 | | | | Audio Input | 1 x stereo audio input for DP
1 x stereo audio input for VGA
1 x microphone audio | | Audio Input Connectors | 2 x 3.5 mm stereo jacks
1 x 3-pin phoenix connector | | Audio Input Impedance | >10 kOhms | | Audio Output | 1 x dual-mono analog audio | | Audio Output Connector | 1 x 5-pin phoenix connector | | Audio Output Impedance | 70 Ohms | | Frequency Response | 20 Hz to 20 kHz | | Stereo Channel Separation | >80 dB at 1 kHz | | | | Control Port | 1 x IR IN
1 x IR OUT
1 x IR EYE
1 x RS-232
1 x TCP/IP | | Control Connector | 3 x 3.5 mm mini jack
1 x 3-pin phoenix connector
1 x RJ45 | | | | Transmission Distance | 1080p ≤230' (70 m) (Cat6) | | Temperature | 32 to 122° (0 to 50°) | | Humidity | 10 to 90% | | Power Supply | 24 VDC, 2.7 A | | Power Consumption | 27 W | | Dimensions | 8.6 x 1.7 x 6.8" (220 x 44 x 172.5 mm) | | Weight | 28 oz (800 g) |
