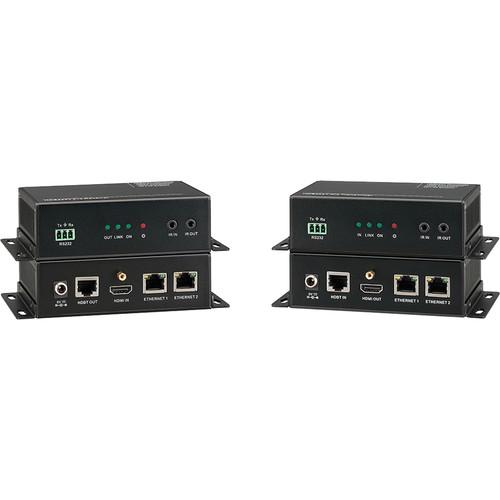

Product description The KanexPro HDBaseT Extender with 2-Port Ethernet Switch consists of a transmitter and receiver unit, and enables you to route high-definition signals up to 330' away over a single CAT6 cable by using HDBaseT technology. This extender features 2 Ethernet ports on each unit, which can be connected to standard network devices such as 100BaseT routers, switchers, and hubs for LAN access.
This extender is designed for use with Apple TV's, Blu-ray players, game consoles, satellite boxes and HDMI based computers that require extension up to 330' connected to an HDTV or projector. This HDBASE100ME extender is fully compliant with HDCP, EDID and DDC channels, and supports resolutions of up to ultra HD 4K, 1080p/60 and 3D.
The transmitter and receiver unit are built in to a metal enclosure with a sturdy finish. They also have locking HDMI and power connectors designed to protect the units from dis-engagement or signal loss. - Extend uncompressed HDMI signals up to 330' away on a single CAT6 cable
- Integrates 2 Ethernet ports for network devices
- Supports resolutions from 1080p/60 @ 48 bit to Ultra HD 4K
- Bandwidth up to 10.2 Gbps
- HDCP, CEC and EDID compliant
- Infrared Signal Input/Output, embedded over extension
- Dolby TrueHD and DTS Master Audio audio support
- Uncompressed audio support such as LPCM
- Front panel LEDs for link activity and HDCP authentication
- Aluminum case with separate mounting ears
UPC: 814556016305 In the Box KanexPro HDBaseT Extender with 2-Port Ethernet Switch (330') IR Kit RS-232 Cable Power Supply Rack Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro HDBaseT Extender with 2-Port Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDBASE100ME Specs | Connectors | Transmitter:
1 x HDMI, female, input
1 x 9-pin Sub-D, RS-232, female
2 x RJ45, Ethernet
1 x RJ45, HDBaseT output
1 x 3.5 mm phone jack, IR input
1 x 3.5 mm phone jack, IR output
1 x barrel power
Receiver:
1 x HDMI, female, output
1 x 9-pin Sub-D, RS-232, female
2 x RJ45, Ethernet
1 x RJ45, HDBaseT input
1 x 3.5 mm phone jack, IR input
1 x 3.5 mm phone jack, IR output
1 x barrel power | | Transmission Method | HDBase-T, synchronous switching mode | | Resolutions | HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 3D, and 4K
Computer: WUXGA 1920 x 1200 | | Gain | 0 to 10 dB @ 100 MHz | | Maximum Transmission Distance | 330' (100 m) | | Differential Phase Error | ± 10° @ 135 Mhz / 330' (100 m) | | Bandwidth | 10.2 Gbps | | Return Loss | <- 30 dB @ 5 kHz | | HDMI Support | HDMI1.4 and HDCP | | Operating Temperature | -4 to 140° F (-20 to 60°C) | | Humidity | 10 to 90% | | Approvals | FCC, CE, and UL | | Voltage Range | 0.3 V to 1.45 V pp, 75 Ω | | Power Supply | 5 VDC, 6.5 W | | Dimensions (W x H x D) | 4.65 x 3.04 x 1.50" (11.80 x 7.72 x 3.80 cm) | | Weight | 1.76 lb (0.8 kg) | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 12.0 x 8.1 x 3.3" |
