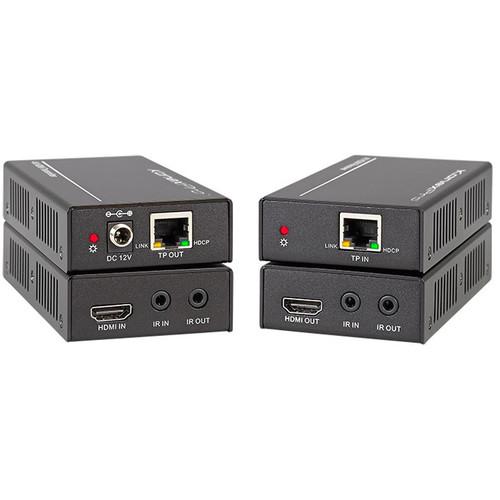

User Manual for KanexPro HDBaseT HDMI Extender Click to enlarge the picture
Contents of the user manual for the KanexPro HDBaseT HDMI Extender
- Product category: Video Extenders & Repeaters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Video Extenders & Repeaters
|
User manual for the KanexPro HDBaseT HDMI Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description Now with the capability to support 4K resolution video, KanexPro's HDBaseT HDMI Extender can extend an HDMI signal over twisted pair cabling over distances up to 330 feet. While increasing the carrying distance, HDBaseT technology doesn't alter the HDMI signal so HDCP and EDID information are passed through. HDBaseT can also carry bi-directional infrared (IR) signals between the transmitter and receiver for device control as well as Power-over-Ethernet (PoE) so only one power supply is required to power both the transmitter and receiver. Because HDBaseT only requires cost-efficient standard category twisted-pair cables (Cat 5e/6), integration is simplified since many buildings are already wired with compatible cabling. Features - Extend HDMI signals up to 330' (100m) on single Cat 5e/6 cable
- Supports Power over Ethernet from Tx or Rx
- Infrared Signal Input/Output, embedded over extension
- High bandwidth up to 10.2 Gbps
- Supports CEC pass-through
- Audio support: Dolby TrueHD & DTS Master Audio, 7.1 compliant
- Uncompressed audio support
- Front-panel LEDs for link activity and HDCP authentication
UPC: 813982020030 In the Box KanexPro HDBaseT HDMI Extender Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro HDBaseT HDMI Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro EXT-HD100MHBT Specs | Interface | Transmitter:
Input: HDMI
Output: HDBaseT (Cat 5e/6)
Receiver
Input: HDBaseT (Cat 5e/6)
Output: HDMI | | Video Amplifier Bandwidth | 10.2 Gbps all channel | | Vertical Frequency Range | 50/60 Hz | | Resolution Support | TV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p, 4K @ 30 / 60 Hz
Computer: WUXGA (1920 x 1200) | | Power Input | 12 VDC @ 2 A | | Power Consumption | 9 W | | Compliance | FCC, CE, UL | | Dimensions | 3.9 x 2.5 x 1" / 100 x 65 x 25.5 mm | | Weight | 6 oz / 170 g | | | | Package Weight | 1.47 lb | | Box Dimensions (LxWxH) | 7.85 x 5.2 x 4.35" |
