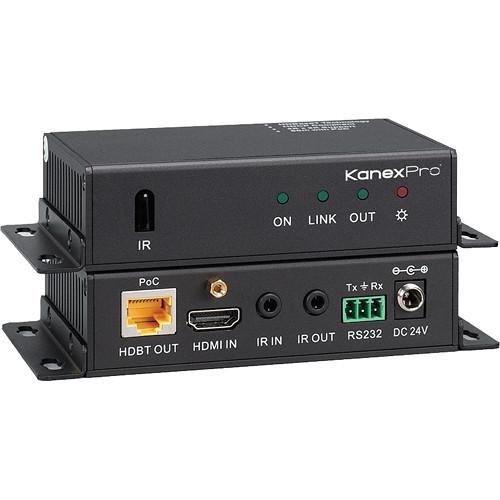

User Manual for KanexPro HDBaseT-Lite HDMI over CAT6 Transmitter Click to enlarge the picture
Contents of the user manual for the KanexPro HDBaseT-Lite HDMI over CAT6 Transmitter
- Product category: Video Extenders & Repeaters KanexPro
- Brand: KanexPro
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for KanexPro Video Extenders & Repeaters
|
User manual for the KanexPro HDBaseT-Lite HDMI over CAT6 Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any KanexPro product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official KanexPro user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a KanexPro product will considerably shorten its lifespan!
|
Product description The HDBaseT-Lite HDMI over CAT6 Transmitter from KanexPro is an HDBaseT-enabled transmitter designed to work with HDMI input devices such as cable boxes and Blu-ray players. The transmitter delivers HD video (up to 4K) and digital audio to a receiver (not included) over a Cat6a cable. This unit is capable of transmitting to distances up to 230' and supports bi-directional IR and RS-232 control. The HDBaseT-Lite transmitter supports Power over Ethernet (PoE) with compliant extenders and sources supporting the 230' HDBaseT-Lite technology. This unit can be paired with HDBaseT based projectors and displays in classrooms, conference rooms, and auditoriums. Note: It is recommendable to use a metal STP connector for RJ-45. The shielded layer of cable must be connected to the connector's metal shell for zero EMI noise and optimal transmission. - Designed for HDBaseT projectors and HDTV's
- Extends HDMI/ DVI signals over single CAT6a cable
- Supports 1080p/60 resolution at 48bit to 4Kx2K
- Bandwidth up to 10.2 Gbps
- Bi-directional RS -232 protocol
- Bi-directional IR control
- LED indicators for signal/work status
- Mountable aluminum enclosure
- Locking HDMI connector and power supply
- External power supply (100V - 240VAC, 50/60 Hz)
UPC: 814556017210 In the Box KanexPro HDBaseT-Lite HDMI over CAT6 Transmitter Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro HDBaseT-Lite HDMI over CAT6 Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersKanexPro HDBASE70POET Specs | Connectors | 1 x HDMI, female, input
1 X IR, input
1 X RS-232, input
1 x RJ45, HDBaseT, output
1 X IR, output
1 X locking barrel, DC power | | Transmission Method | HDBaseT | | Resolution Formats | From 800 x 600 to 1920 x 1200 | | Transmission Range | 230' (70 m) maximum | | Gain | 0 to 10 dB @ 100 MHz | | Differential Phase Error | ± 10° @ 135 MHz, 328' (100 m) | | SNR | > 70 dB @ 100 MHz, 328' (100 m) | | Bandwidth | 10.2 Gbps | | Return Loss | <- 30 dB @ 5 kHz | | THD | < 0.005% @ 1 kHz | | Operating Voltage | < 0.3 V - 1.45 Vp-p (minimum to maximum level) | | Impedance | 75 Ω | | Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 10 to 90% | | Power Supply | 100 - 240 VAC, 50/60 Hz | | Dimensions | 5.2 x 3.0 x 1.2" (13.2 x 7.6 x 3.0 cm) | | Weight | 1.2 lb (0.5 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 7.9 x 5.8 x 2.8" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
