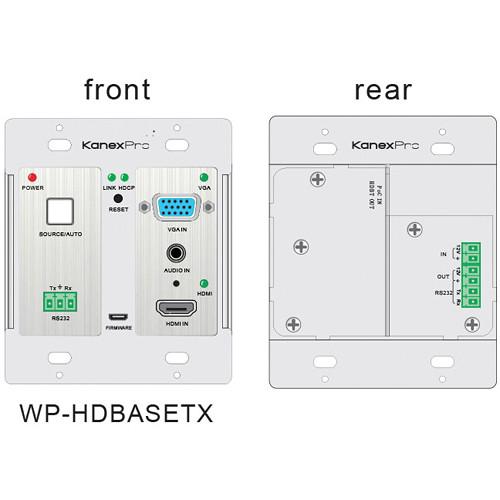

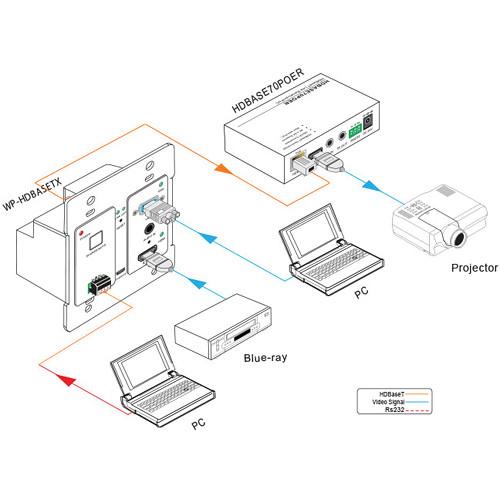

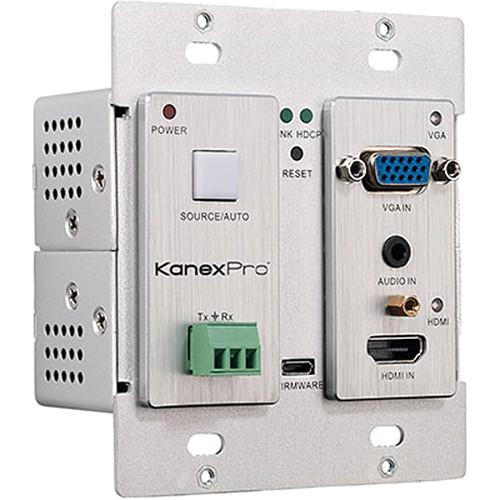

Product description The HDBaseT VGA & HDMI over CAT6 Wall Plate Transmitter from KanexPro is an aluminum-based, Decora style, two-gang wall-mountable transmitter for extending HDMI/VGA signals with stereo audio. HDCP compliant and with EDID built-in, this wall plate transmitter features a maximum transmission range of 197' over CAT6. The wall plate transmitter provides Power over HDBaseT (PoH) to the receiver (sold separately), so no power is needed on the receiving side.
The transmitter wall plate supports HDMI/VGA auto-switching with selectable audio input and resolutions up to 4K. It has a built-in scaling function with various output resolutions between input sources. This wall transmitter is ideal for classrooms, lecture halls, and corporate AV - conference rooms and boardrooms where high-resolution signal distribution is critical. Note: Do not use couplers between the RJ-45/ CAT6 cables to avoid degradation. To reduce video dropout problems from lightings, ceiling fans, and other EMI issues, it is strongly recommended that you terminate shielded STP CAT6 or CAT5e cables and use shielded RJ45 connectors with KanexPro extender products. - Extends HDMI/VGA up to 197'
- Powered over Ethernet or PoH
- Built-in scaler to output resolutions up to 4K
- LEDs for status and USB for firmware update
- High-grade aluminum design
- Decora style two-gang wall plate
- Supports HDMI 1.4, 4K, 3D, and full HD 1080p/60
- Bandwidth up to 10.2 Gbps
UPC: 814556017562 In the Box KanexPro HDBaseT VGA & HDMI over CAT6 Wall Plate Transmitter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the KanexPro HDBaseT VGA & HDMI over CAT6 Wall Plate Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

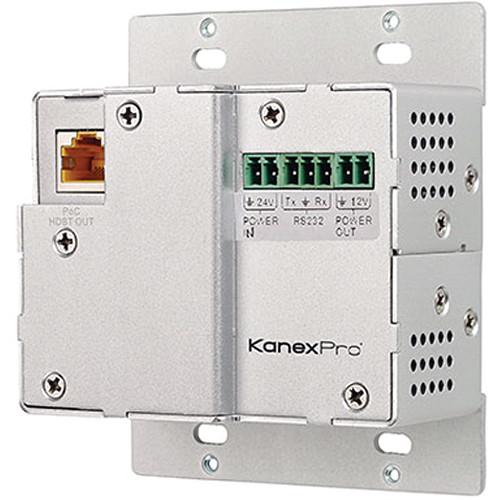

Technical parametersKanexPro WP-HDBASETX Specs | Connectors | 1 x HDMI female, input
1x VGA female, input
1 x 3.5 mm mini-jack audio, input
1 x RS-232, input
1 x RJ-45 HDBaseT, output | | HDMI Video | HDMI 1.4 | | Audio | Digital audio is transmitted through HDMI
VGA audio is transmitted through 3.5 mm stereo jack | | Resolutions Supported | 800x600 to 1920x1200, 3D, 4Kx2K (HDMI) | | Transmission Method | HDBaseT Lite technology | | Transmission Range | 197' (60 m) maximum | | Gain | 0 to 10 dB @ 100 MHz | | Differential Phase Error | ±10° @ 135 MHz, 328' (100 m) | | SNR | > 70 dB @ 100 MHz, 328' (100 m) | | Bandwidth | 10.2. Gbps | | Return Loss | < -30 dB @ 5 kHz | | THD | < 0.005% @ 1 kHz | | Operating Voltage | < 0.3 - 1.45 V p-p (minimum to maximum level) | | Impedance | 75 Ω | | Operating Temperature | -4 to 140°F (-20 to 60°C) | | Humidity Tolerance | 10 - 90% | | Power Supply | 24 VDC | | Power Consumption | 9.6 W | | Chassis | Universal Decora Style 2-Gang Wall plate | | Weight | 1.8 lb (0.8 kg) | | | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 3.0" |
